Startech USB-C Dock, 4K Triple Monitor USB Type-C

Images Manuals

Startech USB-C Dock, 4K Triple Monitor USB Type-C Docking Station with Dual DisplayPort & HDMI, 100W Power Delivery + Charging, USB 3.0/3.1 Gen 1 Hub

Images for illustrative purposes

Startech USB-C Dock, 4K Triple Monitor USB Type-C Docking Station with Dual DisplayPort & HDMI, 100W Power Delivery + Charging, USB 3.0/3.1 Gen 1 Hub

View all STARTECH.COM Docking | Replicator - Visit the STARTECH.COM Store (DK30CH2DEPUE) - (ECE5054569)

Startech USB-C Dock, 4K Triple Monitor USB Type-C Docking Station with Dual DisplayPort & HDMI, 100W Power Delivery + Charging, USB 3.0/3.1 Gen 1 Hub (1x USB-C + 4x USB-A) w/ Ethernet - 100W PD Laptop Dock (DK30CH2DEPUE) - Docking station - USB-C - HDMI,

Enhance Productivity
100W Power Delivery
Powerful Connections
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application

FREE Delivery on orders over €250

8 Available to Ship
Order within 4Hrs 19Mins for: Delivery (11 Aug or 12 Aug)

€149.75 Incl Vat

Price at 30 Day Low

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

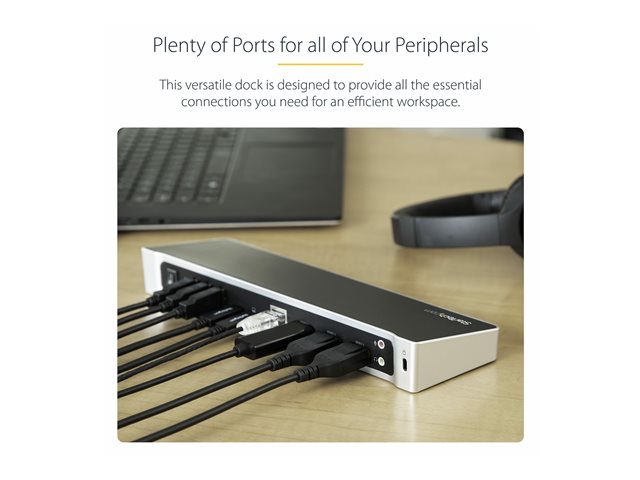

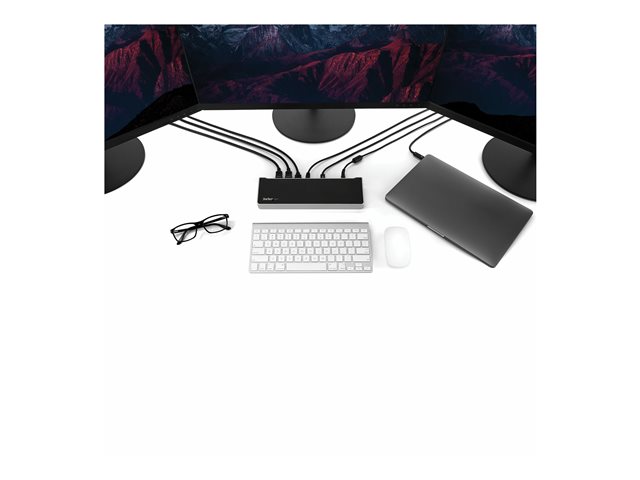

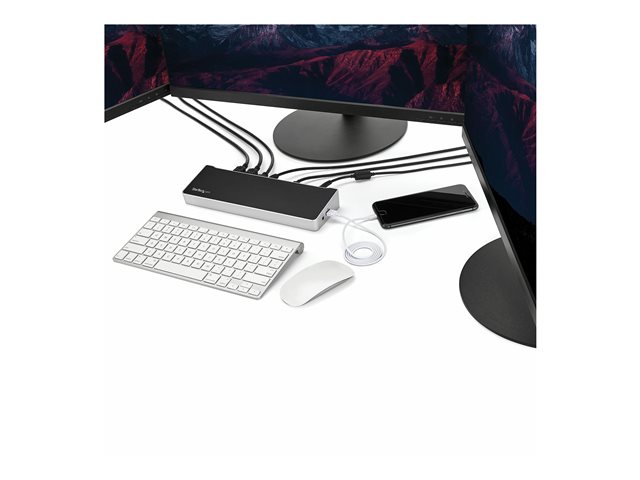

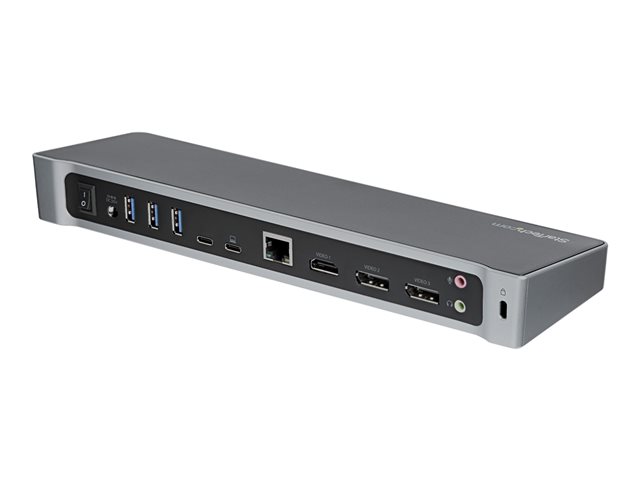

This triple-monitor dock for Mac, Windows & Chrome laptops helps you take productivity to a whole new level. With three 4K video connections, 100W Power Delivery, and 5x USB 3.0 ports, this USB-C dock is perfect for your MacBook, Dell XPS, Chromebook or other USB-C laptop requiring additional ports. Enhance Productivity The 4K USB-C docking station lets you create a three-monitor Ultra HD workstation. Connect: 2x 4K DisplayPort (DisplayLink) at 4096 x 2160 resolution @ 60Hz / 3840 x 2160 @ 60Hz and 1x 4K HDMI (DP Alt Mode) at 4096 x 2160 resolution @ 24Hz / 3840 x 2160 @ 30Hz. For high-resolution applications, the universal laptop docking station connects to a 5K display (5120 x 2880 resolution) at 60Hz, by connecting the two DisplayPort ports to a single 5K display. 100W Power Delivery Using a single cable, the USB-C docking station will power and charge power-hungry laptops, with up to 100W Power Delivery, and power your peripherals with its 150W power adapter. Powerful Connections This triple-monitor docking station lets you transform your laptop into a full-sized workstation. It gives you five USB 3.0 ports (1x USB Type-C and 4x USB Type-A incl. 1x Fast-Charge port), a Gigabit Ethernet port, headset jack, and separate 3.5 mm audio and microphone ports. The TAA compliant DK30CH2DEPUE is backed by a StarTech.com 3-year warranty and free lifetime technical support.

Specification Summary

Product Description

Product Type

Docking station

Docking Interface

USB-C

Video Interfaces

HDMI, DP

Dimensions (WxDxH)

27 cm x 8.2 cm x 3.4 cm

Weight

385 g

Colour

Black, silver

Localisation

United Kingdom, Europe

Networking

Gigabit Ethernet

Power

Power adapter AC 120/230 V 100 Watt Power Provided

TAA Compliant

Yes

Manufacturer Warranty

3-year warranty

Specifications

EAN / GTIN:

0065030880015

General

Product Type

Docking station

Width

27 cm

Depth

8.2 cm

Height

3.4 cm

Weight

385 g

Enclosure Colour

Black, silver

Localisation

United Kingdom, Europe

Networking

Data Link Protocol

Ethernet, Fast Ethernet, Gigabit Ethernet

Compliant Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, USB 1.1, USB 2.0, USB 3.0

Expansion / Connectivity

Interfaces

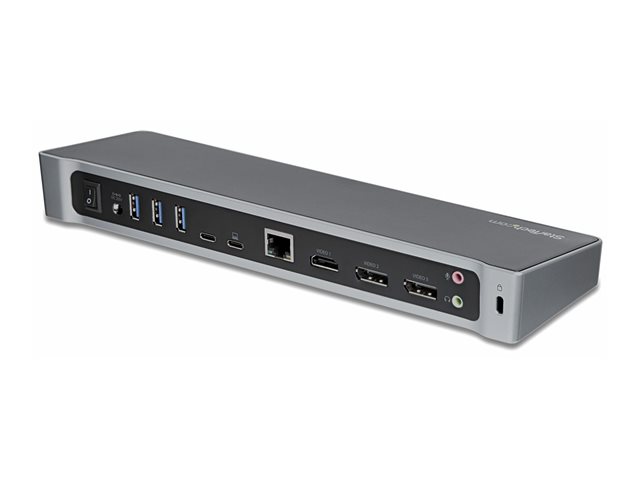

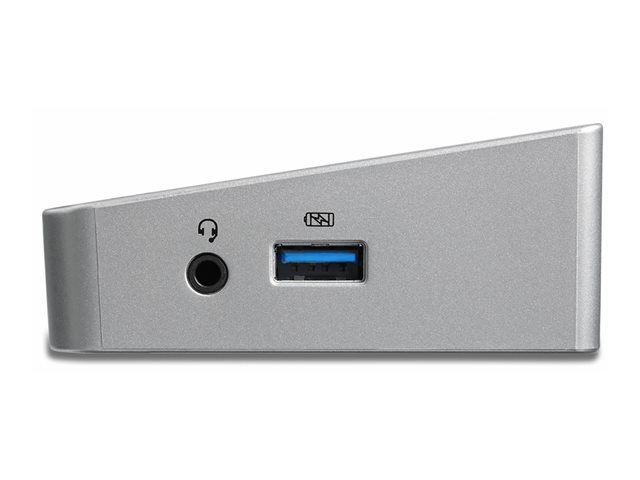

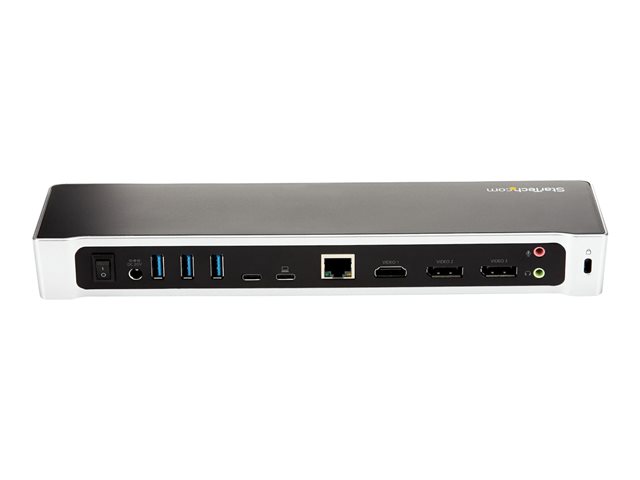

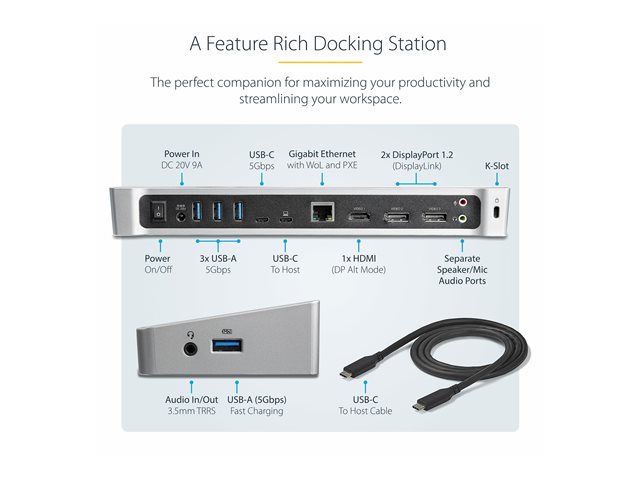

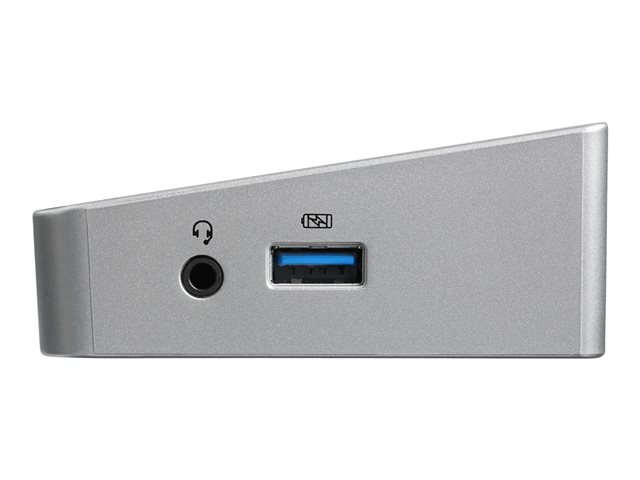

3 x SuperSpeed USB 3.0 - 9 pin USB Type A ¦ 2 x USB-C - 24 pin USB-C ¦ 1 x display / video - HDMI - 19 pin HDMI Type A ¦ 2 x display / video - DisplayPort - 20 pin DisplayPort ¦ 1 x network - 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ 1 x headphones - mini-phone 3.5 mm 4-pole ¦ 1 x microphone - mini-phone 3.5 mm ¦ 1 x speakers - mini-phone 3.5 mm ¦ 1 x SuperSpeed USB 3.0 with Fast Charging - 9 pin USB Type A

Miscellaneous

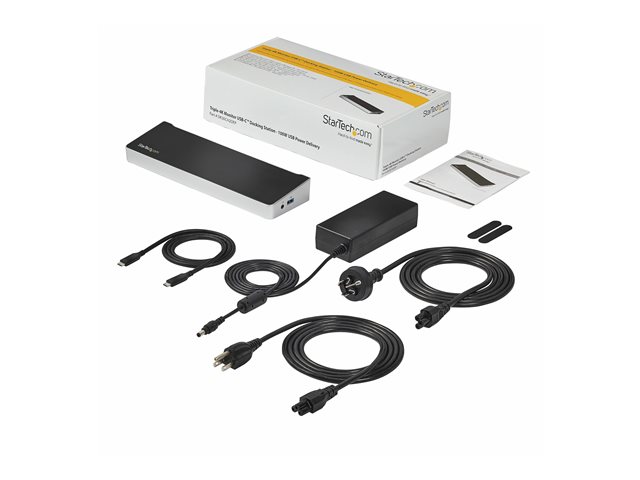

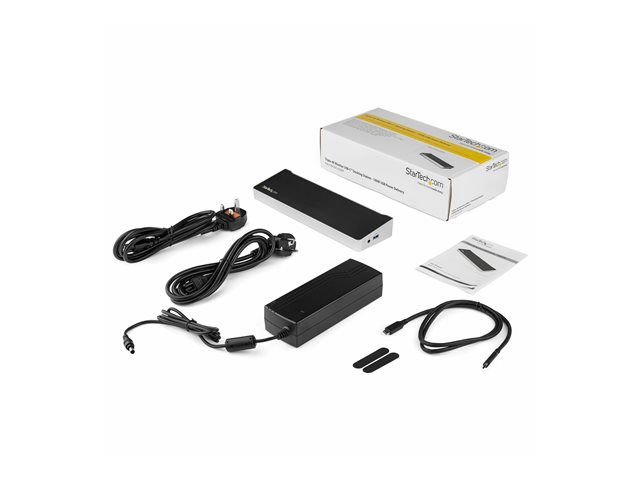

Cables Included

1 x USB-C cable - external

Features

Security lock slot (cable lock sold separately), full duplex support, 100W power delivery, auto MDIX support

Security Slot Type

Kensington security slot

Compliant Standards

FCC, RoHS, WEEE, USB Battery Charging Specification Rev. 1.2, USB Power Delivery 2.0, DisplayPort 1.2, UASP (USB Attached SCSI Protocol)

TAA Compliant

Yes

Power

Power Device

Power adapter

Voltage Required

AC 120/230 V

Power Provided

100 Watt

System Requirements

OS Required

Apple MacOS X 10.9 - 10.12, Google Chrome OS 55 or later, Ubuntu 18.04, Ubuntu 20.04, Apple macOS 11.0, Apple macOS 10.14 - 10.15, Microsoft Windows 7 / 8 / 8.1 / 10 / 11, Apple macOS 12.0, Apple macOS 13.0

Manufacturer Warranty

Service & Support

Limited warranty - 3 years

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

40 °C
