Startech - docking station - USB-C - 2 x HDMI, 2 x

Images Manuals

Images for illustrative purposes

Startech

View all STARTECH.COM Docking | Replicator - Visit the STARTECH.COM Store (DK30C2DPEPRUE) - (WCEDK30C2DPEPRUE)

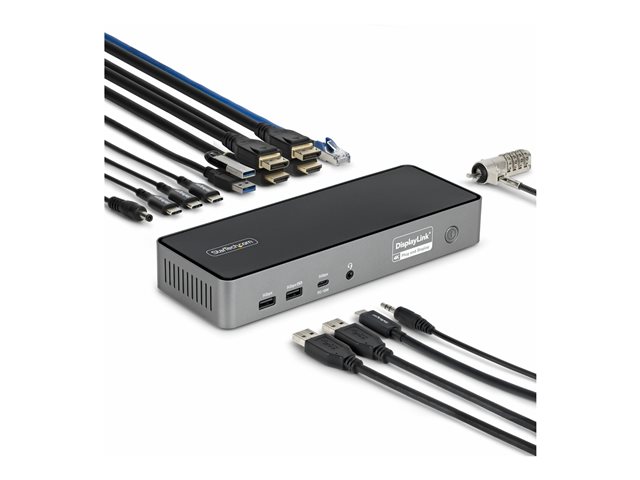

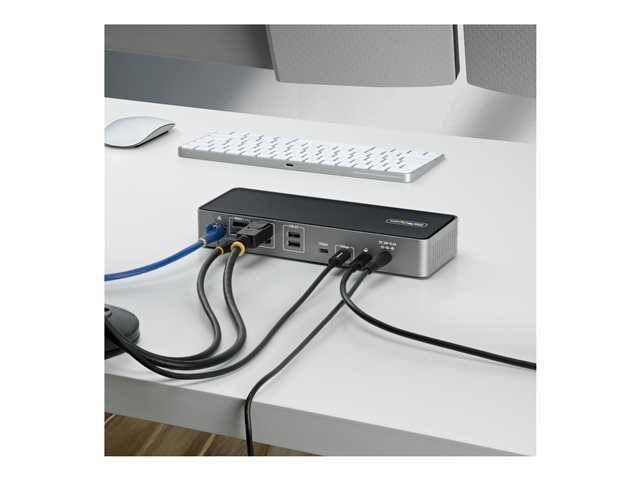

Startech - docking station - USB-C - 2 x HDMI, 2 x DP, USB-C - 2.5GbE - TAA Compliant

Triple 4K Display Support & 140W USB-C Charging
GPU Agnostic for Cross-Platform IT Deployments
Enterprise-Grade Networking & Physical Security

FREE Delivery on orders over €250

6 Available to Ship
Order within 15Hrs 58Mins for: Delivery (8 Jun or 9 Jun)

RRP ~~€295.20~~

€233.80 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

This universal docking station offers high-resolution display support and broad OS compatibility to simplify device management and user experience, making it ideal for modern professional workspaces including hot desks and mixed-device environments. Support up to three 4K 60Hz monitors via USB-C while delivering up to 140W of power to high-performance laptops. A USB-A adapter extends compatibility to legacy systems, enabling flexible dual-display setups in shared workstations and hybrid IT environments. DisplayLink-based HDMI and DisplayPort outputs enable multi-monitor setups on macOS, Windows, and ChromeOS. A unified driver experience simplifies hot desk provisioning, reduces IT support overhead, and ensures consistent performance across transient and mobile workstations. The integrated 2.5GbE port ensures high-speed data transfers and supports PXE Boot, Jumbo Frames, and Wake-on-LAN. Built-in lock slots and optional mounting solutions (SSPMSUDWM, DOCK-NUC-VESA-MOUNT, SSPMSVESA) enhance the physical security of the docking station.

Features Summary

Triple 4K Display Support & 140W USB-C Charging
Support up to three 4K 60Hz monitors via USB-C while delivering up to 140W of power to high-performance laptops. A USB-A adapter extends compatibility to legacy systems, enabling flexible dual-display setups in shared workstations and hybrid IT environments.
GPU Agnostic for Cross-Platform IT Deployments
DisplayLink-based HDMI and DisplayPort outputs enable multi-monitor setups on macOS, Windows, and ChromeOS. The USB-C video output port leverages the laptop's built-in GPU to deliver high-performance video output. A unified driver experience simplifies hot desk provisioning, reduces IT support overhead, and ensures consistent performance across transient and mobile workstations.
Enterprise-Grade Networking & Physical Security
The integrated 2.5GbE port ensures high-speed data transfers and supports PXE Boot, Jumbo Frames, and Wake-on-LAN. Built-in lock slots and optional mounting solutions (SSPMSUDWM, DOCK-NUC-VESA-MOUNT, SSPMSVESA) enhance the physical security of the docking station.

Specification Summary

Product Description

Startech - docking station - USB-C - 2 x HDMI, 2 x DP, USB-C - 2.5GbE - TAA Compliant

Product Type

Docking station - for laptop

Docking Interface

USB-C

Video Interfaces

2 x HDMI, 2 x DP, USB-C

Dimensions (WxDxH)

23.25 cm x 8.4 cm x 3.7 cm

Weight

400 g

Colour

Space grey

Networking

2.5 Gigabit Ethernet

Power

Power adapter 210 Watt 140 Watt Power Provided (DC 20 V)

TAA Compliant

Yes

Manufacturer Warranty

3-year warranty

Specifications

EAN / GTIN:

0065030912945

General

Product Type

Docking station - for laptop

Width

23.25 cm

Depth

8.4 cm

Height

3.7 cm

Weight

400 g

Enclosure Colour

Space grey

Video

Max Resolution Details

4K - 60 Hz (Triple Display)

Networking

Data Link Protocol

2.5 Gigabit Ethernet

Compliant Standards

Battery Charging 1.2

Expansion / Connectivity

Interfaces

1 x USB 3.2 Gen 1 - 9 pin USB Type A ¦ 1 x USB 3.2 Gen 1 with Battery Charging 1.2 - 9 pin USB Type A ¦ 1 x USB-C 3.2 Gen 1 with Battery Charging 1.2 - 24 pin USB-C ¦ 1 x audio - headphones/microphone - mini-phone stereo 3.5 mm 4-pole ¦ 1 x network - 100Base-TX/1000Base-TX/2.5GBase-T - RJ-45 ¦ 2 x display / video - DisplayPort - 20 pin DisplayPort ¦ 2 x display / video - HDMI - 19 pin HDMI Type A ¦ 2 x USB 2.0 - 4 pin USB Type A ¦ 1 x USB-C 3.2 Gen 2 - 24 pin USB-C ¦ 1 x USB-C 3.2 Gen 2/DisplayPort - 24 pin USB-C ¦ 1 x USB host - 24 pin USB-C

Miscellaneous

Cables Included

1 x USB-C host cable - external - 1 m ¦ 1 x power cable

Features

Security lock slot (cable lock sold separately), wake on LAN, VESA interface support, Preboot Execution Environment (PXE) support, full duplex support, 4K Ultra HD, DisplayPort Alt Mode, triple display support, 18W power delivery, up to 10Gbps data transfer, power LED status, jumbo frame support, up to 140W power delivery, UASP support

Security Slot Type

Kensington nano security slot / Kensington security slot

Compliant Standards

FCC, RoHS, WEEE, DisplayLink certified

TAA Compliant

Yes

Power

Power Device

Power adapter

Power Consumption (Max)

210 Watt

Power Provided

140 Watt

Voltage Provided

DC 20 V

System Requirements

OS Required

Google Chrome OS, Ubuntu 18.04, Ubuntu 20.04, Microsoft Windows 10 / 11, Ubuntu 22.04, Apple macOS 10.15 / 11.0 / 12.0 / 13.0, Apple macOS 15, Ubuntu 24.04

Manufacturer Warranty

Service & Support

Limited warranty - 3 years

Dimensions & Weight (Shipping)

Shipping Width

16.9 cm

Shipping Depth

25 cm

Shipping Height

9 cm

Shipping Weight

1.2 kg

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

40 °C
