Startech USB-C USB-A Dock, Hybrid Universal USB 3.0 Docking Station for USB-C or USB-A Laptop, Dual Monitor 4K 60Hz HDMI/DisplayPort, 6x USB-A Hub, Gi

Images for illustrative purposes

Startech USB-C USB-A Dock, Hybrid Universal USB 3.0 Docking Station for USB-C or USB-A Laptop, Dual Monitor 4K 60Hz HDMI/DisplayPort, 6x USB-A Hub, Gi

View all STARTECH.COM Docking | Replicator - Visit the STARTECH.COM Store (DK30A2DHUUE) - (ECE6244439)

Startech USB-C USB-A Dock, Hybrid Universal USB 3.0 Docking Station for USB-C or USB-A Laptop, Dual Monitor 4K 60Hz HDMI/DisplayPort, 6x USB-A Hub, Gigabit Ethernet, USB 3.1/3.2 Gen 1 - Dual 4K USB-C Dock (DK30A2DHUUE) - Docking station - USB - 2 x HDMI,

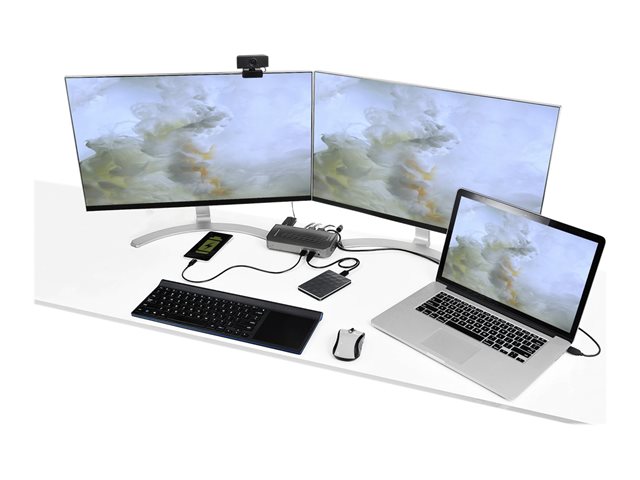

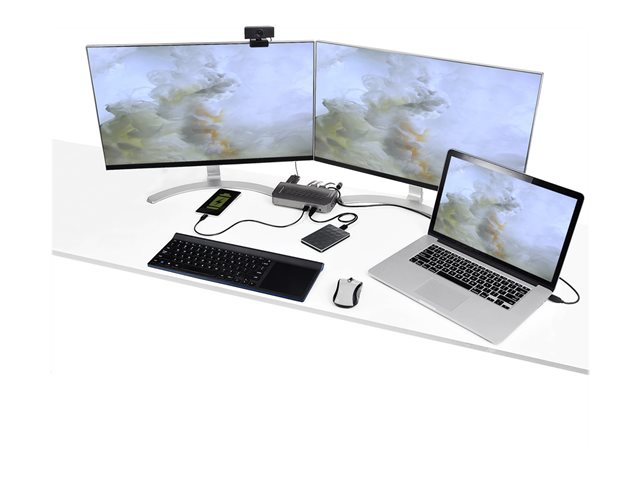

Flexible Monitor Connections
Certified for Maximum Compatibility & Performance
Flexible Setup Options
The Connections You Need
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application

HOT

FREE Delivery on orders over €250

162 Available to Ship
Order within 3Hrs 23Mins for: Delivery (11 Aug or 12 Aug)

€119.75 Incl Vat

Price at 30 Day Low

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

Transition from the legacy USB-A (USB 3.1/3.0) to newer USB-C laptops with this universal laptop docking station for USB-C and USB-A laptops. The USB 3.1 Gen 1 (5 Gbps) Type-C dock features dual HDMI and/or DisplayPort monitors, six USB Type-A downstream peripheral ports, and headset audio.

Features Summary

Flexible Monitor Connections
This is a dual 4K60Hz video docking station with support for both Ultra HD DisplayPort and/or HDMI monitors that lets you configure your video connections to best suit your needs. •Text | Dual 4K DisplayPort | Up to 4096 x 2160p @ 60Hz •Text | Dual 4K HDMI | Up to 4096 x 2160p @ 60Hz •Text | Single 4K DisplayPort + Single 4K HDMI | Up to 4096 x 2160p @ 60Hz •Text | Single 5K DisplayPort * | Up to 5120 × 2880 *Requires monitor support for 5K using two DP ports
Certified for Maximum Compatibility & Performance
This docking station is fully certified to meet top industry standards for DisplayLink (video connections) certification to guarantee the highest quality, performance, and compatibility.
Flexible Setup Options

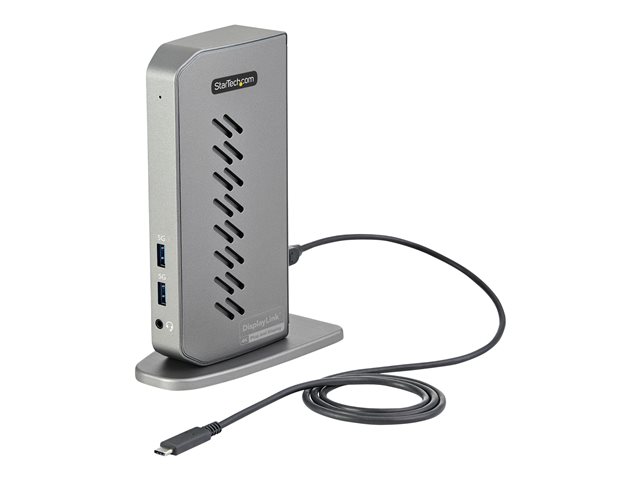

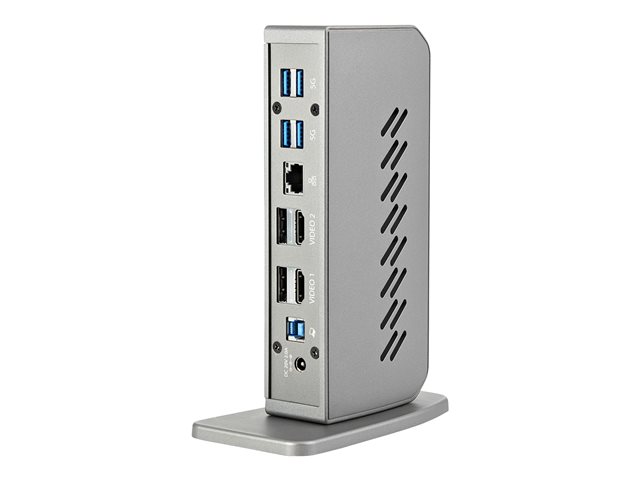

For fast setup right out of the box, the two included host cables (USB-C and USB-A) connect to any laptop. The included dock stand lets you position the dock vertically to save space or lay flat on the desk.

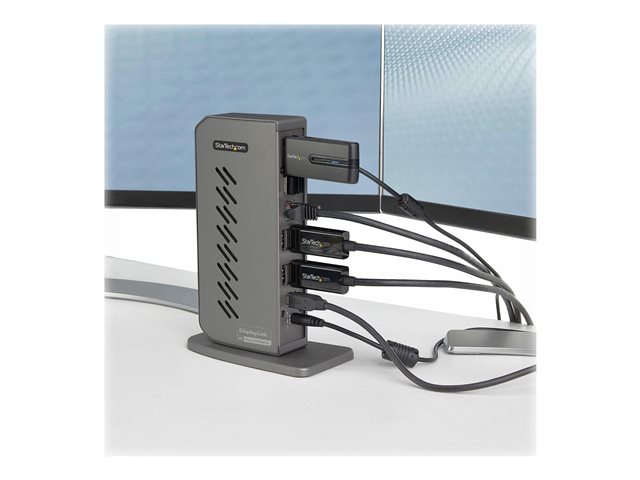

The Connections You Need

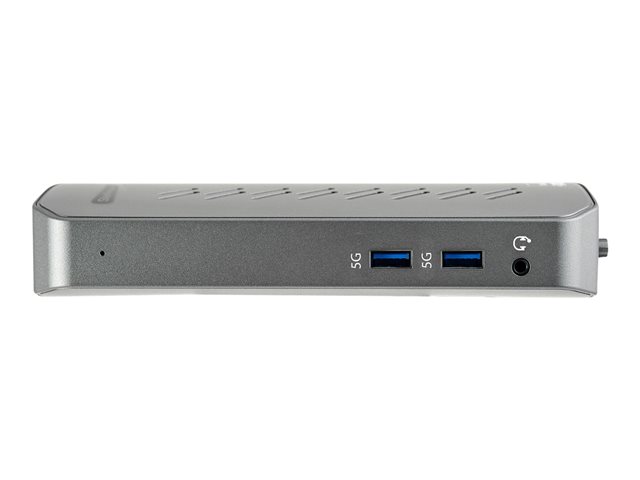

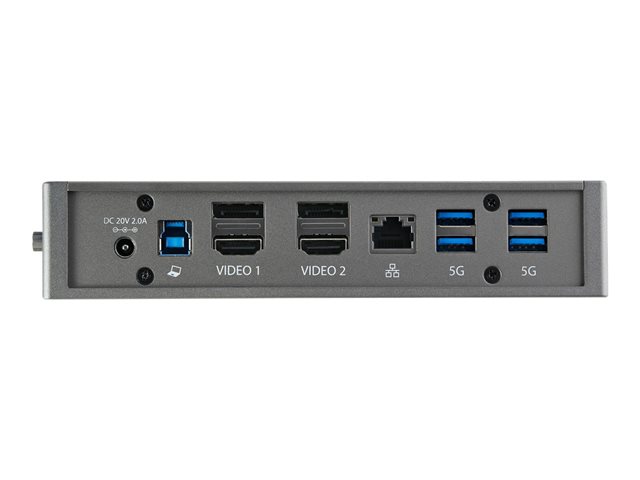

Connect your devices with six downstream USB Type-A (USB 3.0 5 Gbps) ports, two positioned on the front, and four on the back. The dock provides a GbE port and a 3.5 mm 4-position headset audio jack.
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes: •Text | Advanced Windows Layout Utility : To setup and save custom windows layouts. •Text | Mac Address Pass-Through Utility : To improve network security. •Text | USB Event Monitoring Utility : To track and log connected USB devices •Text | Wi-Fi Auto Switch Utility : Enabling users to quickly access faster network speeds via wired LAN.

Specification Summary

Product Description

Product Type

Docking station

Docking Interface

USB

Video Interfaces

2 x HDMI, 2 x DP

Dimensions (WxDxH)

13.5 cm x 7.3 cm x 18.7 cm

Weight

340 g

Colour

Black, silver

Localisation

United Kingdom, Europe

Networking

Gigabit Ethernet

Power

Power adapter AC 120/230 V 40 Watt Power Provided

Manufacturer Warranty

3-year warranty

Specifications

EAN / GTIN:

0065030891615

General

Product Type

Docking station

Width

13.5 cm

Depth

7.3 cm

Height

18.7 cm

Weight

340 g

Enclosure Colour

Black, silver

Localisation

United Kingdom, Europe

Networking

Data Link Protocol

Ethernet, Fast Ethernet, Gigabit Ethernet

Expansion / Connectivity

Interfaces

6 x USB 3.1 - 9 pin USB Type A ¦ 1 x USB 3.1 - 9 pin USB Type B ¦ 1 x network - 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ 1 x headphone/microphone combo jack - output - mini-phone stereo 3.5 mm ¦ 2 x display / video - DisplayPort - 20 pin DisplayPort ¦ 2 x audio / video - HDMI - 19 pin HDMI Type A

Miscellaneous

Cables Included

1 x USB-C to USB-B cable - external - 1 m ¦ 1 x USB-A to USB-B cable - external - 1 m

Features

Fast charging, DisplayLink DL-6950 chipset

Power

Power Device

Power adapter

Voltage Required

AC 120/230 V

Power Provided

40 Watt

System Requirements

OS Required

Microsoft Windows 2000/XP/Vista/7/8/8.1/10, Apple MacOS X 10.6 - 10.12, Google Chrome OS 55 or later, Apple macOS 11.0, Apple macOS 10.14 - 10.15, Apple macOS 12.0, Microsoft Windows 11, Apple macOS 13.0

Manufacturer Warranty

Service & Support

Limited warranty - 3 years

Dimensions & Weight (Shipping)

Shipping Width

21 cm

Shipping Depth

10.9 cm

Shipping Height

14.2 cm

Shipping Weight

360 g
