D-Link DGS 1520-28MP - switch - 28 ports - smart -

Images Manuals

Images for illustrative purposes

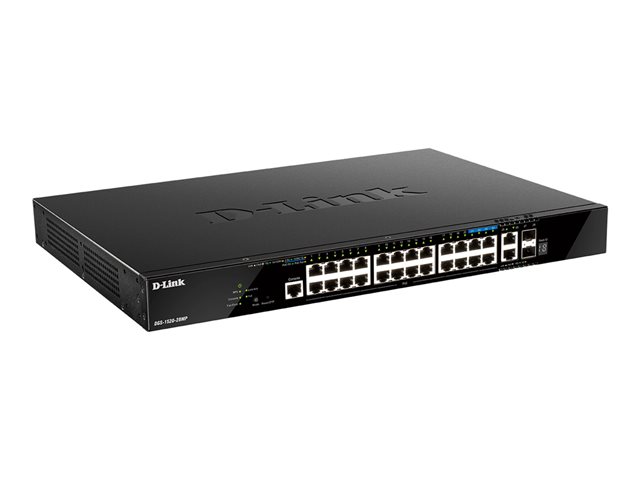

D-Link DGS 1520-28MP

Name: D-Link DGS 1520-28MP
Brand: D-LINK
SKU: MME5845684
Price: 1126.93 EUR
Availability: InStock

View all D-LINK Network Switches - Visit the D-LINK Store (DGS-1520-28MP) - (MME5845684)

Model: D-Link DGS

DGS 1520-28MP - switch - 28 ports - smart - rack-mountable

High availability
Zero Touch provisioning
Multi-Gigabit support
Powerful stacking capability

FREE Delivery on orders over €250

1 Available to Ship
Order within 5Hrs 57Mins for: FREE Delivery (8 Jun or 9 Jun)

€1126.93 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

The DGS-1520 Series, a new generation of Lite Layer 3 Stackable Smart Managed Switches, includes four 10 GB ports for uplink or stacking up to a total of eight switches with a total of 80 Gigabit stacking bandwidth. Designed for effortless multi-site network deployments with Zero Touch Provisioning, the DGS-1520 Series is also powerful enough for server and storage applications.

Features Summary

High availability
The DGS-1520 Series brings reliable, yet affordable, Gigabit connectivity with four 10-Gigabit ports (two 10G Base-T and two 10G SFP+) for high-speed uplink or stacking. Boost your network performance, simplify your network infrastructure, improve bandwidth and reduce cabling complexity.
Zero Touch provisioning
Zero Touch provisioning is perfect for multi-site network expansions. Simply preconfigure your network settings in a centralized location, then install the DGS-1520 switches for effortless deployments.
Multi-Gigabit support
Multi-Gigabit ports on the DGS-1520 Series switch support 100 MB / 1 GB / 2.5 GB speeds to maximize various device capabilities, such as Wi-Fi 6 (802.11ax) access points, which can often exceed single Gigabit speeds.
Powerful stacking capability
Stack up to eight DGS-1520 switches with a total of 80 GB stacking bandwidth using hybrid mode (copper and/or fiber), increasing flexibility, scalability, and cost effectiveness for SMBs.

Specification Summary

Product Description

D-Link DGS 1520-28MP - switch - 28 ports - smart - rack-mountable

Device Type

Switch - 28 ports - L3 - smart - stackable

Enclosure Type

Rack-mountable 1U

Subtype

Gigabit Ethernet

Ports

20 x 10/100/1000 (PoE+) + 4 x 2.5G (PoE+) + 2 x 10 Gigabit Ethernet + 2 x 10 Gigabit SFP+

Power Over Ethernet (PoE)

PoE+

PoE Budget

370 W

Performance

Switching capacity: 140 Gbps ¦ Forwarding performance: 104.16 Mpps ¦ Stacking bandwidth: 80 Gbps

Capacity

IGMP groups: 512 ¦ MLD groups: 256 ¦ VLAN groups: 4000 ¦ Static ARP entries: 256

MAC Address Table Size

16384 entries

Jumbo Frame Support

12288 bytes

Routing Protocol

IGMP, IGMPv2, IGMPv3, MLD, MLDv2, PIM-DM, PIM-SM, PIM-SSM, static IP routing, OSPF, RIPng, ECMP, RIP-1, RIP-2, policy-based routing (PBR), DVMRP

Remote Management Protocol

SNMP 1, SNMP 2c, SNMP 3, RMON 1, RMON 2, RMON 3, RMON 9

Features

ZTP, RSPAN, ERPS, DNA support, VRRP support, MDI, MDI-X, Link Aggregation, STP support, BPDU Filter, Loop Guard, MSTP support, Rapid Reconfiguration of Spanning Tree (RSTP), Root Guard, flow mirroring, loopback detection, port mirroring, VLAN mirroring, ERPS v2, IGMP snooping, GVRP, Private VLAN, VLAN trunking, Voice VLAN, OSPF, QoS, WDRR, WRED, WRR, CoS, BPDU, DoS, EEE, D-Link DDP, NTP 3, NTP 4, store and forward

Compliant Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3x, IEEE 802.3z, IEEE 802.1AX, IEEE 802.3ad (LACP), IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.1Q, IEEE 802.1v, IEEE 802.1p, IEEE 802.1Qbb, IEEE 802.3af, IEEE 802.3at

Power

AC 120/230 V (50/60 Hz)

Dimensions (WxDxH)

44.1 cm x 30.85 cm x 4.4 cm

Weight

4.29 kg

Specifications

EAN / GTIN:

0790069454776

General

Device Type

Switch - 28 ports - L3 - smart - stackable

Enclosure Type

Rack-mountable 1U

Subtype

Gigabit Ethernet

Ports

20 x 10/100/1000 (PoE+) + 4 x 2.5G (PoE+) + 2 x 10 Gigabit Ethernet + 2 x 10 Gigabit SFP+

Power Over Ethernet (PoE)

PoE+

PoE Budget

370 W

Performance

Switching capacity: 140 Gbps ¦ Forwarding performance: 104.16 Mpps ¦ Stacking bandwidth: 80 Gbps

Capacity

IGMP groups: 512 ¦ MLD groups: 256 ¦ VLAN groups: 4000 ¦ Static ARP entries: 256

MAC Address Table Size

16384 entries

Jumbo Frame Support

12288 bytes

Max Units In A Stack

Routing Protocol

IGMP, IGMPv2, IGMPv3, MLD, MLDv2, PIM-DM, PIM-SM, PIM-SSM, static IP routing, OSPF, RIPng, ECMP, RIP-1, RIP-2, policy-based routing (PBR), DVMRP

Remote Management Protocol

SNMP 1, SNMP 2c, SNMP 3, RMON 1, RMON 2, RMON 3, RMON 9

Encryption Algorithm

TLS 1.0, TLS 1.1, TLS 1.2, SSL

Authentication Method

Secure Shell v.2 (SSH2), RADIUS, TACACS+

Features

Compliant Standards

Status Indicators

Power, stack, fan, link/activity, PoE

Expansion / Connectivity

Interfaces

20 x 1000Base-T RJ-45 PoE+ ¦ 4 x 2.5GBase-T RJ-45 PoE+ ¦ 2 x 10GBase-T RJ-45 ¦ 2 x 10GBase-X SFP+

Power

Power Device

Internal power supply

Voltage Required

AC 120/230 V (50/60 Hz)

Power Consumption Operational

453.3 watt

Miscellaneous

MTBF

333946 hours

Compliant Standards

FCC Class A certified, IC Class A, RCM Class A, VCCI Class A, BSMI Class A

Dimensions & Weight

Width

44.1 cm

Depth

30.85 cm

Height

4.4 cm

Weight

4.29 kg

Environmental Parameters

Min Operating Temperature

-5 °C

Max Operating Temperature

50 °C

Humidity Range Operating

10 - 95% (non-condensing)

Min Storage Temperature

-40 °C

Max Storage Temperature

70 °C

Humidity Range Storage

5 - 95% (non-condensing)
