EAN / GTIN:
0790069467899
Device Type

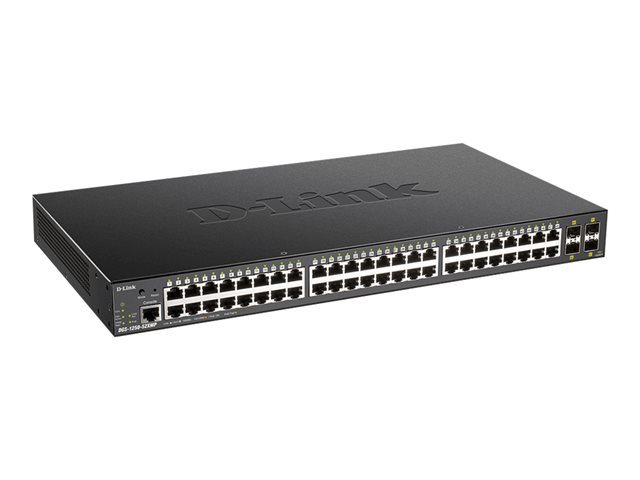

Switch - 52 ports - L3 Lite - smart - stackable
Enclosure Type
Rack-mountable 1U
Ports
48 x 10/100/1000 + 4 x 10 Gigabit SFP+
Performance
Switching capacity: 176 Gbps ¦ Forwarding performance: 130.95 Mpps
MAC Address Table Size
32K entries
Routing Protocol
IGMPv2, IGMP, static IP routing, IGMPv3, MLDv2, MLD
Remote Management Protocol
SNMP 1, RMON 1, Telnet, SNMP 3, SNMP 2c, SSH-2, CLI
Encryption Algorithm
SSL, TLS, SSL 3.0, SSL 2.0, PEAP, TTLS
Authentication Method
RADIUS, TACACS+, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP)
Features
Flow control, auto-negotiation, ARP support, auto-uplink (auto MDI/MDI-X), IGMP snooping, DoS attack prevention, port mirroring, store and forward, Broadcast Storm Control, half duplex mode, full duplex mode, Multicast Storm Control, Unicast Storm Control, sFlow, STP support, RSTP support, MSTP support, DHCP snooping, ACL support, QoS, MLD snooping, DAI, reset button, LLDP support, DHCP relay, LACP, Port Security, SNMP trap, DHCP client, GVRP, dual firmware images, SPQ, Multicast filtering function, TFTP client, ERPS, cable test, system log, IP source guard, DRR, BPDU, ICMP, NTP, AAA, WAC, LLDP-MED, WRR, HOL Blocking Prevention, loopback detection
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.3az
Status Indicators
Error, fan, link/activity/speed, stack
Interfaces
48 x 1000Base-T RJ-45 ¦ 4 x 10GBase-X SFP+ ¦ 1 x console RJ-45 management
Power Device
Internal power supply
Voltage Required
AC 120/230 V (50/60 Hz)
Power Consumption Operational
51.2 Watt
Compliant Standards
VCCI, C-Tick, BSMI, cUL, CB, FCC
Min Operating Temperature
-5 °C
Max Operating Temperature
50 °C
Humidity Range Operating
0 - 95% (non-condensing)
Min Storage Temperature
-20 °C
Max Storage Temperature
70 °C
Humidity Range Storage
0 - 95% (non-condensing)
