EAN / GTIN:
0790069427664

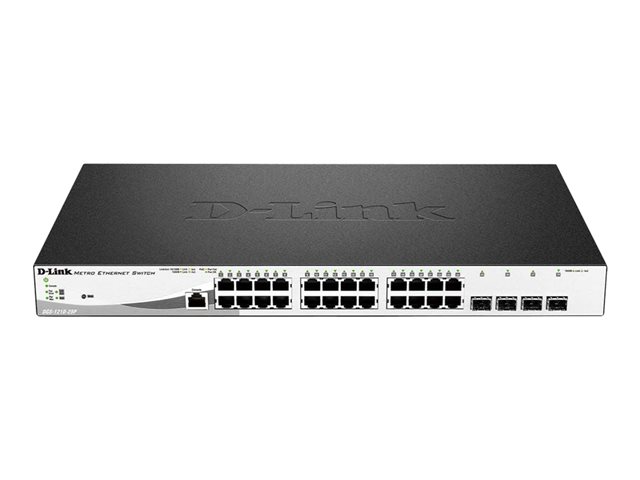

Device Type
Switch - 28 ports - Managed
Enclosure Type
Desktop, rack-mountable 1U
Ports
24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP
Power Over Ethernet (PoE)
PoE+
Performance
Switching capacity: 56 Gbps ¦ Forwarding performance (64-byte packet size): 41.7 Mpps
Capacity
IGMP groups: 256 ¦ QoS hardware queues per port: 8 ¦ ACL rules: 256 ¦ ARP entries: 256 ¦ VLAN groups: 4094 ¦ IPv4 routing table entries: 32 ¦ IPv6 routing table entries: 16
MAC Address Table Size
16K entries
Jumbo Frame Support
9216 bytes
Routing Protocol
IGMPv2, IGMP, IGMPv3, static IPv4 routing, static IPv6 routing, MLDv2, MLD
Remote Management Protocol
SNMP 1, RMON 1, Telnet, SNMP 3, SNMP 2c, HTTP, CLI
Encryption Algorithm
MD5, SSL, TLS, SSL 3.0, SSL 2.0, PEAP, TTLS
Authentication Method
RADIUS, Secure Shell v.2 (SSH2), internal user database, Extensible Authentication Protocol (EAP)
Features
Flow control, full duplex capability, auto-negotiation, BOOTP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, port mirroring, WRR queuing, store and forward, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, firmware upgradable, SNTP support, STP support, RSTP support, DHCP snooping, ACL support, QoS, MLD snooping, DAI, Safeguard Engine, Cable Diagnostics Function, bandwidth control, D-Link Green Technology, Port Security, IP-MAC binding, SNMP trap, DHCP client, SPQ, Multicast filtering function, CoS, TFTP client, security lock slot (cable lock sold separately), 802.1x authentication, ToS, DSCP support, 1.5MB packet buffer
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az
Status Indicators
Port transmission speed, power, PoE, link/activity, fan
Interfaces
24 x 1000Base-T RJ-45 PoE+ ¦ 4 x SFP
Power Device
Internal power supply
Voltage Required
AC 120/230 V (50/60 Hz)
Power Consumption Operational
27.49 watt
Compliant Standards
FCC Class A certified, C-Tick, BSMI, cUL, ICES-003, LVD, VCCI Class A
Service & Support
Limited warranty - lifetime
Min Operating Temperature
-5 °C
Max Operating Temperature
50 °C
Humidity Range Operating
10 - 90% (non-condensing)
Min Storage Temperature
-40 °C
Max Storage Temperature
70 °C
Humidity Range Storage
5 - 90% (non-condensing)
