Overview

Range/Series Overview


IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

The DGS-1100 series’ web user interface gives administrators an easy way to manage Layer 2 features, such as VLANs, Spanning Tree Protocol (STP), and link aggregation (desktop models utilize Static Trunk). With powerful security features including IGMP snooping, Static MAC, and Storm Control, these smart managed switches are a versatile solution for deployments that require easy to configure functionality without added complexities.


Features Summary

  • Simplify Network management
    D-Link's free Network Assistant (DNA) utility displays all your connected devices and makes first-time configuration a breeze. The free D-View 7 Network Management System comes with a license for 25 nodes and 2 probes and full access to the management tools.
  • Easy troubleshooting
    The DGS-1100 Series features Loopback Detection and Cable Diagnostics to help network administrators find and solve network problems quickly and easily. Loopback Detection detects loops created by a specific port and automatically shuts down the affected port. The Cable Diagnostics feature is designed for network administrators to quickly examine the quality of the copper cables, recognize the cable type, and detect cable errors.
  • Green technology
    D-Link Green technology enables the DGS-1100 Smart Managed Switches to save power without sacrificing performance. The desktop models in the series utilize a fanless design, for silent and energy-efficient operation. All models are also IEEE 802.3az-compliant and feature Link Status detection.

Specification Summary

Product Description

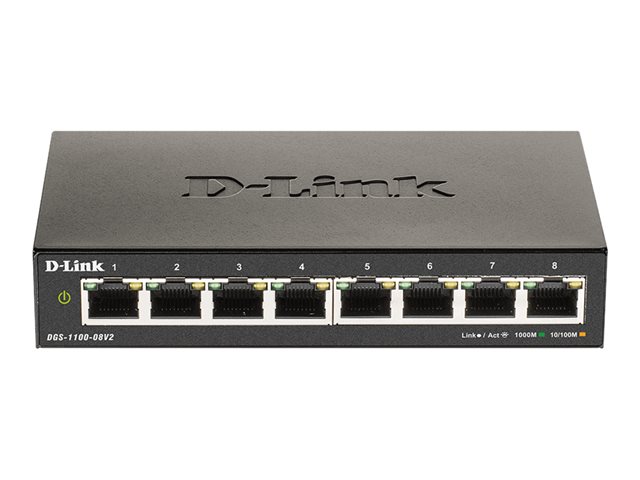

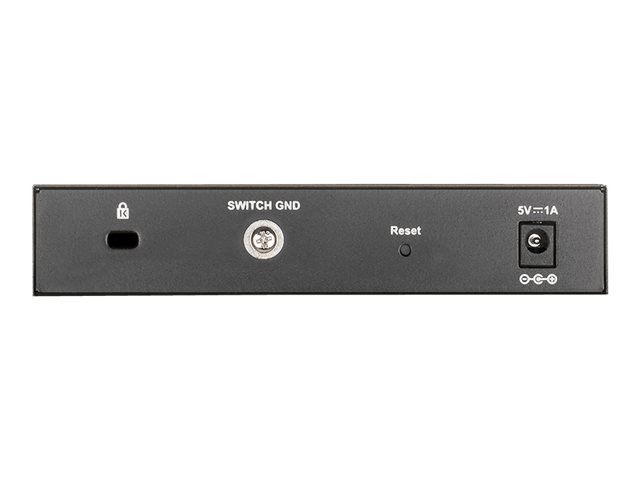

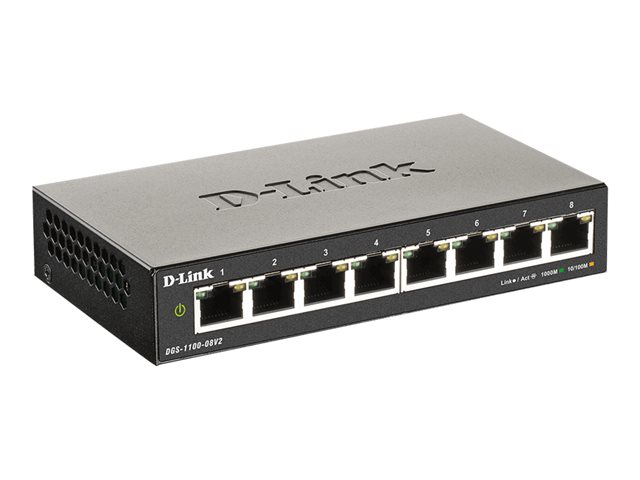

D-Link DGS 1100-08V2 - switch - 8 ports - smart
Device Type
Switch - 8 ports - smart
Subtype
Gigabit Ethernet
Ports
8 x 10/100/1000
Performance
Switching capacity: 16 Gbps ¦ Forwarding performance: 11.9 Mpps
Capacity
VLAN groups: 128 ¦ VLAN IDs: 4094 ¦ IGMP groups: 128
MAC Address Table Size
4K entries
Routing Protocol
IGMPv2, IGMP, IGMPv3
Remote Management Protocol
SNMP 2, ICMP
Features
Flow control, auto-negotiation, BOOTP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, DoS attack prevention, port mirroring, Broadcast Storm Control, full duplex mode, Multicast Storm Control, Unicast Storm Control, STP support, RSTP support, QoS, Cable Diagnostics Function, bandwidth control, fanless, LLDP support, Port Security, DHCP client, tagged VLAN, DSCP support, 1.5MB packet buffer, IGMP querier, Voice VLAN, VLAN management, VLAN group, EEE, WRR, HOL Blocking Prevention, loopback detection, port-based VLAN, port-based QoS, Unknown Storm Control, DNA support, Asymmetric VLAN
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1ab (LLDP), IEEE 802.3az
Power
AC 100/240 V (50/60 Hz)
Dimensions (WxDxH)
14.5 cm x 8.2 cm x 2.8 cm
Weight
340 g

Specifications

EAN / GTIN:
0790069453304
General
Device Type
Switch - 8 ports - smart
Enclosure Type
Desktop
Subtype
Gigabit Ethernet
Ports
8 x 10/100/1000
Performance
Switching capacity: 16 Gbps ¦ Forwarding performance: 11.9 Mpps
Capacity
VLAN groups: 128 ¦ VLAN IDs: 4094 ¦ IGMP groups: 128
MAC Address Table Size
4K entries
Routing Protocol
IGMPv2, IGMP, IGMPv3
Remote Management Protocol
SNMP 2, ICMP
Encryption Algorithm
SSL
Features
Flow control, auto-negotiation, BOOTP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, DoS attack prevention, port mirroring, Broadcast Storm Control, full duplex mode, Multicast Storm Control, Unicast Storm Control, STP support, RSTP support, QoS, Cable Diagnostics Function, bandwidth control, fanless, LLDP support, Port Security, DHCP client, tagged VLAN, DSCP support, 1.5MB packet buffer, IGMP querier, Voice VLAN, VLAN management, VLAN group, EEE, WRR, HOL Blocking Prevention, loopback detection, port-based VLAN, port-based QoS, Unknown Storm Control, DNA support, Asymmetric VLAN
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1ab (LLDP), IEEE 802.3az
Flash Memory
2 MB
Status Indicators
Power, status, link/activity/speed
Expansion / Connectivity
Interfaces
8 x 1000Base-T RJ-45
Power
Power Device
External power adapter
Voltage Required
AC 100/240 V (50/60 Hz)
Power Consumption Stand by
1.93 Watt
Miscellaneous
MTBF
1,456,992 hours
Compliant Standards
FCC Class A certified, C-Tick, BSMI, cUL, CB, CCC, RoHS, LVD, VCCI Class A
Software / System Requirements
Software Included
D-Link Network Assistant
Dimensions & Weight
Width
14.5 cm
Depth
8.2 cm
Height
2.8 cm
Weight
340 g
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
0 - 90% (non-condensing)
Min Storage Temperature
-40 °C
Max Storage Temperature
70 °C
Humidity Range Storage
0 - 95% (non-condensing)
