Overview

Range/Series Overview


IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

The D-Link DGS 1100-08PV2 switch is engineered to meet the demands of modern networks, offering robust performance, enhanced connectivity, and advanced network management features. With its 16 Gbps switching capacity and 11.9 Mpps forwarding performance, it efficiently manages network traffic, ensuring smooth and reliable data transmission. The switch features 8 PoE ports, providing a convenient and cost-effective solution for powering IP cameras, VoIP phones, and other PoE devices, while its total PoE budget of 64 W accommodates various deployment scenarios.

Designed for durability and reliability, the D-Link DGS 1100-08PV2 operates within a wide range of environmental conditions and boasts a fanless design for silent operation, making it ideal for noise-sensitive environments. Its comprehensive suite of network management features, including VLAN support and Quality of Service (QoS), allows for efficient traffic prioritization and enhanced network security. Additionally, the inclusion of D-Link Green technology underscores a commitment to energy efficiency, automatically optimizing power usage and contributing to significant energy savings. Whether for small businesses or enterprise applications, this switch is a versatile and eco-friendly solution for modern networking needs.


Specification Summary

Product Description

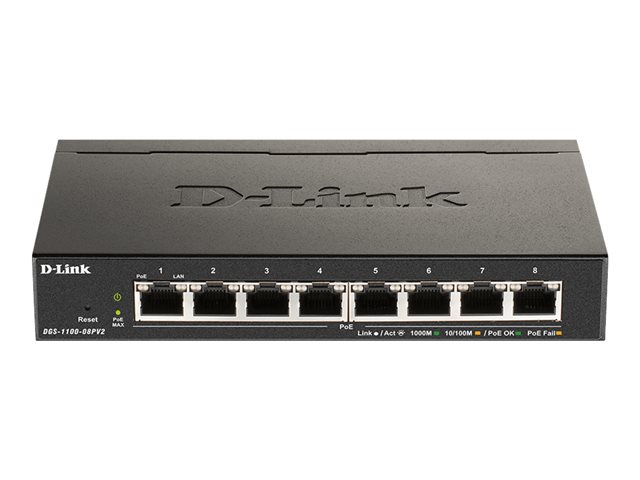

D-Link DGS 1100-08PV2 - switch - 8 ports - smart
Device Type
Switch - 8 ports - smart
Subtype
Gigabit Ethernet
Ports
8 x 10/100/1000 (PoE)
Power Over Ethernet (PoE)
PoE
PoE Budget
64 W
Performance
Switching capacity: 16 Gbps ¦ Forwarding performance: 11.9 Mpps
MAC Address Table Size
4K entries
Jumbo Frame Support
9216 bytes
Remote Management Protocol
HTTP
Features
Auto-negotiation, full duplex mode, half duplex mode, auto-uplink (auto MDI/MDI-X), 1.5MB packet buffer, fanless, VLAN support, flow control, IGMP snooping, loopback detection, Cable Diagnostics Function, QoS, bandwidth control, DSCP based QoS, port mirroring, D-Link Green Technology, Layer 2 switching, WRR, ARP support, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.3az, IEEE 802.1Q, IEEE 802.1p
Power
(50/60 Hz)
Dimensions (WxDxH)
17.1 cm x 9.78 cm x 2.86 cm
Weight
433 g
Manufacturer Warranty
Limited lifetime warranty

Specifications

EAN / GTIN:
790069469046
General
Device Type
Switch - 8 ports - smart
Enclosure Type
Desktop
Subtype
Gigabit Ethernet
Ports
8 x 10/100/1000 (PoE)
Power Over Ethernet (PoE)
PoE
PoE Budget
64 W
Performance
Switching capacity: 16 Gbps ¦ Forwarding performance: 11.9 Mpps
MAC Address Table Size
4K entries
Jumbo Frame Support
9216 bytes
Remote Management Protocol
HTTP
Features
Auto-negotiation, full duplex mode, half duplex mode, auto-uplink (auto MDI/MDI-X), 1.5MB packet buffer, fanless, VLAN support, flow control, IGMP snooping, loopback detection, Cable Diagnostics Function, QoS, bandwidth control, DSCP based QoS, port mirroring, D-Link Green Technology, Layer 2 switching, WRR, ARP support, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.3az, IEEE 802.1Q, IEEE 802.1p
Flash Memory
2 MB
Expansion / Connectivity
Interfaces
8 x 1000Base-T RJ-45 PoE - 30 W
Power
Power Device
External power adapter
Voltage Required
(50/60 Hz)
Power Consumption Operational
77.9 Watt
Power Consumption Stand by
2 Watt
Miscellaneous
MTBF
786,841 hours
Compliant Standards
FCC Class B certified, VCCI Class B, BSMI, cUL, CB, LVD, RoHS 10
Software / System Requirements
Software Included
D-Link Network Assistant
Dimensions & Weight
Width
17.1 cm
Depth
9.78 cm
Height
2.86 cm
Weight
433 g
Manufacturer Warranty
Service & Support
Limited warranty - lifetime
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
0 - 90% RH (non-condensing)
Min Storage Temperature
-40 °C
Max Storage Temperature
70 °C
Humidity Range Storage
0 - 95% RH (non-condensing)
