D-Link DGS 1024D - switch - 24 ports - unmanaged

Images Manuals

Images for illustrative purposes

D-Link DGS 1024D

Name: D-Link DGS 1024D
Brand: D-LINK
SKU: MME5841939
Price: 88.95 EUR
Availability: InStock
Rating: 4.6 (98 reviews)

View all D-LINK Network Switches - Visit the D-LINK Store (DGS-1024D/B) - (MME5841939)

4.6(98)

Model: D-Link DGS

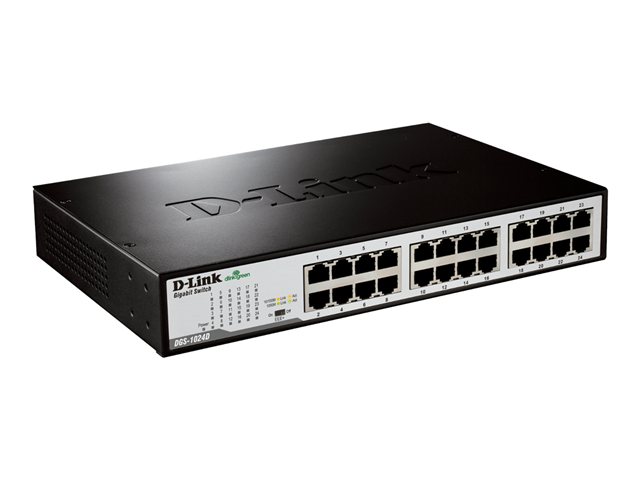

DGS 1024D - switch - 24 ports - unmanaged

Green Ethernet edition

FREE Delivery on orders over €250

8 Available to Ship
Order within 5Hrs 46Mins for: Delivery (8 Jun or 9 Jun)

€88.95 Incl Vat

Price at 30 Day Low

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

This desktop switch offers an inexpensive alternative to fiber optics for the SOHO and small and medium business (SMB). Increasing network loads can be handled with the increased bandwidth of Gigabit Ethernet. The switch provides 24 Gigabit ports in the commonly used Ethernet format, so it works seamlessly with existing network cables (Cat5 or higher). Up to 2000 Mbps can be achieved in full-duplex mode, giving workstations bottleneck-free access to server data.

The latest hardware revision of the switch (C1) introduces the first ever energy-saving features in the networking arena. By sensing whether attached devices are ON or OFF and estimating the cable length, the switch is able to adjust its power consumption, for a total saving of up to 25%. Figure based on a scenario assuming that PCs are used for 10 hours a day, powered off 14 hours a day and connected to the switch using 20m cables.

This product is customized for use in the UK and Ireland.

Features Summary

Green Ethernet edition
The latest hardware revision of the switch (C1) introduces the first ever energy-saving features in the networking arena. By sensing whether attached devices are ON or OFF and estimating the cable length, the switch is able to adjust its power consumption, for a total saving of up to 25%. Figure based on a scenario assuming that PCs are used for 10 hours a day, powered off 14 hours a day and connected to the switch using 20m cables.

Specification Summary

Product Description

D-Link DGS 1024D - switch - 24 ports - unmanaged

Device Type

Switch - 24 ports - unmanaged

Subtype

Gigabit Ethernet

Ports

24 x 10/100/1000

MAC Address Table Size

8K entries

Features

Flow control, full duplex capability, auto-sensing per device, auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward

Compliant Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x

Power

AC 120/230 V (50/60 Hz)

Dimensions (WxDxH)

28 cm x 18 cm x 4.4 cm

Weight

1.7 kg

Localisation

United Kingdom, Ireland

Manufacturer Warranty

2-year warranty

Specifications

EAN / GTIN:

0790069269929

General

Device Type

Switch - 24 ports - unmanaged

Enclosure Type

Desktop

Subtype

Gigabit Ethernet

Ports

24 x 10/100/1000

MAC Address Table Size

8K entries

Features

Flow control, full duplex capability, auto-sensing per device, auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward

Compliant Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x

Built-in Devices

Led panel

Status Indicators

Port transmission speed, power, link/activity

Expansion / Connectivity

Interfaces

24 x 1000Base-T RJ-45

Power

Power Device

Internal power supply

Voltage Required

AC 120/230 V (50/60 Hz)

Power Consumption Operational

27.5 Watt

Miscellaneous

Compliant Standards

Plug and Play, FCC Class A certified, CSA, VCCI Class A ITE, FCC

Localisation

United Kingdom, Ireland

Dimensions & Weight

Width

28 cm

Depth

18 cm

Height

4.4 cm

Weight

1.7 kg

Manufacturer Warranty

Service & Support

Limited warranty - 2 years

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

40 °C

Humidity Range Operating

5 - 95%
