EAN / GTIN:
5397321029076
Product Type
Docking station
Max Resolution Details
4K - 120 Hz (Quad Display) ¦ 5K - 120 Hz (Dual Display) ¦ 6K - 60 Hz (Dual Display) ¦ 8K - 60 Hz (Single Display) ¦ 2560 x 1440 - 60 Hz (Quad Display) ¦ 3440 x 1440 - 60 Hz (Triple Display) ¦ 4K - 240 Hz (Single Display)
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet
Interfaces

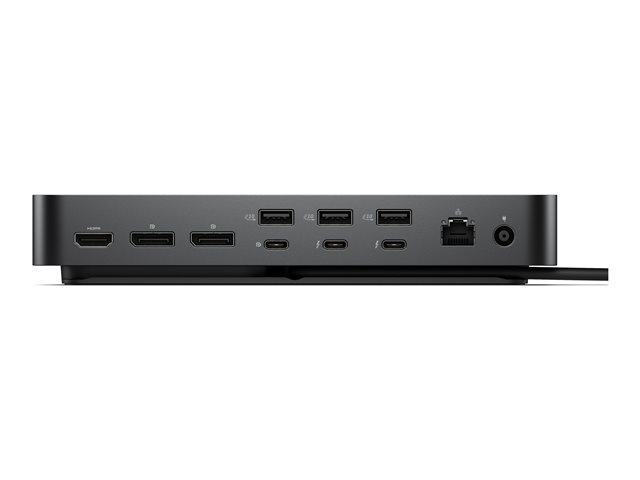

2 x display / video - DisplayPort - 20 pin DisplayPort (2.1) ¦ 1 x display / video - HDMI - 19 pin HDMI Type A ¦ 1 x USB-C 3.2 Gen 2 / DisplayPort 2.1 - 24 pin USB-C ¦ 2 x Thunderbolt 5 ¦ 4 x USB 3.2 Gen 2 - 9 pin USB Type A ¦ 1 x network - 2.5G Gigabit Ethernet - RJ-45 ¦ 1 x USB-C 3.2 Gen 2 - 24 pin USB-C
Cables Included
1 x Thunderbolt 5 cable - integrated - 0.83 m
Features
Security lock slot (cable lock sold separately), wake on LAN, Preboot Execution Environment (PXE) support, 3 LED indicators, MAC address pass-through, Kernel Direct Memory Access (DMA) protection, 300W power delivery to Dell systems, 240W power delivery to non-Dell systems
Security Slot Type
Noble Wedge security slot / Kensington security slot
Compliant Standards
DisplayPort 2.1, Thunderbolt 5
Carbon Footprint
102 kg carbon emissions
Manufacturing (kg CO2e)
60.18
Total Carbon w/o Use Phase (kg CO2e)
64.056
PAIA Version
GaBi version 1, 2025
Power Device
Power adapter
Voltage Required
AC 100-240 V (50 - 60 Hz)
OS Required
Red Hat Enterprise Linux, Google Chrome OS, Windows 10, Windows 11, Ubuntu 24.04
Bundled Services
3 Years Basic Hardware Service with Advanced Exchange after remote diagnosis - Disti SNS
Min Operating Temperature
0 °C
Max Operating Temperature
35 °C
