Range/Series Overview
IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

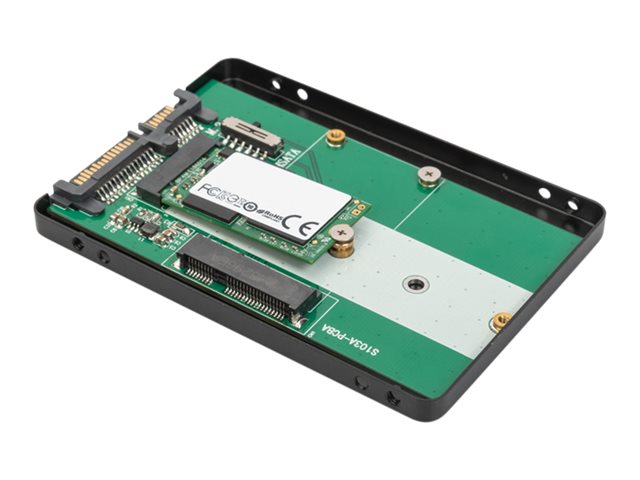

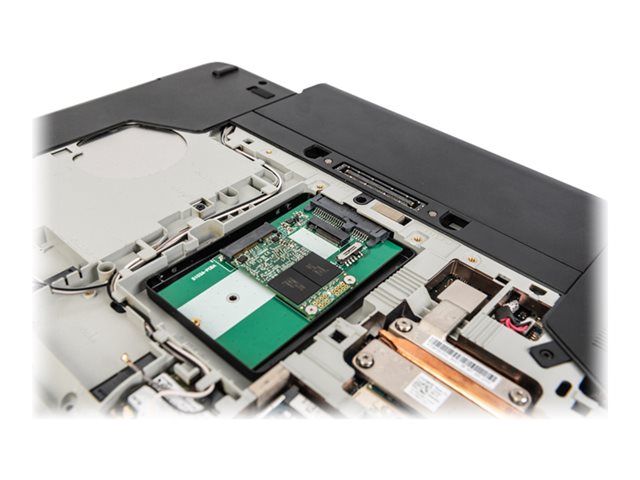

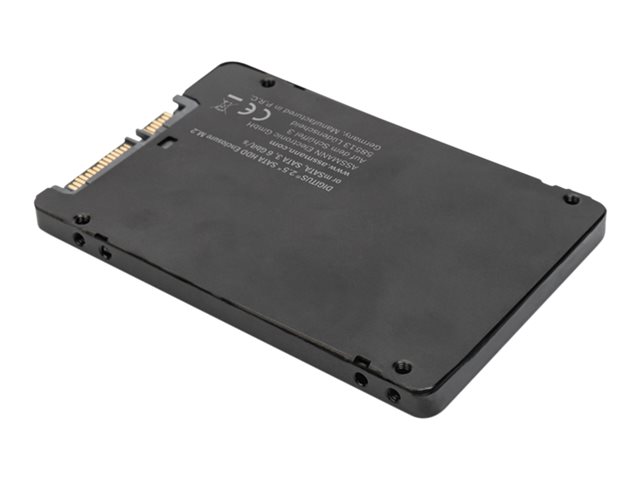

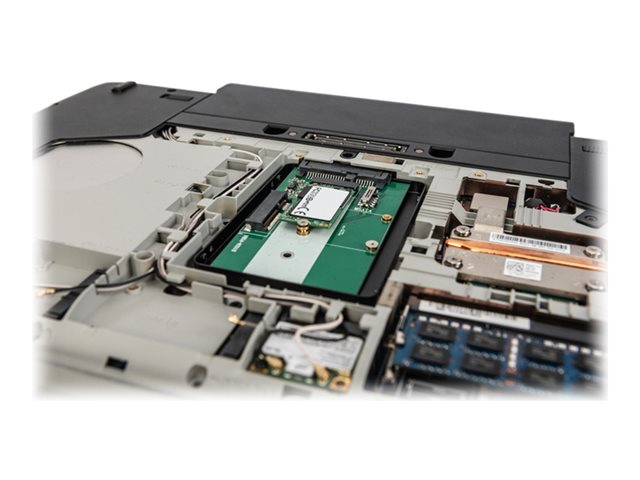

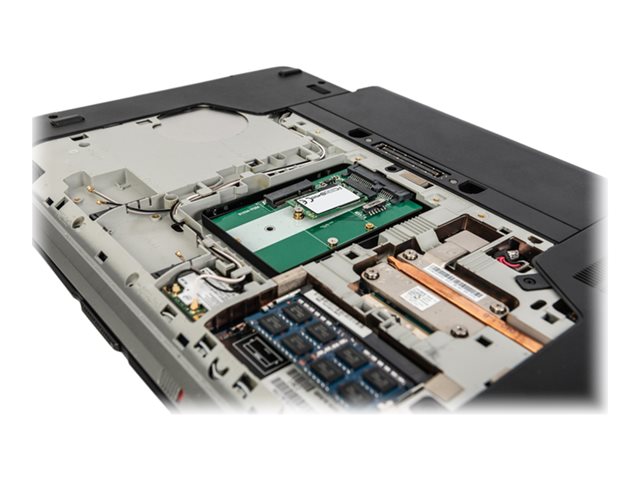

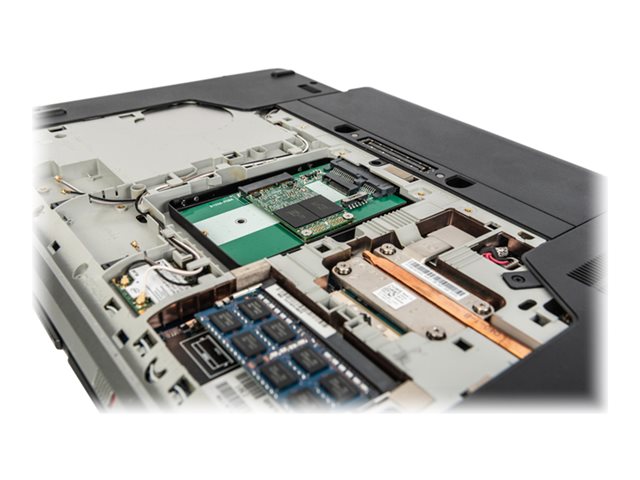

With the DIGITUS 2.5" SATA HDD enclosure, you can increase system speed and performance cost-effectively by installing an M.2 or mSATA SSD in your PC or notebook. The hard disk adapter is used like a standard 2.5" hard disk with SATA III connection. Due to the low installation height of only 7 mm, it can be installed in all common notebooks. The built-in SSD is selected via DIP switch on the board. Boot processes are supported by the adapter for all standard operating systems such as Windows, Mac OS or Linux. The internal SSD memory is protected from dust and damage by the completely closed aluminum housing. The SATA III interface offers a data transmission speed of 6 Gbit/s, the reading speed can be up to 520 MB/s, depending on the SSD used.
Specification Summary
Product Description
DIGITUS DA-71118 - storage enclosure - SATA 6Gb/s - SATA 6Gb/s
Device Type
Storage enclosure - internal
Expansion Bays
1 x internal - M.2 2230/2242/2260/2280 ¦ 1 x internal - mSATA
Hard Drive Form Factor Compatibility
mSATA, M.2
Data Transfer Rate
6 Gbit/s
Supported Devices
Solid state drive
Max Storage Devices Qty
1
Product Material
Aluminium
Dimensions (WxDxH)
10 cm x 7 cm x 0.7 cm
