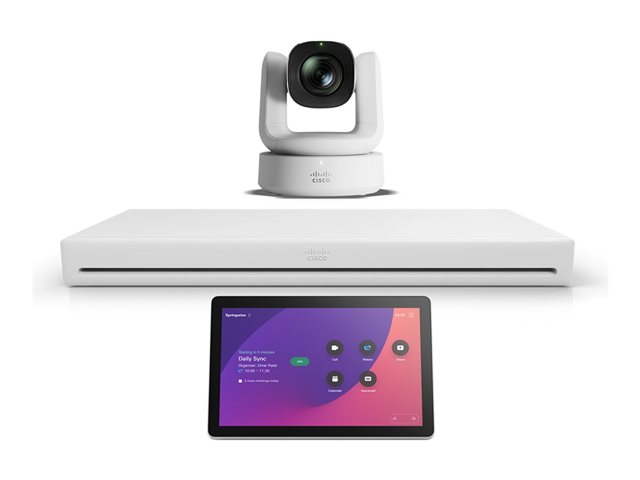

Cisco Webex Room Kit EQ Vision PTZ

Name: Cisco Webex Room Kit EQ Vision PTZ
Brand: CISCO
SKU: ECE11883559
Price: 19035.16 EUR
Availability: InStock

View all CISCO Video Conferencing - Visit the CISCO Store (CS-KIT-EQ-Z-K9) - (ECE11883559)

Model: Cisco Webex

Webex Room Kit EQ Vision PTZ - Video conferencing kit (Cisco Webex Codec EQ, Cisco Room Vision PTZ, Cisco Webex Room Navigator) - Cisco Webex Certified, Certified for Microsoft Teams Rooms

Clear video quality
Versatile connectivity options
Advanced control capabilities
Enhanced audio support
Robust security measures

FREE Delivery on orders over €250

2 Available to Ship
Order within 5Hrs 41Mins for: FREE Delivery (8 Jun or 9 Jun)

RRP ~~€37394.92~~

€19035.16 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

The Cisco Webex Room Kit EQ Vision PTZ is designed to enhance remote collaboration with high-quality video conferencing capabilities. It features a powerful 12x optical zoom camera, capturing video in resolutions up to 3840 x 2160. The built-in AI technology ensures optimal framing with features like speaker tracking and automatic brightness adjustment, delivering clarity in every meeting. This versatile conferencing system includes a 10" touchscreen for effortless control and a host of connectivity options, including HDMI and Ethernet interfaces.

With robust security measures such as 128-bit and 256-bit AES encryption protocols, your sensitive communications are protected during virtual meetings. The Room Kit EQ also supports various VoIP protocols and voice codecs, ensuring high-quality audio transmission. Compliant with numerous standards, it embraces seamless integration into existing environments, catering to a wide range of operational needs while meeting the demands of modern collaboration spaces.

Specification Summary

Product Description

Cisco Webex Room Kit EQ Vision PTZ - video conferencing kit

Device Type

Video conferencing kit

Kit Content

Cisco Webex Codec EQ, Cisco Room Vision PTZ, Cisco Webex Room Navigator

VoIP Protocols

H.323, H.245, SIP

Codec

H.263, H.264, H.265, G.711, G.722, G.722.1, G.729, AAC-LD, Opus

Digital Signaling Protocol

H.460.18, H.460.19, H.323, BFCP, SIP

Data Compression Protocol

G.711, G.722, H.263, H.264, G.722.1

Features

DTMF decoding

Video Input

Digital video camera - 1Gb Ethernet, HDMI

Video Output

Codec board - 3840 x 2160

Input Device

10" touchscreen (wired)

Networking

Network adapter - Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth LE

Power

AC 120/230 V

Software Certification

Cisco Webex Certified, Certified for Microsoft Teams Rooms

Manufacturer Warranty

90 days warranty

Specifications

EAN / GTIN:

889728689984

General

Device Type

Video conferencing kit

Kit Content

Cisco Webex Codec EQ, Cisco Room Vision PTZ, Cisco Webex Room Navigator

VoIP Protocols

H.323, H.245, SIP

Voice Codecs

G.711, G.722, G.722.1, G.729, AAC-LD, Opus

Video Codecs

H.263, H.264, H.265

Quality of Service

IEEE 802.1Q (VLAN), Differentiated Services (DiffServ), IEEE 802.1p

IP Address Assignment

DHCP

Security

Secure Shell (SSH), 128 bit AES, 256 bit AES, H.235 v3, H.323, SRTP, IEEE 802.1X

Network Protocols

SSH, HTTP, HTTPS, SRTP, IPv6, IPv4, DNS, NTP

Dimensions & Weight Details

Codec - Width 47.3 cm Depth 20.2 cm Height 4.4 cm Weight 2.33 kg

Modem

Digital Signaling Protocol

H.460.18, H.460.19, H.323, BFCP, SIP

Data Compression Protocol

G.711, G.722, H.263, H.264, G.722.1

Features

DTMF decoding

Video Input

Type

Digital video camera (colour) - wall / ceiling mountable

Interface Type

1Gb Ethernet, HDMI

Digital Video Capture Resolution

3840 x 2160, 1920 x 1080

Video Modes

2160/30p, 1080/60p

Optical Zoom

Digital Zoom

Camera Mechanical Design

Pan / tilt / zoom

Features

AI-powered, -170° / +170° pan, -25° / +90° tilt, 80.5° field of view (horizontal), focus distance 1 m to infinity, F 1.8-3.6 lens aperture, Auto Focus, auto white balance, automatic brightness adjustment, multiple camera connections, PoE+ support, speaker tracking, security slot (Kensington security lock compatible)

Video Output

Type

Codec board - external

Max External Resolution

3840 x 2160

Supported Display Graphics

HDTV (1920x1080), UHD (3840 x 2160)

Digital Video Standard

High-Definition Multimedia Interface (HDMI)

Input Device

Type

10" touchscreen

Connectivity Technology

Wired

Networking

Type

Network adapter

Connectivity Technology

Wireless, wired

Data Link Protocol

Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth LE

Network / Transport Protocol

DNS, DHCP, HTTP, HTTPs, IPv4, IPv6, NTP

Features

Cisco Expressway technology, Certificate Authority Proxy Function (CAPF), Manufacturer-Installed Certificates (MIC), Locally Significant Certificates (LSC), DiffServ support, Quality of Service (QoS), flow control, auto gatekeeper discovery, DTMF support, URI Dialing, Class of Service (CoS), VLAN support, full duplex capability, DNS support, Network Timing Protocol (NTP), security slot (Kensington security lock compatible), 802.1x authentication, Wireless Screen Sharing

Compliant Standards

IEEE 802.3at, IEEE 802.3bt, IEEE 802.1x, IEEE 802.1Q, IEEE 802.1p, X.509

Expansion / Connectivity

Interfaces

1 x USB-C - 24 pin USB-C ¦ 3 x display / video - HDMI input - 19 pin HDMI Type A ¦ 3 x display / video - HDMI output - 19 pin HDMI Type A ¦ 3 x audio - input - mini-phone 3.5 mm 4-pole ¦ 1 x audio - output - mini-phone stereo 3.5 mm ¦ 4 x SuperSpeed USB 3.0 - 9 pin USB Type A ¦ 1 x USB - 5 pin Micro-USB Type A ¦ 2 x network - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ 4 x network - Ethernet 10Base-T/100Base-TX/1000Base-T (PoE++) - RJ-45 ¦ 1 x display / video - HDMI - 19 pin HDMI Type A

Miscellaneous

Mounting Kit

Included

Included Accessories

Wall mount

Software Certification

Cisco Webex Certified, Certified for Microsoft Teams Rooms

Compliant Standards

EDID compatible, CEC 2.0, Directive 2002/96/EU, Directive 2011/65/EU, Directive 2014/53/EU, FCC, FCC 47 CFR Part 15 B Class A, FCC CFR47 Part 15 C, FCC CFR47 Part 15 E, NRTL, RoHS, WEEE, EMC, X.509

Power

Voltage Required

AC 120/230 V

Software / System Requirements

Software Included

RoomOS 11.1.2 or later

Manufacturer Warranty

Service & Support

Limited warranty - 90 days

Environmental Parameters

Min Operating Temperature

0 °C
