Device Type

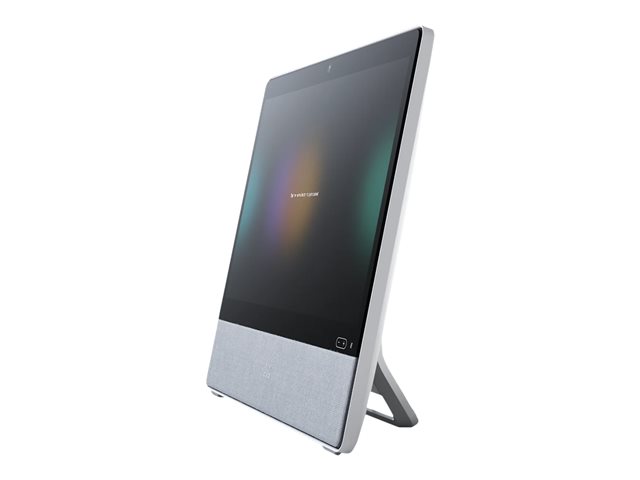

Video conferencing device
Voice Codecs
AAC-LD, Opus
Video Codecs
H.263, H.264
Quality of Service
IEEE 802.1Q (VLAN)
Native Resolution
1920 x 1080
Image Brightness
300 cd/m²
Image Contrast Ratio
1000:1
Monitor Features
Anti-glare, touch screen, ±89° horizontal viewing angle
Digital Signaling Protocol
H.323, SIP
Type
Digital video camera (colour) - integrated
Digital Video Capture Resolution
3840 x 2160
Features
Brightness control, tilt adjustment, privacy shutter, auto gain control, auto white balance, noise reduction, 50° field of view (vertical), 64° field of view (horizontal), 8 megapixels image sensor, 1/3.2 CMOS image sensor type, over 10 cm focus distance, F 2.0 lens aperture
Supported Display Graphics
UHD (3840 x 2160)
Type
4-microphone array - integrated
Frequency Response
80 - 20000 Hz
Connectivity Technology
Wireless, wired
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac
Network / Transport Protocol
HTTP
Compliant Standards
IEEE 802.3u, IEEE 802.3i, IEEE 802.3ab, G.711, G.722, G.729
Interfaces
1 x USB-C - DisplayPort input - 24 pin USB-C ¦ 1 x display / video - HDMI output - 19 pin HDMI Type A ¦ 2 x network - Ethernet 1000Base-T - RJ-45 ¦ 1 x USB 2.0 - 4 pin USB Type A ¦ 1 x USB 2.0 - 5 pin Micro-USB Type B
Cables Included
1 x USB-C cable - 1.8 m ¦ 1 x network cable - 3 m
Compliant Standards
FCC CFR47 Part 15 C, FCC CFR47 Part 15 B, NRTL, Directive 2011/65/EU, Directive 2002/96/EU, Directive 2014/35/EU, Directive 2014/30/EU, FCC CFR47 Part 15 E, Directive 2014/53/EU
Power Device
Power supply
Voltage Required
AC 120/230 V (50/60 Hz)
Software / System Requirements
Software Included
Cisco Webex Room OS
Dimensions & Weight (Shipping)
Service & Support
Limited warranty - 90 days
Min Operating Temperature
0 °C
Max Operating Temperature
35 °C
Humidity Range Operating
20 - 90% RH
