Cisco Webex Board Pro 75 G2

Name: Cisco Webex Board Pro 75 G2
Brand: CISCO
SKU: ECE10388113
Price: 26939.76 EUR
Availability: InStock

View all CISCO Video Conferencing - Visit the CISCO Store (CS-BRDP75-K9) - (ECE10388113)

Model: Cisco Webex

Webex Board Pro 75 G2 - Video conferencing device - Certified for Microsoft Teams Rooms

Integrated audiovisual experience
Seamless connectivity
Advanced security features
High-definition display
Interactive collaboration

FREE Delivery on orders over €250

1 Available to Ship
Order within 14Hrs 34Mins for: FREE Delivery (8 Jun or 9 Jun)

RRP ~~€36359.45~~

€26939.76 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

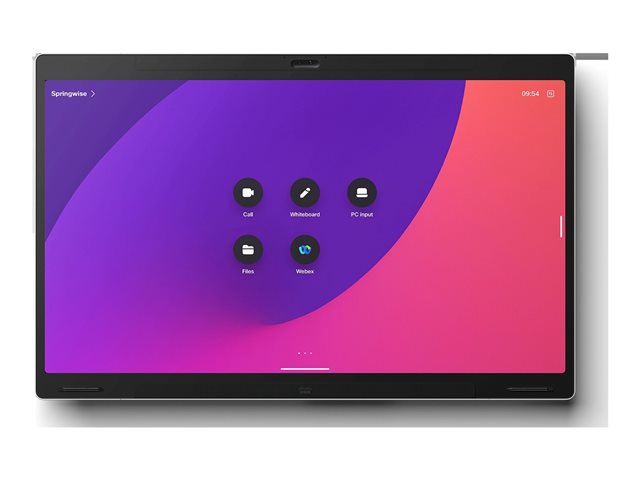

The Cisco Webex Board Pro 75 G2 redefines the standards of video conferencing with its features designed for modern workplaces. This device combines a high-definition 75-inch display with 4K resolution, ensuring that every detail is visible with clarity. The integrated audio system, featuring a 14 microphone array and stereo speakers, captures and delivers clear sound, making every communication as if happening in the same room.

Designed for collaborative efforts, it includes dual cameras for comprehensive room coverage, a multi-touch screen, and digital pens for interactive sessions. Security is paramount, with advanced encryption and compliance standards met to protect your data. With its seamless connectivity options, including HDMI, USB-C, Ethernet, and wireless capabilities, the Board Pro 75 G2 integrates effortlessly into any setup. Certified for Microsoft Teams Rooms, it promises a unified and efficient conferencing solution, making it an indispensable tool for businesses aiming to enhance their communication and collaboration.

Specification Summary

Product Description

Cisco Webex Board Pro 75 G2 - video conferencing device

Device Type

Video conferencing device

VoIP Protocols

H.323, SIP, SRTP

Codec

H.264 AVC, H.265, H.263, H.239, G.711, G.722, G.722.1, G.729, AAC-LD, Opus

Dimensions (WxDxH)

171.9 cm x 8.6 cm x 110.2 cm

Weight

72 kg

Display

75" IPS / 3840 x 2160

Digital Signaling Protocol

H.460.18, H.460.19, H.323, SIP, H.239, BFCP

Data Compression Protocol

H.264, H.265, H.263, G.711, G.722, G.722.1, G.729, H.239

Video Input

Dual digital video camera - HDMI, USB

Audio Input

14 microphones - beamforming

Audio Output

Speaker(s)

Input Device

2 digital pens (wireless)

Networking

Network adapter - Fast Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6E), Bluetooth, Bluetooth LE

Power

AC 100-240 V (50/60 Hz)

Software Certification

Certified for Microsoft Teams Rooms

Manufacturer Warranty

90 days warranty

Specifications

EAN / GTIN:

889728509671

General

Device Type

Video conferencing device

VoIP Protocols

H.323, SIP, SRTP

Voice Codecs

G.711, G.722, G.722.1, G.729, AAC-LD, Opus

Video Codecs

H.264 AVC, H.265, H.263, H.239

Quality of Service

IEEE 802.1Q (VLAN), IEEE 802.1p

IP Address Assignment

DHCP

Security

TLS, H.323, 128 bit AES, 256 bit AES, SRTP, WPA3, WPA3-Enterprise, AES-CCMP

Network Protocols

DHCP, IPv4, NTP, HTTP, HTTPS, TLS, Cisco Discovery Protocol (CDP), IEEE 802.1x, SIP, SSH, DNS, SRTP

Width

171.9 cm

Depth

8.6 cm

Height

110.2 cm

Weight

72 kg

Dimensions & Weight Details

Mount - Weight 5.8 kg

Built-in Devices

14 microphone array, dual camera, capacitive touch screen, stereo speakers, subwoofer

Display

Technology

IPS

Diagonal Size

75"

Native Resolution

3840 x 2160

Image Aspect Ratio

16:9

Image Brightness

350 cd/m²

Image Contrast Ratio

1000:1

Response Time

8 ms

Monitor Features

LED Technology, ±89° viewing angle, multi-touch screen, 10-bit Colour Depth

Modem

Digital Signaling Protocol

H.460.18, H.460.19, H.323, SIP, H.239, BFCP

Data Compression Protocol

H.264, H.265, H.263, G.711, G.722, G.722.1, G.729, H.239

Video Input

Type

Dual digital video camera (colour) - integrated

Interface Type

HDMI, USB

Digital Video Capture Resolution

3840 x 2160

Video Modes

Digital Zoom

Features

AI-powered, 48 megapixels resolution, 70° horizontal field of view (main camera), 50° vertical field of view (main camera), AI noise reduction, intelligent multi-participant framing, 30 fps, F 1.8 lens aperture (main camera), 1/3 CMOS image sensor type, auto focus lens (VCM) (main-camera), 112° horizontal field of view (ultra-wide camera), 94° vertical field of view (ultra-wide camera), fixed focus (ultra-wide camera), 802.1x authentication, Acoustic Echo Cancellation (AEC), auto AGC, Ultrasound technology

Video Output

Supported Display Graphics

UHD (3840 x 2160)

Digital Video Standard

High-Definition Multimedia Interface (HDMI)

Audio Input

Type

14 microphones - integrated

Microphone Operation Mode

Beamforming

Audio Output

Type

Speaker(s)

Frequency Response

75 - 20000 Hz

Input Device

Type

2 digital pens

Connectivity Technology

Wireless

Networking

Type

Network adapter

Connectivity Technology

Wireless, wired

Data Link Protocol

Fast Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6E), Bluetooth, Bluetooth LE

Network / Transport Protocol

DHCP, IPv4, IPv6, NTP, HTTP, HTTPs, DNS

Features

BYOD mode, Cisco Expressway technology, firewall protection, 2x2 MIMO technology, full duplex mode, WebRTC, DiffServ support, Certificate Authority Proxy Function (CAPF)

Compliant Standards

IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.3af, IEEE 802.11d, X.509, IEEE 802.1Q, IEEE 802.1p

Expansion / Connectivity

Interfaces

1 x display / video - HDMI input - 19 pin HDMI Type A ¦ 2 x display / video - HDMI output - 19 pin HDMI Type A ¦ 1 x display / video - input - 24 pin USB-C ¦ 2 x network - Ethernet 1000Base-T - RJ-45 ¦ 1 x network - Ethernet 1000Base-T (PoE) - RJ-45 ¦ 2 x audio - line-In - mini-phone 3.5 mm ¦ 1 x audio - line-out - mini-phone 3.5 mm ¦ 1 x USB 2.0 - 4 pin USB Type A ¦ 1 x USB - Micro-USB 2.0

Miscellaneous

Mounting Kit

Included

Included Accessories

Wall mount kit, lifting handles

Software Certification

Certified for Microsoft Teams Rooms

Compliant Standards

HDCP, IPv6, MIC, Directive 2014/30/EU, Directive 2014/53/EU, Directive 2014/35/EU, Directive 2011/65/EU, RoHS, WEEE, NRTL, FCC, FCC 47 CFR Part 15 B Class A, FCC CFR47 Part 15 C, FCC CFR47 Part 15 E

Power

Voltage Required

AC 100-240 V (50/60 Hz)

Manufacturer Warranty

Service & Support

Limited warranty - replacement - 90 days

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

40 °C

Humidity Range Operating

20 - 90% RH (non-condensing)
