Device Type

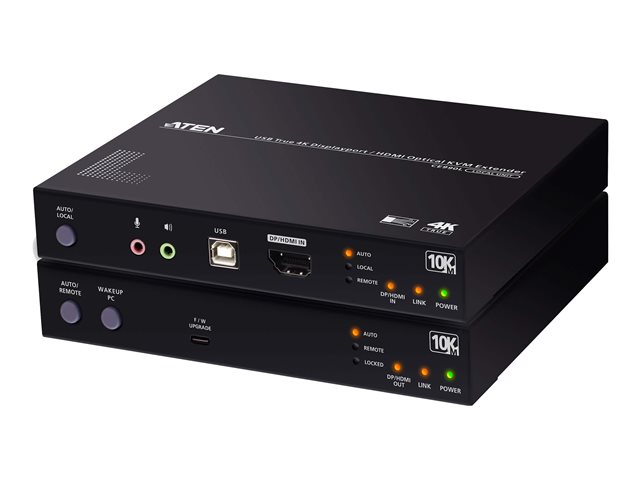

KVM / audio extender
Form Factor
Rack-mountable
Connectivity Technology
Wired
Data Link Protocol
10Mb LAN, 100Mb LAN, 1GbE, HDMI, DisplayPort, USB, 1Gb Fibre Channel
Data Transfer Rate
10 Gbps
Keyboard / Mouse Interface
USB
Max Resolution
4096 x 2160 @ 60 Hz
Max Transfer Distance
10 km
Status Indicators
Link, power, video, console, status
Features
4K resolution support, metal housing, Dolby TrueHD support, Dolby Digital Plus support, DTS-HD Master Audio support, HDR10 support, HDR 4K60 4:4:4 compatible, LPCM 7.1 support, Bi-Directional (BiDi), firmware upgradable, 15KV ESD Protector, 8KV ESD Protector
Compliant Standards
HDCP 2.2, HDCP 2.3
Interfaces
4 x USB (local unit) - Type A female ¦ 2 x DisplayPort/HDMI combo (local unit) female ¦ 2 x audio (local unit) - mini jack female ¦ 1 x USB keyboard / USB mouse (local unit) - Type B female ¦ 1 x RS-232 (local unit) - DB-9 ¦ 1 x (local unit) - LC single-mode female x 2 ¦ 4 x USB (remote unit) - Type A female ¦ 1 x DisplayPort/HDMI combo (remote unit) female ¦ 2 x audio (remote unit) - mini jack female ¦ 1 x RS-232 (remote unit) - DB-9 ¦ 1 x (remote unit) - LC single-mode female x 2
Included Accessories
2 x SFP modules, 2 mounting kits, 8 foot pads, 2 x power cords, 3 x HDMI combo port cable lock
Cables Included
1 x DisplayPort cable ¦ 1 x HDMI cable ¦ 1 x microphone cable ¦ 1 x speaker cable ¦ 1 x USB-A to USB-B cable
Compliant Standards
EDID compatible, Plug and Play
Power Device
External power adapter
Dimensions (WxDxH) / Weight Details
Local unit: 15.62 cm x 17.82 cm x 2.88 cm / 850 g ¦ Remote unit: 15.62 cm x 17.82 cm x 2.88 cm / 840 g
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
0 - 80% RH (non-condensing)
