Overview

Range/Series Overview


IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

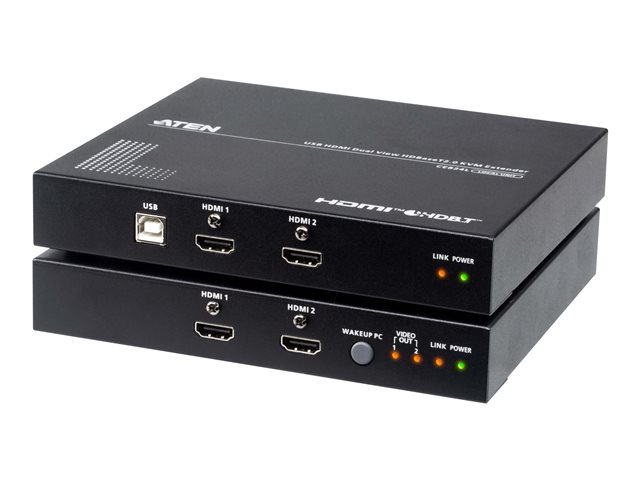

The ATEN CE824 is a versatile KVM extender that caters to various connectivity needs. It includes multiple cable types, such as HDMI, microphone, speaker, and USB-A to USB-B, allowing for seamless integration in diverse environments. Designed for effective transmission over distances up to 100 meters, it utilizes protocols like HDBaseT 2.0 and supports Gigabit Ethernet for reliable performance.

Operating within a temperature range of 0°C to 40°C and featuring a humidity tolerance of up to 80% RH, the CE824 ensures stable functioning in challenging conditions. With support for dual display configurations and video resolutions of up to 4096 x 2160 at 30 Hz, it offers a robust solution for high-definition video applications. The included rack mounting kit and metal housing enhance its durability and installation flexibility, making it a suitable choice for professional settings.


Features Summary

  • Robust connectivity options
    The ATEN CE824 features a variety of cable types, including HDMI, microphone, speaker, and USB-A to USB-B, ensuring compatibility with multiple devices.
  • Extended transmission range
    With a maximum transfer distance of 100 meters, this KVM extender allows for flexible setup in expansive work environments.
  • Stable performance
    Operating effectively in temperatures ranging from 0°C to 40°C and humidity levels of 0 to 80% RH, the CE824 is designed for dependable operation in various conditions.
  • Enhanced video capabilities
    This device supports video resolutions of up to 4096 x 2160 at 30 Hz, delivering clear visuals for professional applications.
  • Advanced protection features
    The CE824 is equipped with 15KV air-gap ESD protection and 8KV contact discharge protection, ensuring the device remains safe from electrical surges.

Specification Summary

Product Description
ATEN CE824 - KVM extender - HDBaseT 2.0, 10Mb LAN, 100Mb LAN, 1GbE
Device Type
KVM extender - USB
Form Factor
Rack-mountable
Cabling Type
1000Base-T
Data Link Protocol
HDBaseT 2.0, 10Mb LAN, 100Mb LAN, 1GbE
Transmission Medium
CAT 6/6a
Max Transfer Distance
100 m
Power
DC 12 V

Specifications

EAN / GTIN:
4711581520653
General
Device Type
KVM extender
Form Factor
Rack-mountable
Networking
Connectivity Technology
Wired
Cabling Type
1000Base-T
Data Link Protocol
HDBaseT 2.0, 10Mb LAN, 100Mb LAN, 1GbE
Keyboard / Mouse Interface
USB
Max Resolution
4096 x 2160 @ 30 Hz
Max Transfer Distance
100 m
Status Indicators
Link, power, video
Features
EDID Buffer, 4K30 8-bit 4:4:4 compatible, long reach mode switch, dual display support, metal housing, 15KV ESD Protector (air-gap discharge), 8KV ESD Protector (contact discharge), HDCP compliant
Expansion / Connectivity
Interfaces
2 x HDMI (local unit) - 19 pin HDMI Type A female ¦ 1 x USB (local unit) - Type B female ¦ 2 x audio line-in / microphone (local unit) - mini jack female ¦ 1 x RS-232 (local unit) - DB-9 female ¦ 1 x power (local unit) - DC-Jack female ¦ 1 x HDBaseT (local unit) - RJ-45 female ¦ 2 x HDMI (remote unit) - 19 pin HDMI Type A female ¦ 4 x USB (remote unit) - Type A female ¦ 2 x audio line-in / microphone (remote unit) - mini jack female ¦ 1 x RS-232 (remote unit) - DB-9 female ¦ 1 x HDBaseT (remote unit) - RJ-45 female ¦ 1 x power (remote unit) - DC-Jack female
Miscellaneous
Included Accessories
8 foot pads
Cables Included
2 x HDMI cable ¦ 1 x microphone cable ¦ 1 x speaker cable ¦ 1 x USB-A to USB-B cable
Rack Mounting Kit
Included
Power
Power Device
External power adapter
Installed Qty
2
Voltage Required
DC 12 V
Power Consumption Operational
10.32 watt
Dimensions & Weight
Dimensions (WxDxH) / Weight Details
Local unit: 15.59 cm x 17.42 cm x 2.88 cm / 790 g ¦ Remote unit: 15.59 cm x 17.42 cm x 2.88 cm / 820 g
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
0 - 80% RH (non-condensing)
