Startech USB C Multiport Adapter, USB-C to 4K HDMI or VGA Display/Video/Monitor with 100W Power Delivery Pass-through, 10Gbps USB Hub, MicroSD, Ethernet, USB 3.1 Gen 2 Type-C Mini Dock - Works w/ Thunderbolt 3 (CDP2HVGUASPD)

Connect a 4K HDMI or 1080p VGA Monitor
Presentation Mode Switch
100W Power Delivery 3.0 Passthrough
Add Downstream USB-A & USB-C Ports
MicroSD 4.0 Card Reader

FREE Delivery on orders over €250

3 Available to Ship
Order within 13Hrs 36Mins for: Delivery (8 Jun or 9 Jun)

RRP ~~€86.64~~

€63.39 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

This USB-C multiport adapter with HDMI/VGA lets you add vital connections to your MacBook or Windows laptop, through a single USB-C port. The adapter features a presentation mode switch, that when activated ensures the computer will not go into sleep standby or hibernation.

Features Summary

Connect a 4K HDMI or 1080p VGA Monitor
For maximum productivity, connect your USB-C or Thunderbolt 3 laptop to a 4K 30Hz monitor, using this USB-C to 4K HDMI / 1080p VGA multiport adapter. You can also connect to an HDMI projector or TV in a boardroom or other meeting space, to deliver presentations on a shared screen.
Presentation Mode Switch

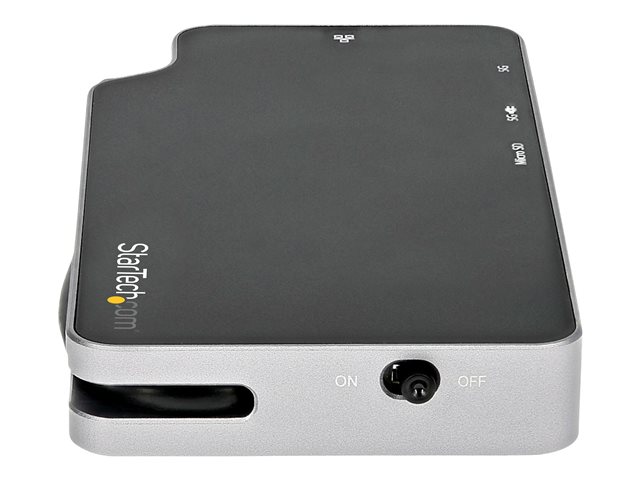

When you turn on this switch, the USB-C to HDMI adapter prevents your computer from launching its screen saver, going to sleep, or entering power save mode while presenting. Plus, the built-in MicroSD card reader can be used as external storage - ideal for storing & delivering presentations at boardroom/conference room meetings. • Left Switch Position: Enables Presentation Mode • Right Switch Position: Disables Presentation Mode
100W Power Delivery 3.0 Passthrough
The USB-C adapter lets you power and charge your USB-C laptop during a presentation or while you're working, with a USB-C Power Delivery port. Even if your laptop has only a single USB-C port available, you can keep your laptop powered. Device reserves 15 watts, avoiding video flicker, device dropouts and power overdraw which is commonly seen in other hubs with less reliable power distribution.
Add Downstream USB-A & USB-C Ports
This USB-C multiport adapter offers a USB 3.2 Gen 2 Type-A port (10Gbps), and a USB-C 3.2 Gen 2 port that can be used for power delivery charging, or if power delivery is not required, can be used as a 10Gbps data port for connecting USB-C peripherals.
MicroSD 4.0 Card Reader
This USB-C multiport adapter features a memory card slot, providing fast read and write access for microSD memory cards through USB 3.0. It's ideal for transferring photos, videos or presentations from your SD cards to your USB-C enabled laptop or tablet.

Specification Summary

Product Description

Product Type

Docking station

Docking Interface

USB-C 3.1 Gen 2 / Thunderbolt 3

Video Interfaces

VGA, HDMI

Dimensions (WxDxH)

12.5 cm x 6.8 cm x 1.6 cm

Weight

124.3 g

Colour

Grey, black

Networking

Gigabit Ethernet

Manufacturer Warranty

3-year warranty

Specifications

EAN / GTIN:

0065030875493

General

Product Type

Docking station

Width

12.5 cm

Depth

6.8 cm

Height

1.6 cm

Weight

124.3 g

Enclosure Colour

Grey, black

Video

Max Resolution Details

4096 x 2160 - 30 Hz (HDMI only) ¦ 1920 x 1080 - 60 Hz (VGA only)

Networking

Data Link Protocol

Ethernet, Fast Ethernet, Gigabit Ethernet

Compliant Standards

IEEE 802.3u, IEEE 802.3i, IEEE 802.3ab, USB 3.1 Gen 2

Expansion / Connectivity

Expansion Slots

1 (total) / 1 (free) x microSD

Interfaces

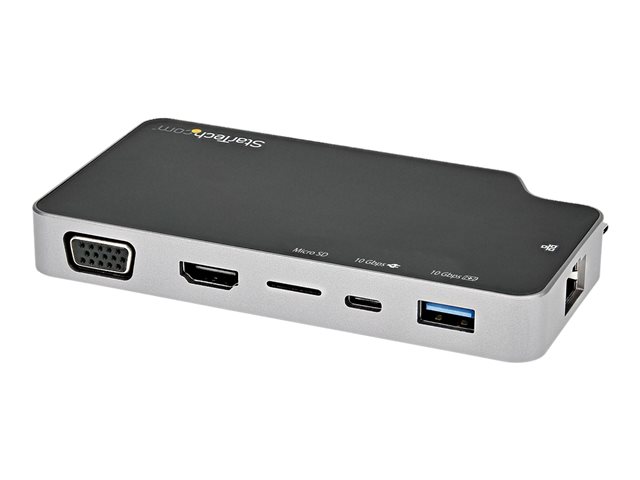

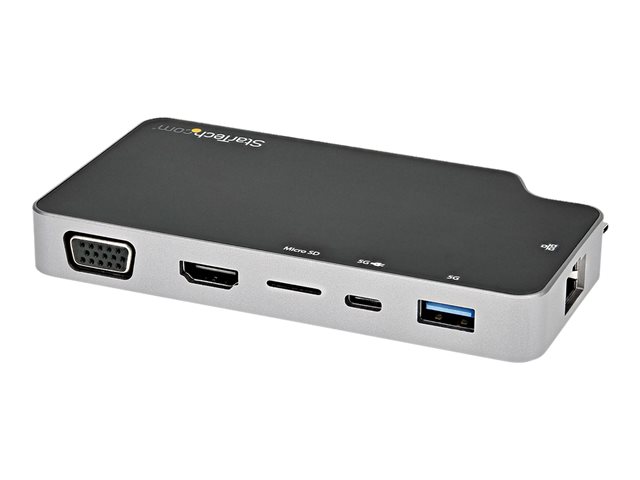

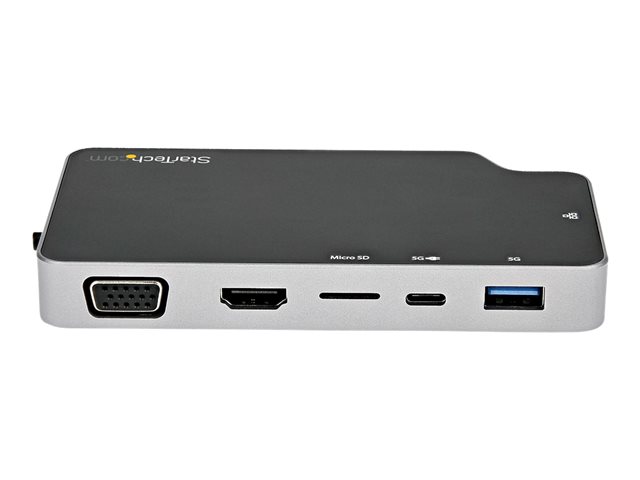

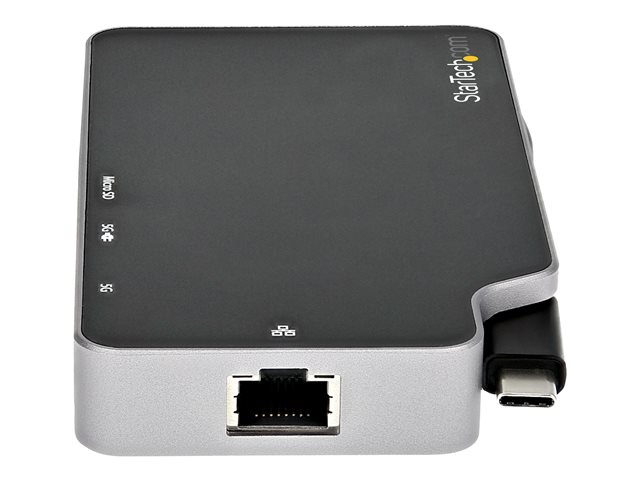

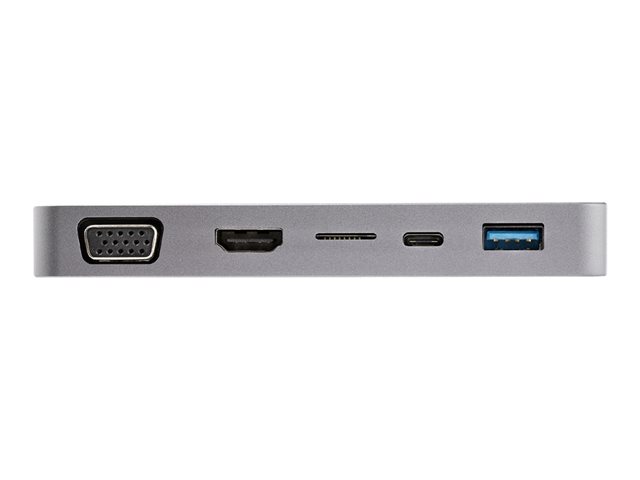

1 x display / video - VGA - 15 pin HD D-Sub (HD-15) without pin 9 ¦ 1 x display / video - HDMI - 19 pin HDMI Type A ¦ 1 x USB-C 3.1 Gen 2 with Power Delivery (85 W) - 10 pin USB-C ¦ 1 x USB 3.1 Gen 2 with Battery Charging 1.2 - 9 pin USB Type A ¦ 1 x network - 10Base-T/100Base-TX/1000Base-T - RJ-45

Miscellaneous

Input Device

microSD card reader

Cables Included

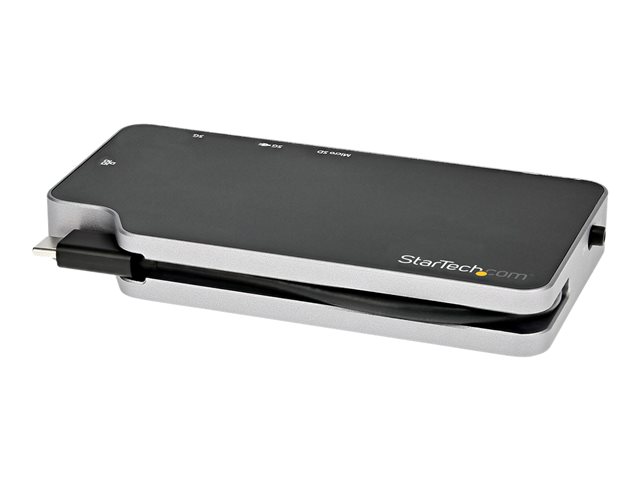

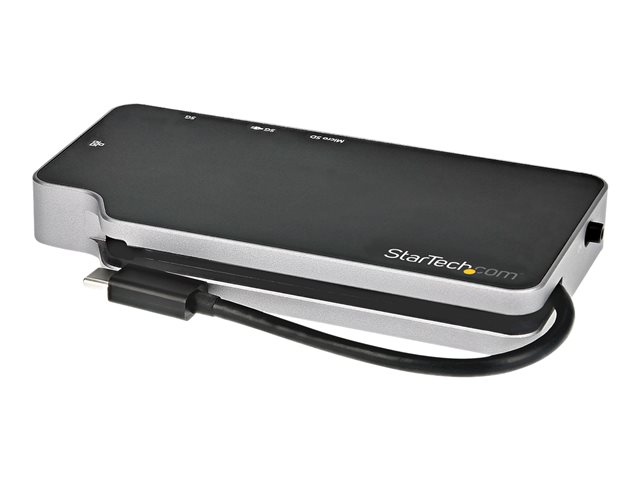

1 x USB-C cable - integrated - 13 cm

Features

Wake on LAN, LED indicator, Preboot Execution Environment (PXE) support, Presentation Mode, aluminium/plastic enclosure, 100W power delivery (pass-through)

Compliant Standards

FCC, RoHS, USB Battery Charging Specification Rev. 1.2, USB Power Delivery 3.0

System Requirements

OS Required

Apple MacOS X 10.9 - 10.12, Apple macOS 11.0, Apple MacOS X 10.14 - 10.15, Microsoft Windows 7 / 8 / 8.1 / 10 / 11, Apple macOS 12.0, Apple macOS 13.0

Manufacturer Warranty

Service & Support

Limited warranty - 3 years

Dimensions & Weight (Shipping)

Shipping Width

14.2 cm

Shipping Depth

17 cm

Shipping Height

3 cm

Shipping Weight

138.3 g

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

70 °C
