ViewSonic CDE9831-1C CDE31 Series

View all VIEWSONIC Digital Signage | Large Displays - Visit the VIEWSONIC Store (CDE9831-1C) - (MMECP70033)

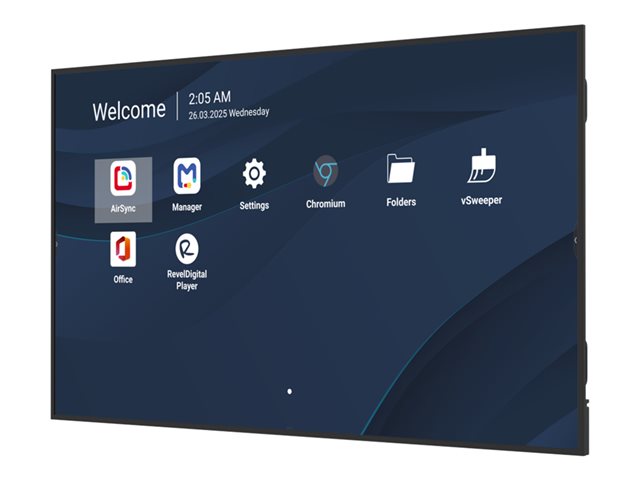

CDE9831-1C CDE31 Series - 98" LED-backlit LCD display - 4K - for digital signage

Resolution
Connectivity
Design for continuous use
Audio performance
Operation efficiency

HOT

FREE Delivery on orders over €250

1 Available to Ship
Order within 5Hrs 24Mins for: FREE Delivery (8 Jun or 9 Jun)

€4726.28 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

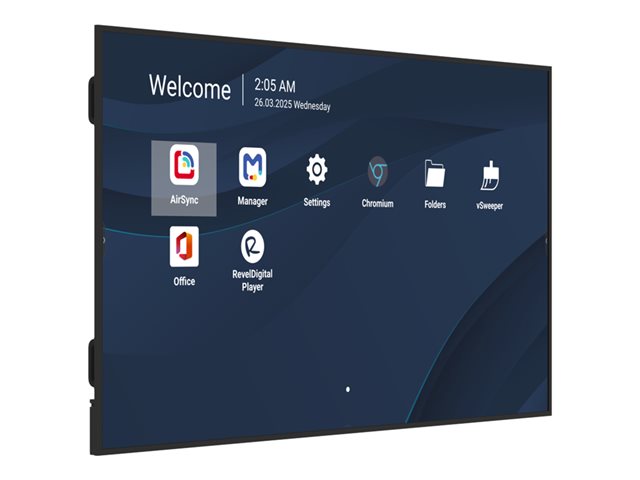

The ViewSonic CDE9831-1C is a 98-inch LED-backlit LCD flat panel display designed for commercial use, featuring a resolution of 3840 x 2160 for image clarity. It offers a refresh rate of 60 Hz and a dynamic contrast ratio of 5000:1 that provides vibrant visuals. This display is suitable for digital signage, ensuring performance with 24/7 operation capabilities.

Equipped with connectivity options, including three HDMI ports, USB-C with DisplayPort 1.2, and an array of audio inputs and outputs, the CDE9831-1C meets diverse media and connectivity needs. The built-in 32-watt audio system enhances the viewing experience, while the anti-glare coating and extensive viewing angles make it suitable for various environments. With compliance to environmental standards such as ENERGY STAR and EPEAT Gold, this model prioritizes energy efficiency and sustainability.

Features Summary

Resolution
With a resolution of 3840 x 2160, the CDE9831-1C delivers visuals that enhance detail and clarity for a captivating viewing experience.
Connectivity
Offering a range of connection types, including HDMI, USB-C, and LAN, this display integrates into various setups, accommodating multimedia needs.
Design for continuous use

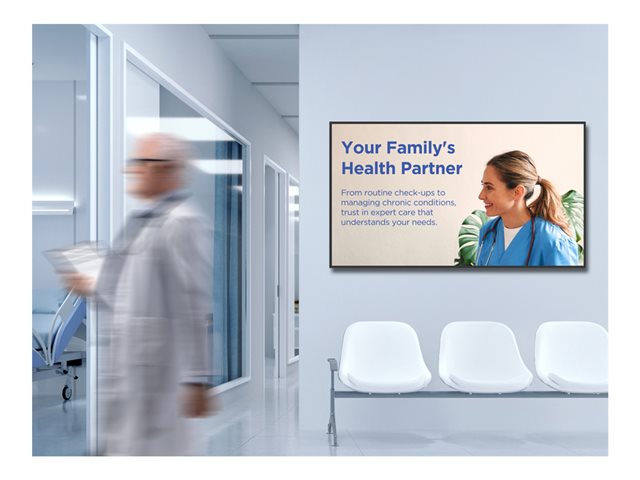

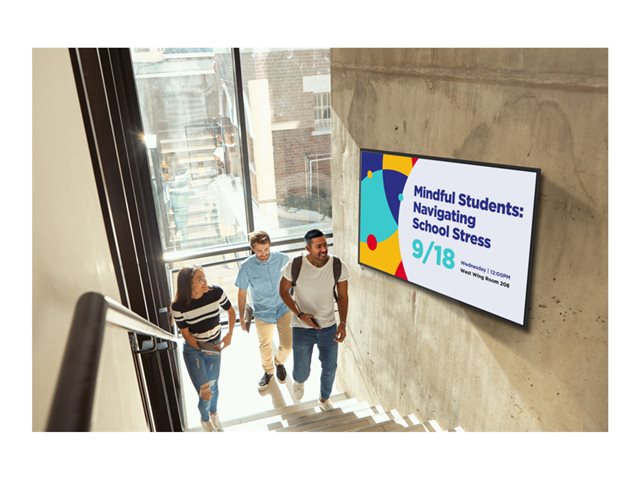

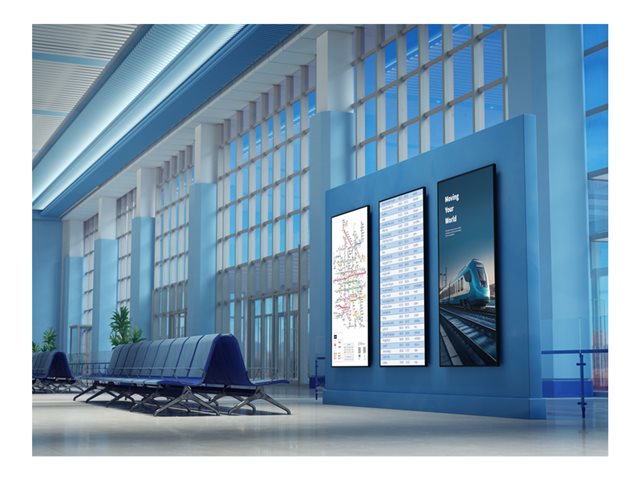

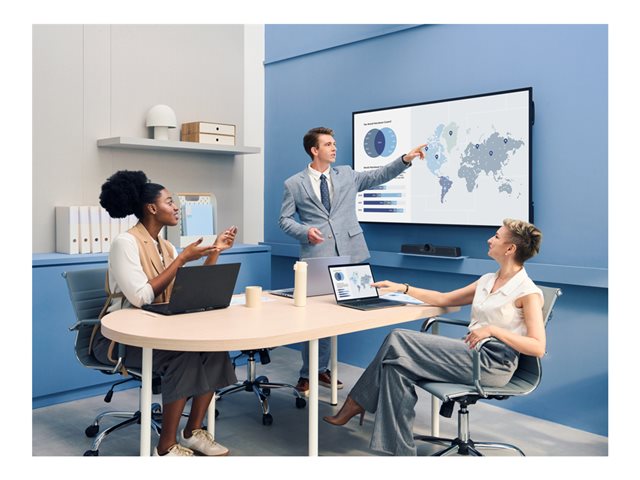

This display is engineered for 24/7 operation, making it ideal for environments that require constant visual engagement, such as retail and corporate settings.
Audio performance
The built-in speaker system provides a total output power of 32 watts, ensuring clear and powerful sound to complement the visual performance.
Operation efficiency
The CDE9831-1C is ENERGY STAR certified and meets EPEAT Gold standards, demonstrating a commitment to eco-friendly operation while reducing energy costs.

Specification Summary

Product Description

ViewSonic CDE9831-1C CDE31 Series - 98" LED-backlit LCD display - 4K - for digital signage

Product Type

LED-backlit LCD flat panel display with built-in media player / optional slot-in PC capability

Diagonal Class

98"

Commercial Use

Yes - digital signage

Resolution

3840 x 2160

Display Format

4K UHD (2160p)

Frame Rate & Enhancement Technology

60 Hz Refresh Rate

Video Interface

HDMI

HDMI Ports Qty

3 ports

Connectivity

LAN

PC Interface

Serial RS-232, USB-C

LCD Backlight Technology

Direct-lit LED

Image Aspect Ratio

16:9

TV Tuner

No tuner

Speaker System

2 speakers

Storage Capacity

32 GB

USB

Yes

Included Accessories

Remote control, remote control, batteries, RS232 adapter, 5 clamps, 4 screws

Voltage

AC 100-240 V

Power Consumption Operational

130.3 watt

Dimensions (WxDxH)

219.89 cm x 6.86 cm x 125.46 cm

Weight

53.9 kg

Environmental Standards

ENERGY STAR Qualified, EPEAT Gold

Specifications

EAN / GTIN:

0766907034752

General

Product Type

LED-backlit LCD flat panel display

Power Consumption Operational

130.3 watt

Diagonal Class

98"

Commercial Use

Yes - digital signage

Combined With

Built-in media player / optional slot-in PC capability

Series

CDE31 Series

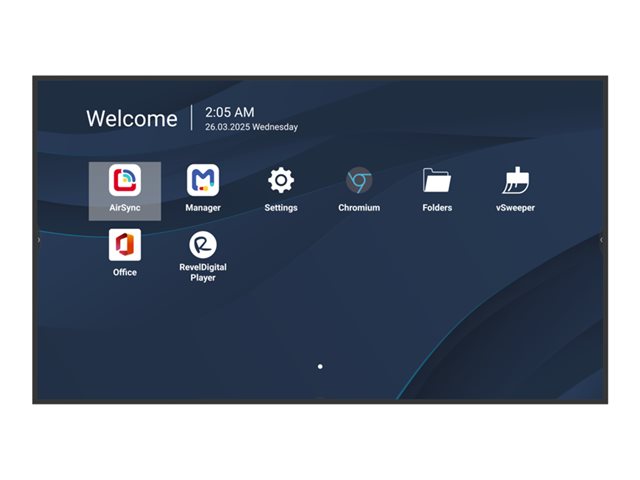

Operating System

Android 14 AOSP

TV Tuner

No tuner

TV Tuner Presence

Video Interface

HDMI

HDMI Ports Qty

3 ports

PC Interface

Serial RS-232, USB-C

Modes

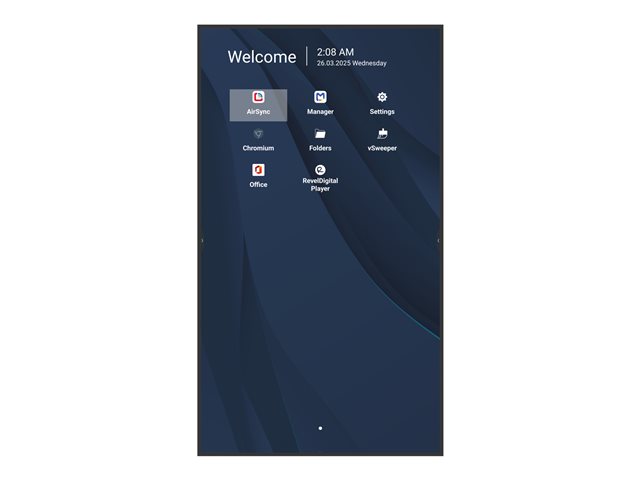

Portrait mode, landscape mode

Width

219.89 cm

Depth

6.86 cm

Height

125.46 cm

Weight

53.9 kg

Display

Resolution

3840 x 2160

Display Format

4K UHD (2160p)

Image Aspect Ratio

16:9

Frame Rate & Enhancement Technology

60 Hz Refresh Rate

LCD Backlight Technology

Direct-lit LED

Coating

Anti-glare, 3H Hard, 25% haze

Image Contrast Ratio

1200:1

Dynamic Contrast Ratio

5000:1

Brightness

500 cd/m²

Viewing Angle

178 degrees

Viewing Angle (Vertical)

178 degrees

Response Time

8 ms

Backlight Life

50,000 hours

Operation Hours / Days

24 / 7

Features

8-bit+FRC, 24/7 operation time, WiFi slot, OPS Slot, remote management

Stands & Mounts

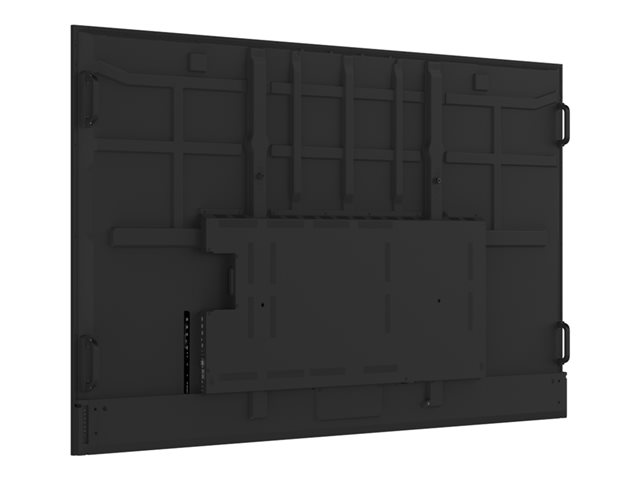

Flat Panel Mount Interface

800 x 400 mm

VESA Compatibility

Yes

Media Player

USB Port

Yes

Configuration

ARM Cortex-A73 Quad-Core - 8 GB DDR4 - 32 GB

Remote Control

Type

Remote control

Battery Form Factor

AAA type

Battery Included

Yes

Battery Included Qty

Audio System

Speaker System

2 speakers

Output Power / Total

32 watt

Speakers

2 x speaker - 16 watt

Network & Internet Multimedia

Connectivity

LAN

LAN Protocol

Fast Ethernet

Connections

Connector Type

2 x HDMI input - rear ¦ HDMI input - rear ¦ RS-232 input ¦ Audio line-in ¦ HDMI output ¦ USB-C with DisplayPort 1.2, Ethernet 100M, 65W Power Delivery ¦ SPDIF output ¦ Audio line-out ¦ 2 x LAN ¦ USB 2.0 ¦ USB 3.2 Gen 1

Miscellaneous

Included Accessories

Remote control, batteries, RS232 adapter, 5 clamps, 4 screws

Cables Included

HDMI cable - 3 m

Compliant Standards

cTUVus, FCC, ICES-003, EEI, CE/EMC, CB, EAC, UkrSEPRO, RCM, Green BOM, RoHS DoC, ErP-Eco, REACH, SCIP, WEEE, Annex I, Annex II, TPCH DoC

Sustainability Information

EPEAT Compliant

EPEAT Gold

ENERGY STAR Certified

Yes
