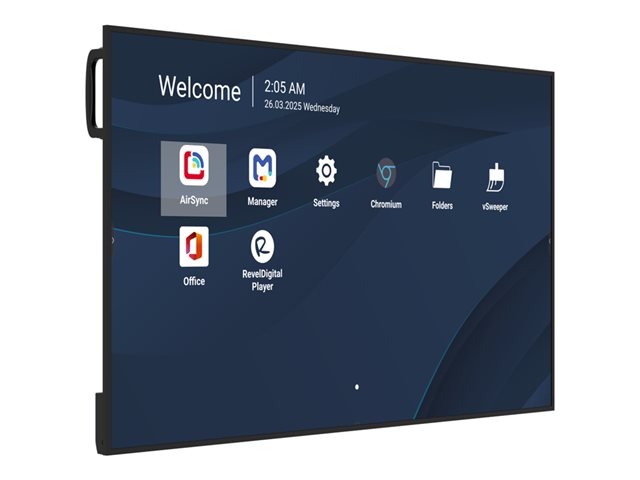

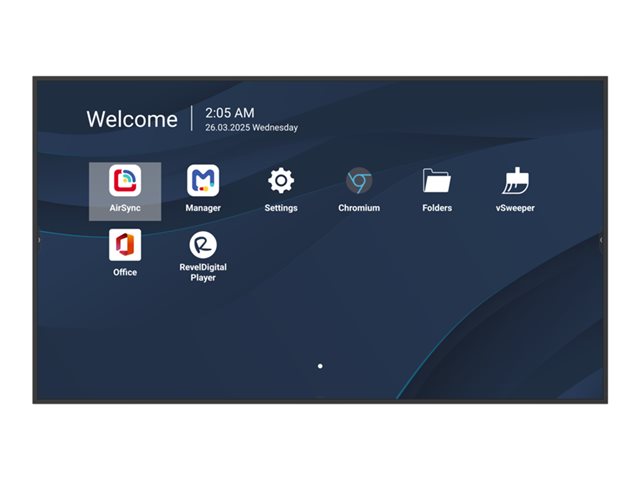

ViewSonic CDE5531-1C CDE31 Series

View all VIEWSONIC Digital Signage | Large Displays - Visit the VIEWSONIC Store (CDE5531-1C) - (MMECP69308)

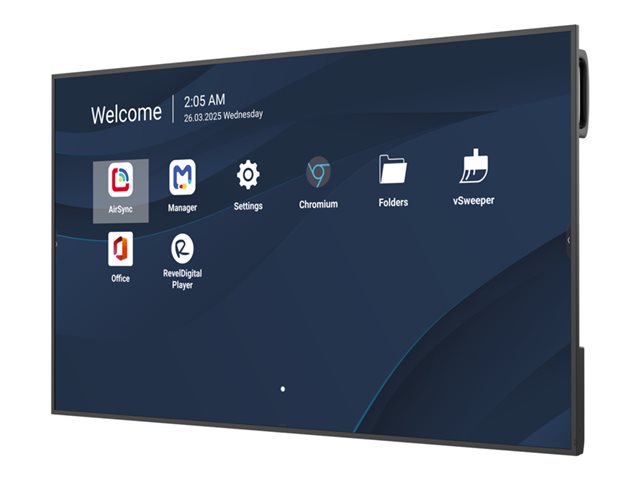

CDE5531-1C CDE31 Series - 55" LED-backlit LCD display - 4K - for digital signage

Vibrant 4K ultra high definition display
Multiple connectivity options
Robust design for continuous operation
Enhanced audio experience
Environmentally compliant

HOT

FREE Delivery on orders over €250

19 Available to Ship
Order within 6Hrs 55Mins for: FREE Delivery (8 Jun or 9 Jun)

€1109.76 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

The ViewSonic CDE5531-1C is a 55-inch LED-backlit LCD flat panel display designed for commercial use, offering vibrant visuals perfect for digital signage. With a 4K UHD (2160p) resolution and a brightness of 500 cd/m2, the display ensures that images are clear and compelling. The 60 Hz refresh rate and 6.5 ms response time contribute to smooth media playback, making it suitable for a variety of applications. Its robust construction allows for 24-hour operation, supporting continuous use in commercial environments.

Equipped with multiple connectivity options including three HDMI ports, USB-C, and an Ethernet port, managing content and connecting devices is straightforward. The display also features an anti-glare coating and a wide viewing angle of 178° both vertically and horizontally, making it easy for audiences to view content from different positions. The built-in speaker system delivers a total output power of 32 watts, enhancing the multimedia experience for viewers. This display is EPEAT Gold certified and ENERGY STAR certified, ensuring environmental compliance without sacrificing performance.

Specification Summary

Product Description

ViewSonic CDE5531-1C CDE31 Series - 55" LED-backlit LCD display - 4K - for digital signage

Product Type

LED-backlit LCD flat panel display with built-in media player / optional slot-in PC capability

Diagonal Class

55"

Commercial Use

Yes - digital signage

Resolution

3840 x 2160

Display Format

4K UHD (2160p)

Frame Rate & Enhancement Technology

60 Hz Refresh Rate

Video Interface

HDMI

HDMI Ports Qty

3 ports

Connectivity

LAN

PC Interface

Serial RS-232, USB-C

LCD Backlight Technology

Direct-lit LED

Image Aspect Ratio

16:9

TV Tuner

No tuner

Speaker System

2 speakers

Storage Capacity

32 GB

USB

Yes

Included Accessories

Remote control, remote control, batteries, RS232 adapter, 5 clamps, 4 screws

Voltage

AC 100-240 V

Power Consumption Operational

57.75 watt

Dimensions (WxDxH)

123.3 cm x 6.2 cm x 70.35 cm

Weight

12.95 kg

Environmental Standards

ENERGY STAR Qualified, EPEAT Gold

Specifications

EAN / GTIN:

0766907034707

General

Product Type

LED-backlit LCD flat panel display

Power Consumption Operational

57.75 watt

Diagonal Class

55"

Commercial Use

Yes - digital signage

Combined With

Built-in media player / optional slot-in PC capability

Series

CDE31 Series

Operating System

Android 14 AOSP

TV Tuner

No tuner

TV Tuner Presence

Video Interface

HDMI

HDMI Ports Qty

3 ports

PC Interface

Serial RS-232, USB-C

Modes

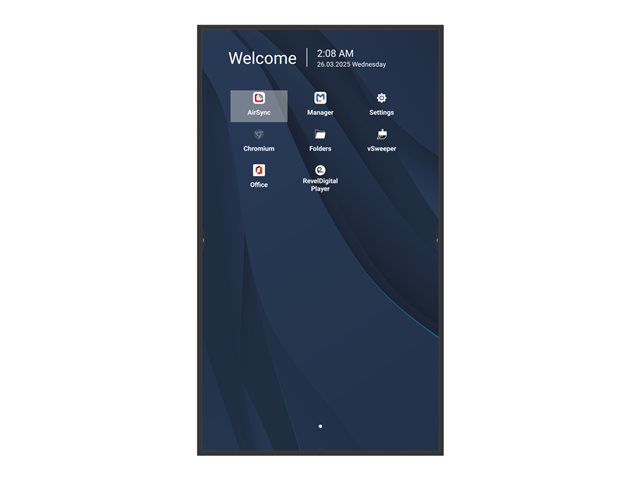

Portrait mode, landscape mode

Width

123.3 cm

Depth

6.2 cm

Height

70.35 cm

Weight

12.95 kg

Display

Resolution

3840 x 2160

Display Format

4K UHD (2160p)

Image Aspect Ratio

16:9

Frame Rate & Enhancement Technology

60 Hz Refresh Rate

LCD Backlight Technology

Direct-lit LED

Coating

Anti-glare, 3H Hard, 25% haze

Image Contrast Ratio

1200:1

Dynamic Contrast Ratio

5000:1

Brightness

500 cd/m²

Viewing Angle

178 degrees

Viewing Angle (Vertical)

178 degrees

Response Time

6.5 ms

Backlight Life

50,000 hours

Operation Hours / Days

24 / 7

Features

24/7 operation time, remote management, 8-bit + 2-bit FRC, WiFi slot

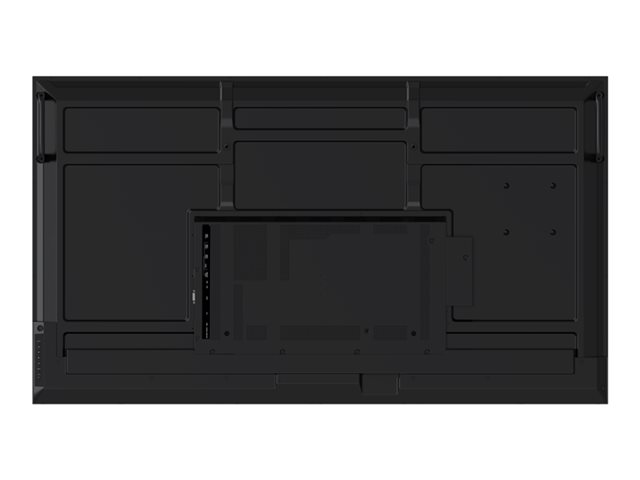

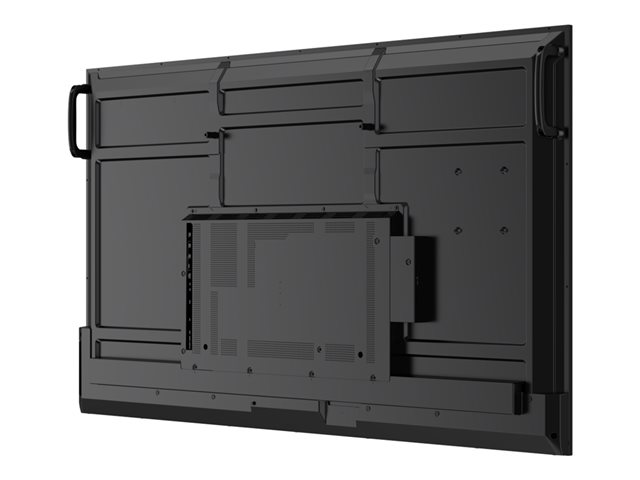

Stands & Mounts

Flat Panel Mount Interface

400 x 400 mm

VESA Compatibility

Yes

Media Player

USB Port

Yes

Configuration

ARM Cortex-A73 Quad-Core - 8 GB DDR4 - 32 GB

Remote Control

Type

Remote control

Battery Form Factor

AAA type

Battery Included

Yes

Battery Included Qty

Audio System

Speaker System

2 speakers

Output Power / Total

32 watt

Speakers

2 x speaker - 16 watt

Network & Internet Multimedia

Connectivity

LAN

LAN Protocol

Fast Ethernet

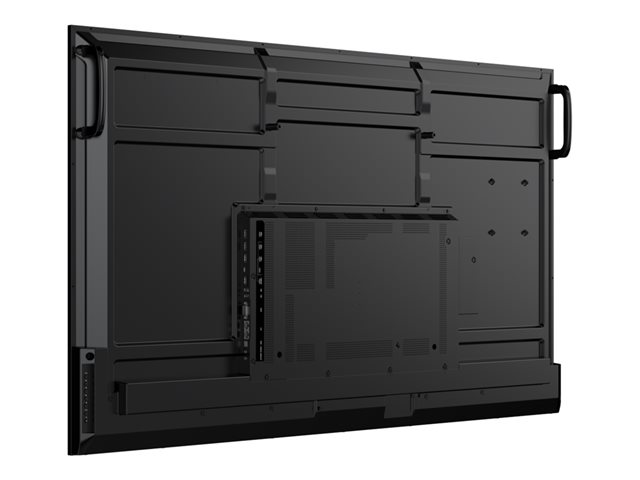

Connections

Connector Type

2 x HDMI input - rear ¦ HDMI input - rear ¦ RS-232 input ¦ Audio line-in ¦ HDMI output ¦ USB-C with DisplayPort 1.2, Ethernet 100M, 65W Power Delivery ¦ SPDIF output ¦ Audio line-out ¦ 2 x LAN ¦ 2 x USB 2.0

Miscellaneous

Included Accessories

Remote control, batteries, RS232 adapter, 5 clamps, 4 screws

Cables Included

HDMI cable - 3 m

Compliant Standards

cTUVus, FCC, ICES-003, EEI, CE/EMC, CB, EAC, UkrSEPRO, RCM, Green BOM, RoHS DoC, ErP-Eco, REACH, SCIP, WEEE, Annex I, Annex II, TPCH DoC

Sustainability Information

EPEAT Compliant

EPEAT Gold

ENERGY STAR Certified

Yes
