Device Type

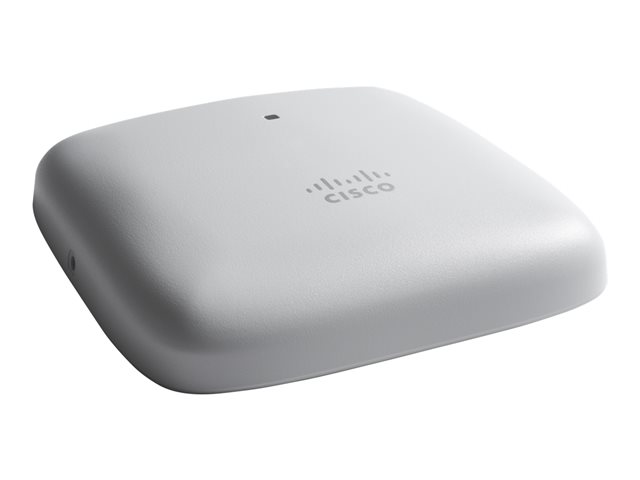

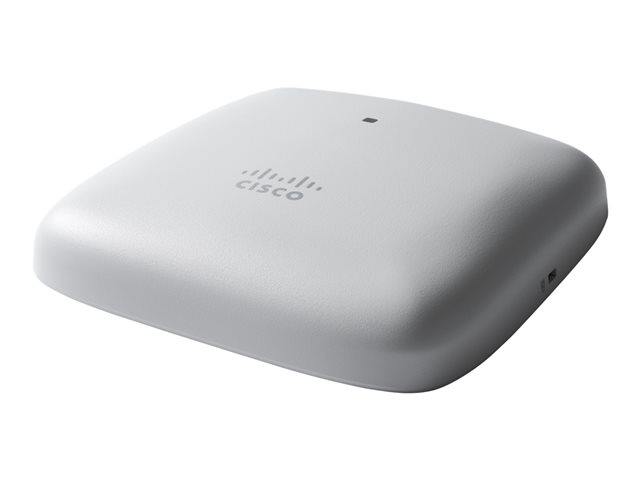

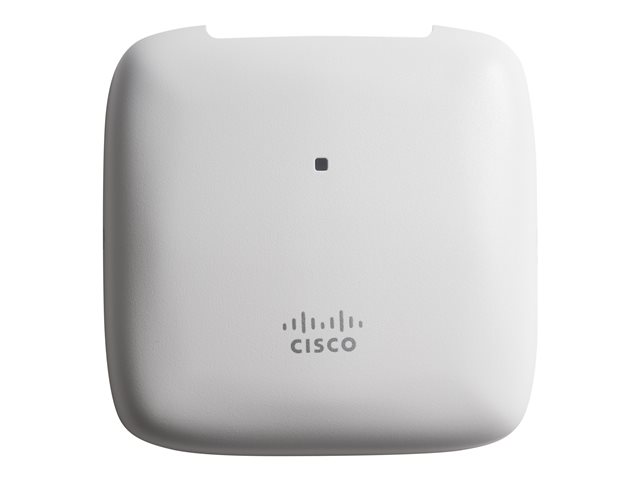

Radio access point
Processor / Memory / Storage
Connectivity Technology
Wireless
Data Link Protocol
IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2
Frequency Band
2.4 GHz, 5 GHz
Performance
Maximum data rate (5 GHz): 1733 Mbps
Capacity
Wireless clients per Wi-Fi radio: 200 ¦ Wireless clients: 400 ¦ VLANs supported: 16
Features
VLAN support, manageable, DFS support, Mesh networking, Wi-Fi Multimedia (WMM) support, RADIUS support, ceiling mountable, 802.1x authentication, beamforming technology, Authentication, Authorization and Accounting (AAA), 4x4 MU-MIMO technology
Encryption Algorithm
AES, TLS, PEAP, TTLS, WPA2, WPA3
Authentication Method
RADIUS, MS-CHAP v.2, Extensible Authentication Protocol (EAP), EAP-FAST
Compliant Standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11d, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, IEEE 802.11h, IEEE 802.11n, IEEE 802.3at, IEEE 802.11r, IEEE 802.11ac Wave 2, IEEE 802.11ac Wave 1
Directivity
Omni-directional
Interfaces
2 x 1000Base-T (PoE+) - RJ-45
Compliant Standards
EN55024, AS/NZS 60950-1, RSS-102, UL 2043, UL 60950-1, IEC 60950-1, EN 60950-1, VCCI V-3, CECP, EN 62209-1, SRRC, CNS 13438, EN 50385, EN 61000-3-3:2013, CISPR 24:2010, EN 62209-2, EN 60601-1-1, EN 61000-3-2:2014, LP0002, RSS-247, NRCAN, KN32, EN 55032:2012+AC:2013 Class A, TCVN 7189, EN 55032:2015, ICES-003 issue 6 Class B, CAN/CSA-C22.2 No. 60950-1, EN 301 489-17 V3.1.1 (2017), EN 300 328 V2.1.1, EN 55035, AS/NZS 2772, EN 301 489-1 V2.1.1:2017, AS/NZS CISPR 32:2015, CISPR 32:2015, ARPANSA, KN 61000-3-2, KN 61000-3-3, KN 489-1, QCVN, KN 489-17, RSP-100, RSS-GEN, EN 301 893 V2.1.1, AS/NZS 4268:2017
Power Over Ethernet (PoE) Supported
PoE+
Power Consumption Operational
13.2 watt
Service & Support
Limited warranty - replacement - lifetime
Min Operating Temperature
-30 °C
Max Operating Temperature
70 °C
Humidity Range Operating
10 - 90% (non-condensing)
