Cisco Business 220 Series CBS220-16P-2G - switch -

Images Manuals

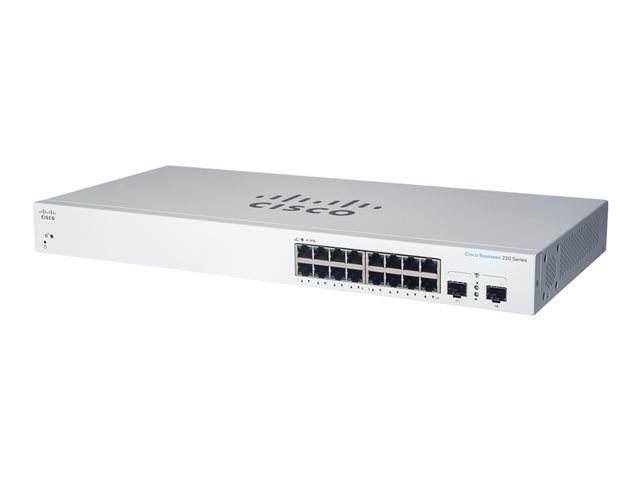

Images for illustrative purposes

Cisco Business 220 Series CBS220-16P-2G

Name: Cisco Business 220 Series CBS220-16P-2G
Brand: CISCO
SKU: ECE6689921
Price: 294.61 EUR
Availability: OutOfStock

View all CISCO Network Switches - Visit the CISCO Store (CBS220-16P-2G-EU) - (ECE6689921)

Model: Cisco Business

Business 220 Series CBS220-16P-2G - Switch - smart - 16 x 10/100/1000 (PoE+) + 2 x Gigabit SFP (uplink) - rack-mountable - PoE+ (130 W)

SWITCH PORTS
POWER-OVER-ETHERNET
SIMPLE
SECURITY
INNOVATIVE DESIGN

FREE Delivery on orders over €250

0 Available to Ship
Restock 26-Jun-2026 Estimated, Out of Stock Prices are Estimated.

RRP ~~€393.03~~

€294.61 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

The Cisco Business CBS220-16P-2G switch is simple and affordable smart switch for business-class network. CBS220 series bridge the gap between the affordability of an unmanaged device and the ease-of-use of smart switches. With their intuitive dashboard, mobile app support, and multiple Power over Ethernet (PoE) options, these switches deliver a solid business network.

Features Summary

SWITCH PORTS
16-Port 10/100/1000 + 2 x 1G SFP
POWER-OVER-ETHERNET
16 PoE ports with 130W total power budget, PoE, PoE+
SIMPLE
Intuitive on-box UI, mobile app and Cisco Business Dashboard simplifies network operations and automates lifecycle management
SECURITY
Integrated with IEEE 802.1X to control access to your network, Denial-of- Service (DoS) attack prevention increases network uptime during an attack, while Access Control Lists (ACLs) protect the network from unauthorized users
INNOVATIVE DESIGN
Elegant and compact design, ideal for installation outside of wiring closet such as retail stores, open plan offices, and classrooms

Specification Summary

Product Description

Cisco Business 220 Series CBS220-16P-2G - switch - 18 ports - smart - rack-mountable

Device Type

Switch - 18 ports - smart

Enclosure Type

Rack-mountable

Subtype

Gigabit Ethernet

Ports

16 x 10/100/1000 (PoE+) + 2 x Gigabit SFP (uplink)

Power Over Ethernet (PoE)

PoE+

PoE Budget

130 W

Performance

Forwarding performance (64-byte packet size): 26.78 Mpps ¦ Switching capacity: 36 Gbps

Capacity

MSTP instances: 16 ¦ VLANs supported: 256 ¦ ACL rules: 512 ¦ Buffer capacity (MB): 4.1

MAC Address Table Size

8192 entries

Jumbo Frame Support

9216 bytes

Routing Protocol

STP, RSTP, MSTP, IGMP, IGMPv2, IGMPv3, MLD, MLDv2

Remote Management Protocol

RSTP, ICMP, RADIUS, TACACS+, SSH, SCP, SSH-2, HTTPS, HTTP, Telnet, CLI, SNMP 1, SNMP 2c, SNMP 3, RMON, TFTP, DHCP

Features

QoS, 802.1x authentication, ACL support, BPDU Guard, DoS attack prevention, Energy Efficient Ethernet, MAC address filtering, LACP support, VLAN support, VLAN management, Guest VLAN, auto voice VLAN, GVRP, HOL Blocking Prevention, loopback detection, Auto MDIX, DSCP support, UDP, TCP support, Port Security, Broadcast Storm Control, Multicast Storm Control, Unknown Storm Control, STP loop guard, WRR, ToS, DiffServ support, IGMP snooping, NDP, DAD, Telnet server, DHCP client, CDP, LLDP support, MIB, port mirroring, dual firmware images, BOOTP support, Cable Diagnostics Function, Syslog support, LLDP-MED, fanless

Compliant Standards

IEEE 802.1x, IEEE 802.3az, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.3ad (LACP), IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.1ab (LLDP), IEEE 802.3x, IEEE 802.3af, IEEE 802.3at

Power

AC 100-240 V (50/60 Hz)

Dimensions (WxDxH)

44 cm x 20.3 cm x 4.4 cm

Weight

3.03 kg

Localisation

European Economic Area, Switzerland, Turkey, Russia, Ukraine, Israel, United Arab Emirates, Egypt, South Africa, Indonesia, Philippines, Vietnam, Thailand, Korea

Manufacturer Warranty

3-year warranty

Specifications

EAN / GTIN:

889728344388

General

Device Type

Switch - 18 ports - smart

Enclosure Type

Rack-mountable

Subtype

Gigabit Ethernet

Ports

16 x 10/100/1000 (PoE+) + 2 x Gigabit SFP (uplink)

Power Over Ethernet (PoE)

PoE+

PoE Budget

130 W

Performance

Forwarding performance (64-byte packet size): 26.78 Mpps ¦ Switching capacity: 36 Gbps

Capacity

MSTP instances: 16 ¦ VLANs supported: 256 ¦ ACL rules: 512 ¦ Buffer capacity (MB): 4.1

MAC Address Table Size

8192 entries

Jumbo Frame Support

9216 bytes

Routing Protocol

STP, RSTP, MSTP, IGMP, IGMPv2, IGMPv3, MLD, MLDv2

Remote Management Protocol

RSTP, ICMP, RADIUS, TACACS+, SSH, SCP, SSH-2, HTTPS, HTTP, Telnet, CLI, SNMP 1, SNMP 2c, SNMP 3, RMON, TFTP, DHCP

Encryption Algorithm

SSL

Authentication Method

RADIUS, TACACS, TACACS+, Secure Shell (SSH), Secure Shell v.2 (SSH2)

Features

Compliant Standards

RAM

256 MB

Flash Memory

64 MB

Status Indicators

System, link/activity/speed

Expansion / Connectivity

Interfaces

16 x 10/100/1000 Base-T RJ-45 PoE+ - 30 W ¦ 2 x 1000Base-X SFP uplink

Power

Power Device

Internal power supply

Voltage Required

AC 100-240 V (50/60 Hz)

Power Consumption Operational

160.2 Watt

Miscellaneous

Rack Mounting Kit

Included

MTBF

611,476 hours

Compliant Standards

UL 60950, CSA 22.2, FCC CFR47 Part 15 A, C-Tick

Localisation

European Economic Area, Switzerland, Turkey, Russia, Ukraine, Israel, United Arab Emirates, Egypt, South Africa, Indonesia, Philippines, Vietnam, Thailand, Korea

Dimensions & Weight

Width

44 cm

Depth

20.3 cm

Height

4.4 cm

Weight

3.03 kg

Manufacturer Warranty

Service & Support

Limited warranty - replacement - 3 years - response time: next business day
