Cisco Business 110 Series 110-24T - switch - 24 po

Images Manuals

Images for illustrative purposes

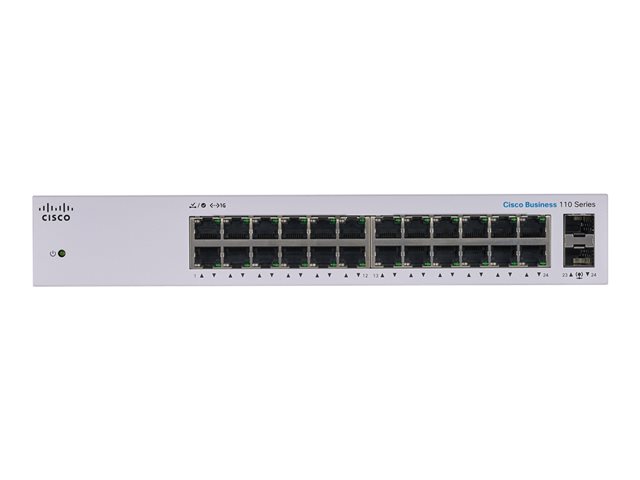

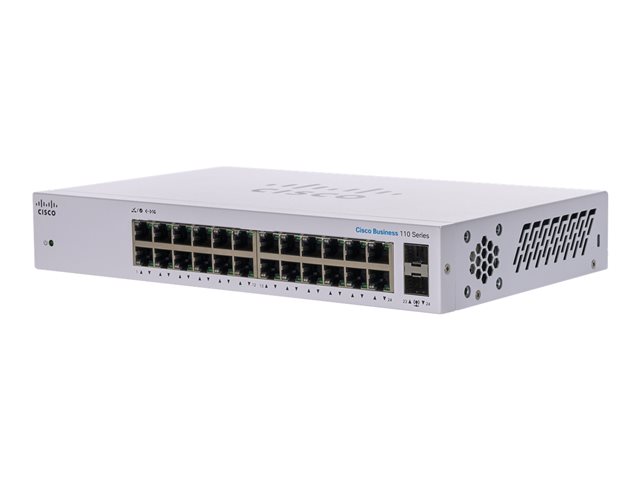

Cisco Business 110 Series 110-24T

Name: Cisco Business 110 Series 110-24T
Brand: CISCO
SKU: ECE6180799
Price: 212.11 EUR
Availability: InStock

View all CISCO Network Switches - Visit the CISCO Store (CBS110-24T-UK) - (ECE6180799)

Model: Cisco Business

Business 110 Series 110-24T - Switch - unmanaged - 24 x 10/100/1000 + 2 x combo Gigabit SFP - rack-mountable, desktop, wall-mountable

SWITCH PORTS
SIMPLE
FLEXIBLE
PERFORMANCE
INNOVATIVE DESIGN

FREE Delivery on orders over €250

19 Available to Ship
Order within 1Hrs 8Mins for: Delivery (11 Jun or 12 Jun)

RRP ~~€233.26~~

€212.11 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

The Cisco Business 110 Series Unmanaged Switches are affordable, plug-and-play entry-level switches that provide gigabit Ethernet switching with key features like Power over Ethernet (PoE), energy efficiency, and traffic prioritization for a fast and resilient small business network.

Features Summary

SWITCH PORTS
24 -Port 10/100/1000 + 2 x 1GE SFP (Shared)
SIMPLE
Plug-and-play without a need for IT know-how or support.
FLEXIBLE
Extensive portfolio provides ultimate flexibility from 5 to 24 ports and PoE combinations
PERFORMANCE
Gigabit Ethernet and integrated quality-of-service (QoS) intelligence optimize delay-sensitive services and improve overall network performance.
INNOVATIVE DESIGN
Elegant and compact design, ideal for installation outside of wiring closet such as retail stores, open plan offices, and classrooms

Specification Summary

Product Description

Cisco Business 110 Series 110-24T - switch - 24 ports - unmanaged - rack-mountable

Device Type

Switch - 24 ports - unmanaged

Enclosure Type

Rack-mountable

Subtype

Gigabit Ethernet

Ports

24 x 10/100/1000 + 2 x combo Gigabit SFP

Performance

Forwarding performance (64-byte packet size): 35.7 Mpps ¦ Switching capacity: 48 Gbps

Capacity

Buffer capacity (MB): 2

MAC Address Table Size

8K entries

Jumbo Frame Support

9216 bytes

Features

QoS, Energy Efficient Ethernet, HOL blocking, WRR, loopback detection, Cable Diagnostics Function, auto-uplink (auto MDI/MDI-X), flow control, fanless, security slot (Kensington security lock compatible)

Compliant Standards

IEEE 802.3az, IEEE 802.1p, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x

Power

AC 120/230 V (50/60 Hz)

Dimensions (WxDxH)

27.9 cm x 17 cm x 4.4 cm

Weight

1.56 kg

Localisation

United Kingdom

Manufacturer Warranty

Limited lifetime warranty

Specifications

EAN / GTIN:

889728326582

General

Device Type

Switch - 24 ports - unmanaged

Enclosure Type

Rack-mountable, desktop, wall-mountable

Subtype

Gigabit Ethernet

Ports

24 x 10/100/1000 + 2 x combo Gigabit SFP

Performance

Forwarding performance (64-byte packet size): 35.7 Mpps ¦ Switching capacity: 48 Gbps

Capacity

Buffer capacity (MB): 2

MAC Address Table Size

8K entries

Jumbo Frame Support

9216 bytes

Features

Compliant Standards

IEEE 802.3az, IEEE 802.1p, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x

Processor

X ARM: 400 MHz

RAM

64 MB

Flash Memory

8 MB

Status Indicators

Power, link/activity

Expansion / Connectivity

Interfaces

24 x 10/100/1000 Base-T RJ-45 ¦ 2 x 1000Base-T / 1000Base-X RJ-45/SFP

Power

Power Device

Internal power supply

Voltage Required

AC 120/230 V (50/60 Hz)

Power Consumption Operational

16.34 Watt

Miscellaneous

Included Accessories

Mounting kit

MTBF

524,296 hours

Compliant Standards

UL 60950, CSA 22.2, FCC CFR47 Part 15 A, FCC Class B certified

Localisation

United Kingdom

Dimensions & Weight

Width

27.9 cm

Depth

17 cm

Height

4.4 cm

Weight

1.56 kg

Manufacturer Warranty

Service & Support

Limited warranty - lifetime ¦ Technical support - web support - 1 year ¦ Technical support - phone consulting - 1 year

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

40 °C

Humidity Range Operating

10 - 90% (non-condensing)

Min Storage Temperature

-20 °C

Max Storage Temperature

70 °C

Humidity Range Storage

5 - 90% (non-condensing)
