Device Type

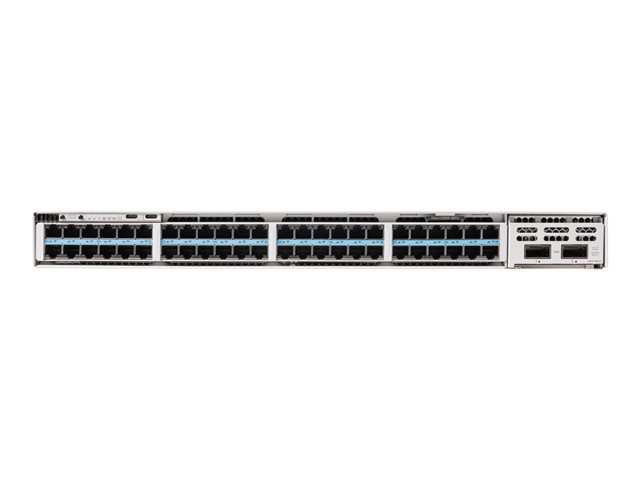

Switch - 48 ports - L3 - Managed - stackable
Enclosure Type
Desktop, rack-mountable 1U
Subtype
10 Gigabit Ethernet
Ports
48 x 10/100/1000/2.5G/5G/10GBase-T
Performance
Switching capacity: 1760 Gbps ¦ Stacking bandwidth: 3360 Gbps ¦ Forwarding rate: 1309.44 Mpps ¦ Forwarding rate with stacking: 2499.84 Mpps
Capacity
VLAN IDs: 4094 ¦ PVST instances: up to 10000 ¦ STP Virtual Ports for PVST: 16000 ¦ STP Virtual Ports for MST: 100000 ¦ Switched virtual interfaces (SVIs): 2000 ¦ MAC addresses: 64000 ¦ IPv4 routes: 192000 ¦ IPv6 routes: 96000 ¦ ARP entries: 64000 ¦ IPv6 neighbor discovery: 4000 ¦ IGMP snooping groups: 8000 ¦ MLD groups: 4000 ¦ IPv4 routes (Multicast): 8000 ¦ IPv6 routes (Multicast): 4000 ¦ IPv4 QoS ACL scale: 2000 ¦ IPv6 QoS ACL scale: 2000 ¦ IPv4 security ACL scale: ¦ IPv6 security ACL scale: 25000 ¦ NetFlow entries: 64000 ¦ Packet buffer size: 36
MAC Address Table Size
64K entries
Jumbo Frame Support
9216 bytes
Routing Protocol
BGP-4, BGP-6, IS-ISv4, RIP-2, RIPng, EIGRP, EIGRP for IPv6, PIM-SM, OSPFv3
Remote Management Protocol
SSH, CLI, NETCONF, RESTCONF, YANG
Authentication Method
Secure Shell (SSH)
Features
Cisco StackWise Technology, ARP support, VLAN support, IGMP support, Bandwidth Shaping, BGP-4, Cisco Trust Anchor module, EIGRP Stub Routing, FHS, GIR mode, HQoS, High Availability, image signing, IS-IS, IP-routing, LACP support, MQC, MLD, OSPF, PIM-SM snooping, PIM-SSM snooping, PAgP support, PIM, PVLAN support, QinQ VLAN, QoS, RSTP, secure boot, SMU, SSO, STP support, SPQ, traffic metering, VOQ, VLAN mapping, FNF, IPFIX, out-of-band management, RFID authentication, ZTP
Compliant Standards
IEEE 802.1Q, IEEE 802.3ad (LACP), IEEE 802.1x
Status Indicators
System, port transmission speed, status
Interfaces
48 x 1000Base-T RJ-45 ¦ 1 x USB Type C console ¦ 1 x USB Type C host ¦ 1 x 10/100/1000Base-T RJ-45 management ¦ 1 x console RJ-45 ¦ 2 x network stack device ¦ 1 x USB 3.0
Expansion Slots
1 (total) / 1 (free) x Stacking Module
Power Device
Internal power supply
Power Redundancy
Optional
Power Redundancy Scheme
N+1 (with optional power supply)
Compliant Standards
47 CFR Part 15 Class A, AS/NZS 60950-1:2011, CAN/CSA-C22.2 No. 60950-1-07, CAN/CSA-C22.2 No. 62368-1-14, CISPR 24:2010+A1:2015, CISPR 32 Second Edition Class A, CNS13438:2006, EN 300 386, EN 300 386 V1.6.1, EN 55024:2010+A1:2015, EN 55032:2012, EN 61000-3-2:2014, EN 61000-3-3:2013, EN55024:2010:A1, GB 4943-95, ICES-003 issue 6:2016, IEC 60950-1, IEC 60950-1:2006, KN32:2015 Class A, KN35:2015, NOM-019-SCFI-1998, TCVN 7189: 2009 Class A, TCVN 7317:2003, UL 60950-1 Second Edition, UL 62368-1 Second Edition
Software / System Requirements
OS Required
Cisco IOS XE 17.18.1 or later
Service & Support
Limited warranty - advance parts replacement - lifetime - response time: next business day
Min Operating Temperature
-5 °C
Max Operating Temperature
45 °C
Humidity Range Operating
10 - 95% RH (non-condensing)
Min Storage Temperature
-40 °C
Max Storage Temperature
75 °C
Humidity Range Storage
10 - 95% RH (non-condensing)
