Device Type

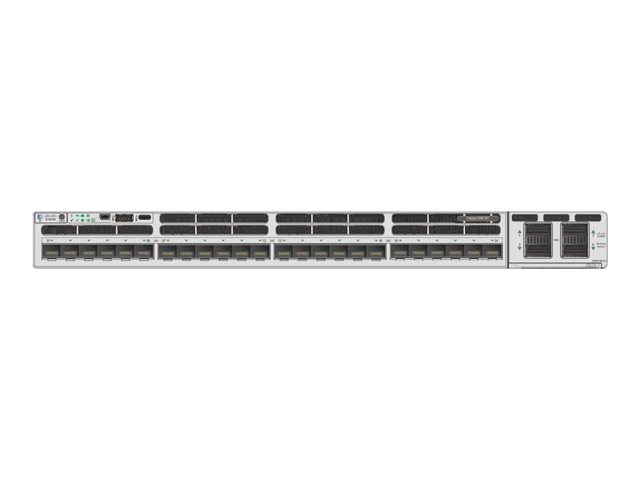

Switch - 24 ports - L3 - Managed - stackable
Enclosure Type
Rack-mountable 1U
Subtype
25 Gigabit Ethernet
Ports
24 x 1/10/25 Gigabit SFP28
Performance
Switching capacity: 2000 Gbps ¦ Switching capacity with stacking: 3000 Gbps ¦ Forwarding rate: 1488 Mpps ¦ Forwarding rate with stacking: 2232 Mpps
Capacity
IPv4 routing table entries: 39000 ¦ Flexible NetFlow entries: 128000 ¦ Direct IPv4 routes: 24000 ¦ Indirect IPv4 routes: 15000 ¦ IPv6 routing table entries: 19500 ¦ VLAN IDs: 4094 ¦ Switched virtual interfaces (SVIs): 1000 ¦ Multicast routing flow table: 8000 ¦ QoS scale entries: 4000 ¦ ACL scale entries: 5000 ¦ PVST instances: 300 ¦ STP Virtual Ports for PVST: 13000 ¦ STP Virtual Ports for MST: 13000 ¦ Routed ports: 448
MAC Address Table Size
32000 entries
Jumbo Frame Support
9198 bytes
Routing Protocol
OSPF, IS-IS, RIP-1, RIP-2, IGMP, VRRP, PIM-SM, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng
Remote Management Protocol
SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF
Encryption Algorithm
256-bit AES
Features
DHCP support, trunking, Syslog support, full duplex mode, SSO, CBWFQ, WRED, STP support, ACL support, QoS, NSR, RSPAN, MIB, Cisco StackWise-480 technology, Cisco StackPower technology, FNF, MSDP, 802.1x authentication, 16MB packet buffer, FTP client, MACsec support, 3 fans, CoPP, VXLAN, AVC, SSM, integrated Wireshark, VLAN Double Tagging (Q-in-Q), EoMPLS, H-VPLS, Private VLAN, L3VPN support, ERSPAN, SGT caching, SGACL, ITSM integration, third-party IPAM integration, Cisco StackWise-1T technology
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at
Interfaces
24 x 1/10/25GBase-X SFP28 ¦ 1 x USB 2.0
Expansion Slots
1 (total) / 1 (free) x Expansion Slot
Power Device
Internal power supply
Voltage Required
AC 120/230 V (50/60 Hz)
Compliant Standards
CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN50082-1, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, CCC, ICES-003 Class A, EN 61000-4-5, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Class A, VCCI Class A, EN 55022 Class A, FCC CFR47 Part 15 A, EN 300 386, TVCN 7317, VCCI V-3/2009 Class A, CAN/CSA-C22.2 No. 60950-1
Service & Support
Limited warranty - replacement - lifetime - response time: next business day ¦ Technical support - consulting - 90 days
Min Operating Temperature
-5 °C
Max Operating Temperature
45 °C
Humidity Range Operating
5 - 90% (non-condensing)
Min Storage Temperature
-40 °C
Max Storage Temperature
70 °C
Humidity Range Storage
5 - 90% (non-condensing)
