Cisco Catalyst 9300L - Network Essentials - switch

Images Manuals

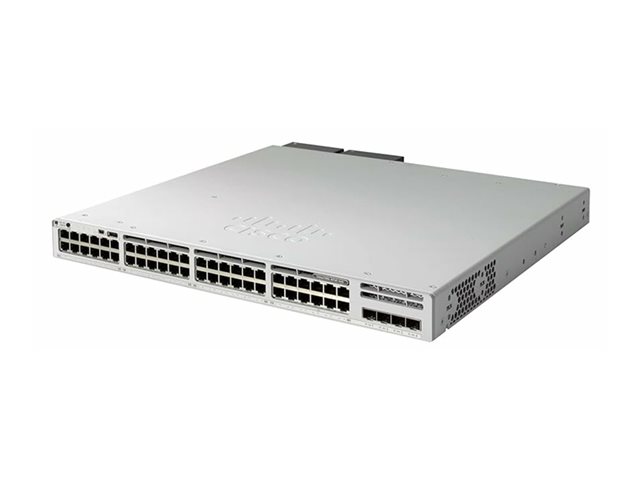

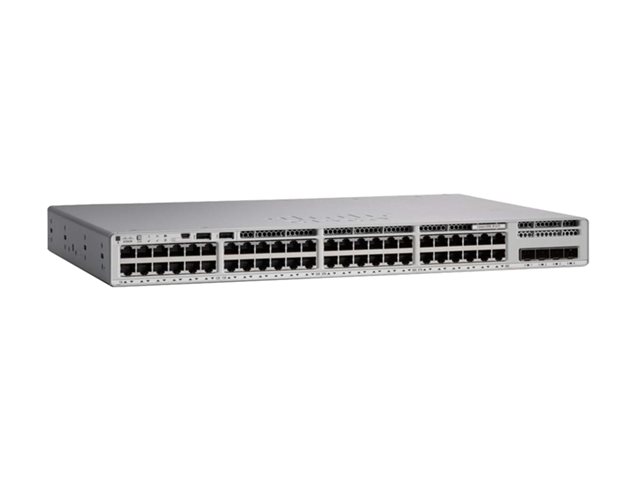

Images for illustrative purposes

Cisco Catalyst 9300L

Name: Cisco Catalyst 9300L
Brand: CISCO
SKU: ECE5300915
Price: 6419.75 EUR
Availability: InStock

View all CISCO Network Switches - Visit the CISCO Store (C9300L-48P-4X-E) - (ECE5300915)

Model: Cisco Catalyst

Catalyst 9300L - Network Essentials - switch - L3 - 48 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+ (uplink) - rack-mountable - PoE+ (505 W)

BUILT-IN RESILIENCY
HIGH PERFORMANCE AND SCALABILITY
ADVANCED SECURITY
UP TO 1TB OF STACKING BANDWIDTH
CLOUD MANAGEMENT AND MONITORING

FREE Delivery on orders over €250

18 Available to Ship
Order within 2Hrs 28Mins for: FREE Delivery (8 Jun or 9 Jun)

RRP ~~€8655.77~~

€6419.75 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

Cisco Catalyst 9300 Series switches are Cisco's lead stackable enterprise access switching platform and as part of the Catalyst 9000 family, are built to transform your network to handle a hybrid world where the workplace is anywhere, endpoints could be anything, and applications are hosted all over the place.

Features Summary

BUILT-IN RESILIENCY
High-end fixed switching for Software-Defined Access, App hosting, high availability, assurance, and smart buildings
HIGH PERFORMANCE AND SCALABILITY
Support for high-density 10G and 40G uplinks with up to 480 Gbps of stacking bandwidth for robust performance and network expansion.
ADVANCED SECURITY
Features like Encrypted Traffic Analytics (ETA) and Cisco TrustSec provide comprehensive security, including Network Access Control (NAC) capabilities.
UP TO 1TB OF STACKING BANDWIDTH
With Stackwise-1T, Catalyst 9300 switches are the industry's highest-density stacking bandwidth solution with the most flexible uplink architecture.
CLOUD MANAGEMENT AND MONITORING
Cloud management and monitoring provides the ability to manage or view Catalyst 9300 switch statistics, configuration, and troubleshooting capabilities in Meraki dashboard.

Specification Summary

Product Description

Cisco Catalyst 9300L - Network Essentials - switch - 48 ports - rack-mountable

Device Type

Switch - 48 ports - L3 - stackable

Enclosure Type

Rack-mountable

Subtype

Gigabit Ethernet

Ports

48 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+ (uplink)

Power Over Ethernet (PoE)

PoE+

PoE Budget

505 W

Performance

Switching capacity with stacking: 496 Gbps ¦ Switching capacity: 176 Gbps ¦ Forwarding rate: 130.95 Mpps ¦ Forwarding rate with stacking: 369.05 Mpps

Capacity

IPv4 routes: 32000 ¦ IPv6 routes: 16000 ¦ Multicast scale: 8000 ¦ QoS scale entries: 5120 ¦ ACL scale entries: 5120 ¦ Routed ports: 416 ¦ VLANs supported: 4094 ¦ Switched virtual interfaces (SVIs): 1000

MAC Address Table Size

32000 entries

Jumbo Frame Support

9198 bytes

Routing Protocol

OSPF, RIP-1, RIP-2, EIGRP, VRRP, PIM-SM, EIGRP for IPv6, PIM-SSM, policy-based routing (PBR), RIPng, MSTP

Remote Management Protocol

SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF

Features

QoS, Cisco StackWise Technology, Rapid PVST+, SRR, PXE support, RSPAN, NetFlow, Energy Efficient Ethernet, MIB, CoS, FNF, 802.1x authentication, 16MB packet buffer, DSCP support, MACsec support, CoPP, SPAN, EEM, PIM, FHS, PVLAN support, CIR

Compliant Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3bz

Power

AC 120/230 V (50 - 60 Hz)

Power Redundancy

Optional

Dimensions (WxDxH)

44.5 cm x 4.4 cm x 40.9 cm

Weight

7.03 kg

Manufacturer Warranty

Limited lifetime warranty

Specifications

EAN / GTIN:

889728174657

General

Device Type

Switch - 48 ports - L3 - stackable

Enclosure Type

Rack-mountable

Subtype

Gigabit Ethernet

Ports

48 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+ (uplink)

Power Over Ethernet (PoE)

PoE+

PoE Budget

505 W

Performance

Switching capacity with stacking: 496 Gbps ¦ Switching capacity: 176 Gbps ¦ Forwarding rate: 130.95 Mpps ¦ Forwarding rate with stacking: 369.05 Mpps

Capacity

MAC Address Table Size

32000 entries

Jumbo Frame Support

9198 bytes

Routing Protocol

OSPF, RIP-1, RIP-2, EIGRP, VRRP, PIM-SM, EIGRP for IPv6, PIM-SSM, policy-based routing (PBR), RIPng, MSTP

Remote Management Protocol

SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF

Features

Compliant Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3bz

RAM

8 GB

Flash Memory

16 GB

Expansion / Connectivity

Interfaces

48 x 1000Base-T RJ-45 ¦ 4 x 10GBase-X SFP+ uplink

Power

Power Device

Internal power supply - hot-plug

Installed Qty

Max Supported Qty

Power Redundancy

Optional

Power Provided

715 Watt

Voltage Required

AC 120/230 V (50 - 60 Hz)

Miscellaneous

MTBF

309,020 hours

Compliant Standards

CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN 61000-6-1, AS/NZS 60950-1, CCC, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Class A, VCCI Class A, CNS 13438, EN 55022 Class A, FCC CFR47 Part 15 B Class A, EN 300 386, KN32, KN35, EN 55032 Class A, CISPR 32 Class A, CAN/CSA-C22.2 No. 60950-1, TCVN 7189 Class A, V-3 Class A, TCVN 7317, CISPR 35

Dimensions & Weight

Width

44.5 cm

Depth

4.4 cm

Height

40.9 cm

Weight

7.03 kg

Manufacturer Warranty

Service & Support

Limited warranty - advance parts replacement - lifetime - response time: next business day

Environmental Parameters

Humidity Range Operating

5 - 90% (non-condensing)

Min Storage Temperature

-40 °C

Max Storage Temperature

70 °C

Humidity Range Storage

5 - 90% (non-condensing)
