Cisco Catalyst 9300 - Network Essentials - switch

Images Manuals

Images for illustrative purposes

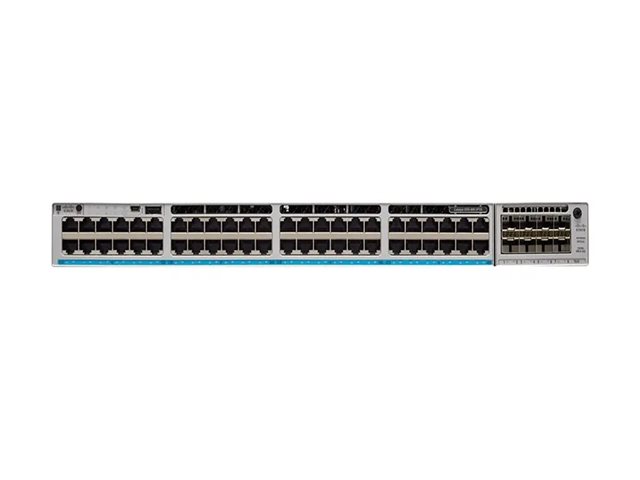

Cisco Catalyst 9300

Name: Cisco Catalyst 9300
Brand: CISCO
SKU: ECE4701395
Price: 11519.75 EUR
Availability: InStock

View all CISCO Network Switches - Visit the CISCO Store (C9300-48UXM-E) - (ECE4701395)

Model: Cisco Catalyst

Catalyst 9300 - Network Essentials - switch - L3 - Managed - 36 x 2.5GBase-T (UPOE) + 12 x 100/1000/2.5G/5G/10G (UPOE) - rack-mountable - UPOE (490 W)

BUILT-IN RESILIENCY
HIGH PERFORMANCE AND SCALABILITY
ADVANCED SECURITY
UP TO 1TB OF STACKING BANDWIDTH
CLOUD MANAGEMENT AND MONITORING

FREE Delivery on orders over €250

9 Available to Ship
Order within 16Hrs 58Mins for: FREE Delivery (8 Jun or 9 Jun)

RRP ~~€20737.26~~

€11519.75 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

Cisco Catalyst 9300 Series switches are Cisco's lead stackable enterprise access switching platform and as part of the Catalyst 9000 family, are built to transform your network to handle a hybrid world where the workplace is anywhere, endpoints could be anything, and applications are hosted all over the place.

Features Summary

BUILT-IN RESILIENCY
High-end fixed switching for Software-Defined Access, App hosting, high availability, assurance, and smart buildings
HIGH PERFORMANCE AND SCALABILITY
Support for high-density 10G and 40G uplinks with up to 480 Gbps of stacking bandwidth for robust performance and network expansion.
ADVANCED SECURITY
Features like Encrypted Traffic Analytics (ETA) and Cisco TrustSec provide comprehensive security, including Network Access Control (NAC) capabilities.
UP TO 1TB OF STACKING BANDWIDTH
With Stackwise-1T, Catalyst 9300 switches are the industry's highest-density stacking bandwidth solution with the most flexible uplink architecture.
CLOUD MANAGEMENT AND MONITORING
Cloud management and monitoring provides the ability to manage or view Catalyst 9300 switch statistics, configuration, and troubleshooting capabilities in Meraki dashboard.

Specification Summary

Product Description

Cisco Catalyst 9300 - Network Essentials - switch - 48 ports - Managed - rack-mountable

Device Type

Switch - 48 ports - L3 - Managed - stackable

Enclosure Type

Rack-mountable 1U

Subtype

2.5 Gigabit Ethernet

Ports

36 x 2.5GBase-T (UPOE) + 12 x 100/1000/2.5G/5G/10G (UPOE)

Power Over Ethernet (PoE)

UPOE

PoE Budget

490 W

Performance

Switching capacity: 580 Gbps ¦ Stacking bandwidth: 480 Gbps ¦ Forwarding rate: 431.54 Mpps

Capacity

IPv4 routing table entries: 32000 ¦ IPv6 routing table entries: 16000 ¦ Flexible NetFlow entries: 64000 ¦ VLAN IDs: 4000 ¦ Switched virtual interfaces (SVIs): 2000

MAC Address Table Size

32000 entries

Jumbo Frame Support

9198 bytes

Routing Protocol

OSPF, IS-IS, RIP-1, RIP-2, IGMP, VRRP, PIM-SM, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng

Remote Management Protocol

SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF

Features

Trunking, full duplex mode, WRED, STP support, ACL support, QoS, RSPAN, MIB, Cisco StackWise-480 technology, Cisco StackPower technology, FNF, 802.1x authentication, 16MB packet buffer, FTP client, 3 fans, CoPP, SSM, integrated Wireshark, VLAN Double Tagging (Q-in-Q), Private VLAN

Compliant Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at

Power

AC 120/230 V (50 - 60 Hz)

Power Redundancy

Optional

Dimensions (WxDxH)

44.5 cm x 47 cm x 4.4 cm

Weight

9.34 kg

Manufacturer Warranty

Limited lifetime warranty

Specifications

EAN / GTIN:

889728035712

General

Device Type

Switch - 48 ports - L3 - Managed - stackable

Enclosure Type

Rack-mountable 1U

Subtype

2.5 Gigabit Ethernet

Ports

36 x 2.5GBase-T (UPOE) + 12 x 100/1000/2.5G/5G/10G (UPOE)

Power Over Ethernet (PoE)

UPOE

PoE Budget

490 W

Performance

Switching capacity: 580 Gbps ¦ Stacking bandwidth: 480 Gbps ¦ Forwarding rate: 431.54 Mpps

Capacity

IPv4 routing table entries: 32000 ¦ IPv6 routing table entries: 16000 ¦ Flexible NetFlow entries: 64000 ¦ VLAN IDs: 4000 ¦ Switched virtual interfaces (SVIs): 2000

MAC Address Table Size

32000 entries

Jumbo Frame Support

9198 bytes

Routing Protocol

OSPF, IS-IS, RIP-1, RIP-2, IGMP, VRRP, PIM-SM, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng

Remote Management Protocol

SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF

Encryption Algorithm

128-bit AES

Features

Compliant Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at

RAM

8 GB

Flash Memory

16 GB

Status Indicators

Status

Expansion / Connectivity

Interfaces

36 x 2.5Gbit LAN RJ-45 UPOE ¦ 12 x 1/2.5/5/10GBase-T UPOE ¦ 1 x USB 2.0

Expansion Slots

1 (total) / 1 (free) x Expansion Slot

Power

Power Device

Internal power supply - hot-plug

Installed Qty

Max Supported Qty

Power Redundancy

Optional

Power Provided

1100 watt

Voltage Required

AC 120/230 V (50 - 60 Hz)

Miscellaneous

MTBF

202,160 hours

Compliant Standards

CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN50082-1, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, CCC, ICES-003 Class A, EN 61000-4-5, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Class A, VCCI Class A, EN 55022 Class A, FCC CFR47 Part 15 A, EN 300 386, TVCN 7317, VCCI V-3/2009 Class A, CAN/CSA-C22.2 No. 60950-1

Dimensions & Weight

Width

44.5 cm

Depth

47 cm

Height

4.4 cm

Weight

9.34 kg

Manufacturer Warranty

Service & Support

Limited warranty - replacement - lifetime - response time: next business day ¦ Technical support - consulting - 90 days

Environmental Parameters

Min Operating Temperature

-5 °C

Max Operating Temperature

45 °C

Humidity Range Operating

5 - 90% (non-condensing)

Min Storage Temperature

-40 °C

Max Storage Temperature

70 °C

Humidity Range Storage

5 - 90% (non-condensing)
