EAN / GTIN:
8592978550295

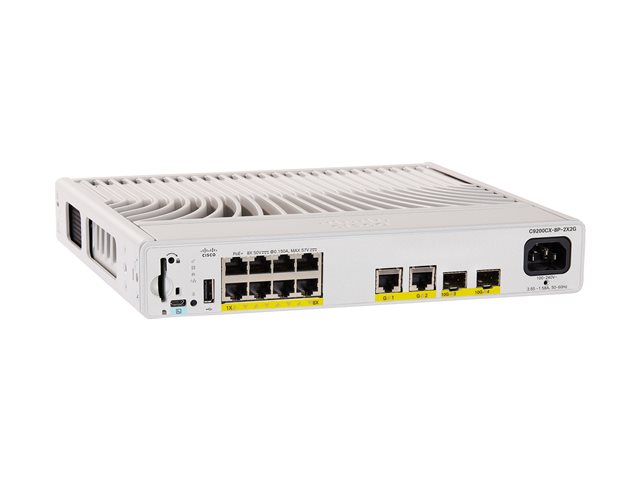

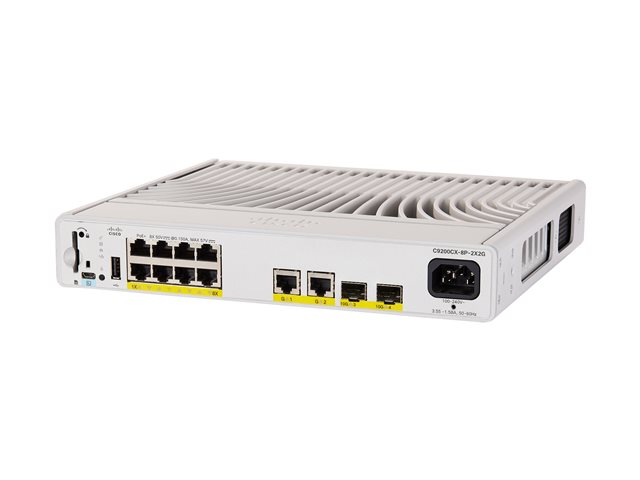

Device Type
Switch - 8 ports - L3 - Managed
Enclosure Type
Rack-mountable 1U
Ports
8 x 10/100/1000 (PoE+) + 2 x 1000Base-T + 2 x 10 Gigabit SFP+ (uplink)
Power Over Ethernet (PoE)
PoE+
Performance
Switching capacity: 60 Gbps ¦ Forwarding rate: 95.23 Mpps ¦ Packet buffer size: 6 MB
Capacity
Virtual networks: 16 ¦ IPv4 routes: 14000 ¦ Direct IPv4 routes: 10000 ¦ Indirect IPv4 routes: 4000 ¦ IPv4 routing entries: 4000 ¦ IPv6 routing entries: 2000 ¦ Multicast scale: 1000 ¦ QoS scale entries: 1000 ¦ ACL scale entries: 1600 ¦ Flexible NetFlow entries: 16000 ¦ VLAN IDs: 4096 ¦ PVST instances: 128 ¦ STP Virtual Ports for PVST: 13000 ¦ STP Virtual Ports for MST: 13000
MAC Address Table Size
32000 entries
Jumbo Frame Support
9198 bytes
Routing Protocol
OSPF, RIP, RIP-1, RIP-2, EIGRP, VRRP, PIM-SM, OSPFv3, EIGRP for IPv6, PIM-SSM, policy-based routing (PBR), RIPng, MSTP
Remote Management Protocol
SNMP 1, SNMP 2c, SNMP 3, RMON 1, RMON 2, CLI, NETCONF, RESTCONF, YANG
Encryption Algorithm
128-bit AES
Features
Fanless, QoS, Rapid PVST+, SRR, PXE support, RSPAN, Energy Efficient Ethernet, MIB, CoS, FNF, 802.1x authentication, DSCP support, MACsec support, CoPP, SPAN, EEM, PIM, FHS, PVLAN support, CIR, ACL support, Cisco UADP 2.0, trustworthy systems, ZTP
Compliant Standards
IEEE 802.3, IEEE 802.3at, IEEE 802.3af, IEEE 802.1s, IEEE 802.1w, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ad (LACP), IEEE 802.3x, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.1ae
Built-in Devices
RFID tag
Interfaces
8 x 1000Base-T RJ-45 PoE+ - 30 W ¦ 2 x 1000Base-T RJ-45 ¦ 2 x 10GBase-X SFP+ uplink ¦ 1 x USB 2.0 ¦ 1 x console (micro-USB)
Expansion Slots
1 (total) / 1 (free) x SD Memory Card
Power Device
Internal power supply
Voltage Required
AC 100-240 V (50/60 Hz)
Compliant Standards
Plug and Play, CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN 61000-6-1, AS/NZS 60950-1, CCC, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Class A, VCCI Class A, CNS 13438, EN 55022 Class A, FCC CFR47 Part 15 B Class A, EN 300 386, KN32, KN35, EN 55032 Class A, CISPR 32 Class A, CAN/CSA-C22.2 No. 60950-1, TCVN 7189 Class A, V-3 Class A, TCVN 7317, CISPR 35
Software / System Requirements
Software Included
Cisco IOS Universal 17.8
Service & Support
Limited warranty - replacement - lifetime - response time: next business day ¦ Technical support - consulting - 90 days
Min Operating Temperature
-5 °C
Max Operating Temperature
45 °C
Humidity Range Operating
5 - 90% (non-condensing)
Min Storage Temperature
-40 °C
Max Storage Temperature
70 °C
Humidity Range Storage
5 - 90% (non-condensing)
