Cisco Catalyst 9200 - Essential Edition - switch -

Images Manuals

Images for illustrative purposes

Cisco Catalyst 9200

Name: Cisco Catalyst 9200
Brand: CISCO
SKU: ECE5078713
Price: 4434.62 EUR
Availability: InStock

View all CISCO Network Switches - Visit the CISCO Store (C9200-48P-E) - (ECE5078713)

Model: Cisco Catalyst

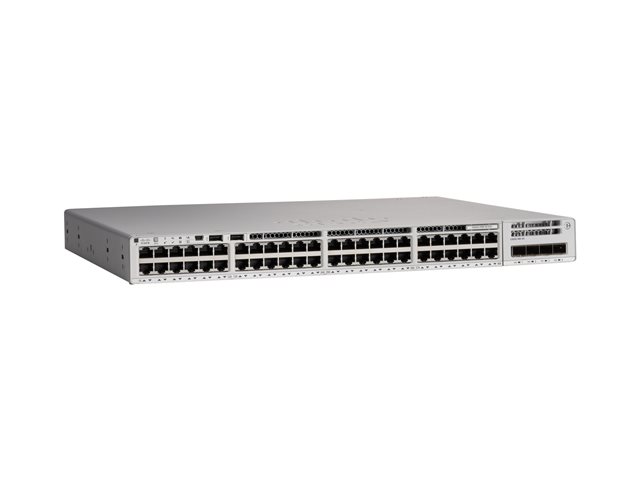

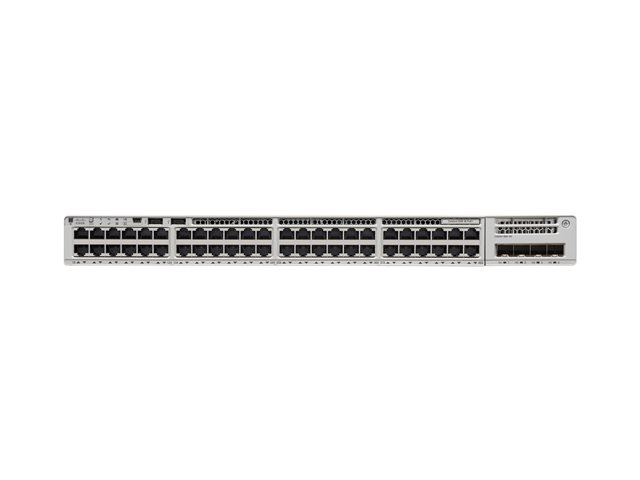

Catalyst 9200 - Essential Edition - switch - smart - 48 x 10/100/1000 (PoE+) - rack-mountable - PoE+ (740 W)

CONFIGURATION
IT SIMPLIFIED
SECURE
ALWAYS-ON
MANAGEMENT

FREE Delivery on orders over €250

24 Available to Ship
Order within 5Hrs 16Mins for: FREE Delivery (8 Jun or 9 Jun)

RRP ~~€5976.78~~

€4434.62 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

The Cisco Catalyst 9200 Series switches extend the power of intent-based networking and Catalyst 9000 hardware and software innovation to a broader set of deployments. With its family pedigree, Catalyst 9200 Series switches offer simplicity without compromise – it is secure, always on, and IT SIMPLIFIED.

Specification Summary

Product Description

Cisco Catalyst 9200 - Essential Edition - switch - 48 ports - smart - rack-mountable

Device Type

Switch - 48 ports - smart - stackable

Enclosure Type

Rack-mountable

Subtype

Gigabit Ethernet

Ports

48 x 10/100/1000 (PoE+)

Power Over Ethernet (PoE)

PoE+

PoE Budget

740 W

Performance

Wireless bandwidth: up to 48 Gbps ¦ Switching capacity: 176 Gbps ¦ Forwarding rate: 261.9 Mpps

Capacity

Virtual networks: 4 ¦ MAC addresses: 32000 ¦ IPv4 routes: 14000 ¦ Indirect IPv4 routes: 4000 ¦ Direct IPv4 routes: 10000 ¦ IPv4 routing table entries: 4000 ¦ IPv6 routing table entries: 2000 ¦ Multicast scale: 1000 ¦ ACL scale entries: 16000 ¦ Packet buffer size: 6 MB ¦ Flexible NetFlow entries: 16000 ¦ VLAN IDs: 1000

Jumbo Frame Support

9198 bytes

Routing Protocol

OSPF, RIP, IS-IS, RIP-1, RIP-2, EIGRP, VRRP, PIM-SM, EIGRP for IPv6, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng, MSTP

Remote Management Protocol

NETCONF, RESTCONF

Features

QoS, RSPAN, FNF, MACsec support, CoPP, Sampled NetFlow, SPAN, EEM, FHS, DNA support

Compliant Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at, IEEE 802.3bz

Power

AC 100-240 V

Power Redundancy

Optional

Dimensions (WxDxH)

44.5 cm x 4.4 cm x 35 cm

Weight

5.5 kg

System Requirements

Cisco IOS XE 16.9.2 or later

Manufacturer Warranty

Limited lifetime warranty

Specifications

EAN / GTIN:

889728168250

General

Device Type

Switch - 48 ports - smart - stackable

Enclosure Type

Rack-mountable

Subtype

Gigabit Ethernet

Ports

48 x 10/100/1000 (PoE+)

Power Over Ethernet (PoE)

PoE+

PoE Budget

740 W

Performance

Wireless bandwidth: up to 48 Gbps ¦ Switching capacity: 176 Gbps ¦ Forwarding rate: 261.9 Mpps

Capacity

Jumbo Frame Support

9198 bytes

Routing Protocol

OSPF, RIP, IS-IS, RIP-1, RIP-2, EIGRP, VRRP, PIM-SM, EIGRP for IPv6, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng, MSTP

Remote Management Protocol

NETCONF, RESTCONF

Features

QoS, RSPAN, FNF, MACsec support, CoPP, Sampled NetFlow, SPAN, EEM, FHS, DNA support

Compliant Standards

RAM

4 GB

Flash Memory

4 GB

Expansion / Connectivity

Interfaces

48 x 1000Base-T RJ-45 PoE+ - 30 W

Power

Power Device

Internal power supply - hot-plug

Installed Qty

Max Supported Qty

Power Redundancy

Optional

Power Provided

1000 watt

Voltage Required

AC 100-240 V

Miscellaneous

MTBF

375,570 hours

Compliant Standards

CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN 61000-6-1, AS/NZS 60950-1, CCC, ICES-003 Class A, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Class A, VCCI Class A, CNS 13438, EN 55022 Class A, EN 300 386, KN32, KN35, EN 55032 Class A, CISPR 32 Class A, CAN/CSA-C22.2 No. 60950-1, TCVN 7189 Class A, V-3 Class A, TCVN 7317, CISPR 35

Software / System Requirements

OS Required

Cisco IOS XE 16.9.2 or later

Dimensions & Weight

Width

44.5 cm

Depth

4.4 cm

Height

35 cm

Weight

5.5 kg

Manufacturer Warranty

Service & Support

Limited warranty - advance parts replacement - lifetime - response time: next business day ¦ Technical support - phone consulting - 90 days

Environmental Parameters

Min Operating Temperature

-5 °C

Max Operating Temperature

45 °C

Min Storage Temperature

-40 °C

Max Storage Temperature

70 °C
