Cisco Catalyst 9200 - Network Advantage - switch -

Images Manuals

Images for illustrative purposes

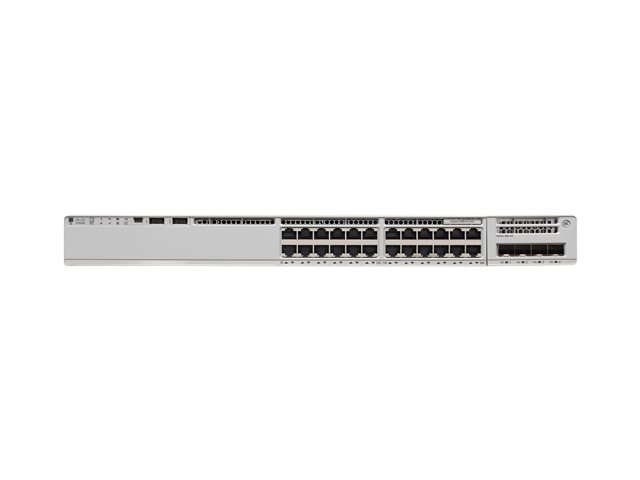

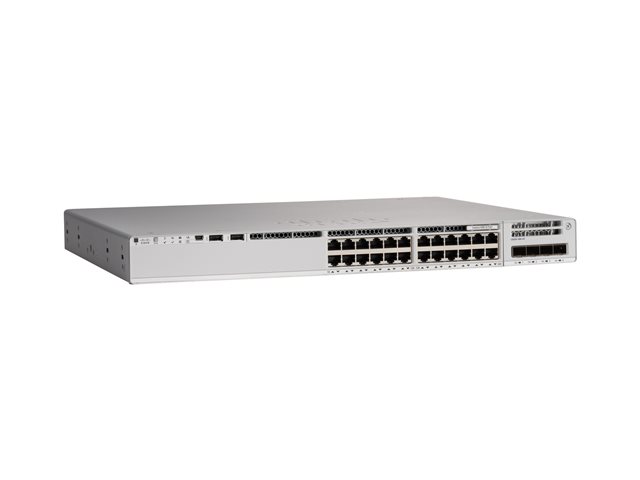

Cisco Catalyst 9200

Name: Cisco Catalyst 9200
Brand: CISCO
SKU: ECE5078429
Price: 3436.02 EUR
Availability: OutOfStock

View all CISCO Network Switches - Visit the CISCO Store (C9200-24P-A) - (ECE5078429)

Model: Cisco Catalyst

Catalyst 9200 - Network Advantage - switch - L3 - smart - 24 x 10/100/1000 (PoE+) - rack-mountable - PoE+

CONFIGURATION
IT SIMPLIFIED
SECURE
ALWAYS-ON
MANAGEMENT

FREE Delivery on orders over €250

0 Available to Ship
Restock 25-Jun-2026 Estimated, Out of Stock Prices are Estimated.

RRP ~~€5154.03~~

€3436.02 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

The Cisco Catalyst 9200 Series switches extend the power of intent-based networking and Catalyst 9000 hardware and software innovation to a broader set of deployments. With its family pedigree, Catalyst 9200 Series switches offer simplicity without compromise – it is secure, always on, and IT SIMPLIFIED.

Features Summary

CONFIGURATION
24 x 10/100/1000M Ethernet with PoE+, 370W total PoE budget
IT SIMPLIFIED
Catalyst 9200 Series switches simplify complexity, optimize IT, and reduce operational costs with Cisco UADP ASIC and Cisco IOS XE providing consistency, intelligence and automation.
SECURE
Enhanced security with MACsec encryption, full flexible NetFlow, and trustworthy solutions that protect the integrity of the hardware as well as the software and all data that flows through the switch
ALWAYS-ON
Differentiated resiliency with Field-Replaceable Units (FRU) and redundant power supplies and fans, modular uplinks, 160 Gbps backplane stacking and layer 3 support
MANAGEMENT
Choice of CLI, Cisco Catalyst Center (formerly Cisco DNA Center) on-premises management, or cloud monitoring for Catalyst on Meraki dashboard

Specification Summary

Product Description

Cisco Catalyst 9200 - Network Advantage - switch - 24 ports - smart - rack-mountable

Device Type

Switch - 24 ports - L3 - smart - stackable

Enclosure Type

Rack-mountable

Subtype

Gigabit Ethernet

Ports

24 x 10/100/1000 (PoE+)

Power Over Ethernet (PoE)

PoE+

Performance

Stacking bandwidth: 160 Gbps ¦ Switching bandwidth: 128 Gbps ¦ Forwarding rate: 190.4 Mpps

Capacity

Virtual networks: 4 ¦ IPv4 routing table entries: 4000 ¦ IPv6 routing table entries: 2000 ¦ ACL scale entries: 1600 ¦ Packet buffer size: 6 MB ¦ VLAN IDs: 4096 ¦ Switched virtual interfaces (SVIs): 1000

MAC Address Table Size

32000 entries

Jumbo Frame Support

9198 bytes

Routing Protocol

OSPF, IS-IS, RIP-1, RIP-2, EIGRP, HSRP, VRRP, PIM-SSM, MSDP, policy-based routing (PBR), RIPng

Remote Management Protocol

NETCONF, RESTCONF

Features

Cisco StackWise Technology, VRF, FNF, MACsec support, built-in ASIC, CoPP, VXLAN, LISP, Blue Beacon LED, SGT caching, EEM, PIM, FHS, PVLAN support, DNA support, Superior QoS

Compliant Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at, IEEE 802.3bz

Power

AC 100-240 V (50 - 60 Hz)

Power Redundancy

Optional

Dimensions (WxDxH)

4.4 cm x 44.5 cm x 35 cm

Weight

5.5 kg

Manufacturer Warranty

Limited lifetime warranty

Specifications

EAN / GTIN:

889728168304

General

Device Type

Switch - 24 ports - L3 - smart - stackable

Enclosure Type

Rack-mountable

Subtype

Gigabit Ethernet

Ports

24 x 10/100/1000 (PoE+)

Power Over Ethernet (PoE)

PoE+

Performance

Stacking bandwidth: 160 Gbps ¦ Switching bandwidth: 128 Gbps ¦ Forwarding rate: 190.4 Mpps

Capacity

MAC Address Table Size

32000 entries

Jumbo Frame Support

9198 bytes

Routing Protocol

OSPF, IS-IS, RIP-1, RIP-2, EIGRP, HSRP, VRRP, PIM-SSM, MSDP, policy-based routing (PBR), RIPng

Remote Management Protocol

NETCONF, RESTCONF

Encryption Algorithm

128-bit AES

Features

Cisco StackWise Technology, VRF, FNF, MACsec support, built-in ASIC, CoPP, VXLAN, LISP, Blue Beacon LED, SGT caching, EEM, PIM, FHS, PVLAN support, DNA support, Superior QoS

Compliant Standards

RAM

4 GB

Flash Memory

4 GB

Built-in Devices

RFID tag

Expansion / Connectivity

Interfaces

24 x 10/100/1000 Base-T RJ-45 PoE+ - 30 W

Power

Power Device

Internal power supply - hot-plug

Max Supported Qty

Power Redundancy

Optional

Voltage Required

AC 100-240 V (50 - 60 Hz)

Miscellaneous

MTBF

422,310 hours

Compliant Standards

Plug and Play, CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN 61000-6-1, AS/NZS 60950-1, CCC, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Class A, VCCI Class A, CNS 13438, EN 55022 Class A, EN 300 386, KN32, KN35, EN 55032 Class A, CISPR 32 Class A, CAN/CSA-C22.2 No. 60950-1, TCVN 7189 Class A, V-3 Class A, TCVN 7317, CISPR 35

Software / System Requirements

Software Included

Cisco Network Advantage

Dimensions & Weight

Width

4.4 cm

Depth

44.5 cm

Height

35 cm

Weight

5.5 kg

Manufacturer Warranty

Service & Support

Limited warranty - advance parts replacement - lifetime - response time: next business day

Environmental Parameters

Humidity Range Operating

5 - 90% (non-condensing)

Min Storage Temperature

-40 °C

Max Storage Temperature

70 °C

Humidity Range Storage

5 - 90% (non-condensing)
