Cisco Catalyst 9120AXE - radio access point - 802.

Images Manuals

Images for illustrative purposes

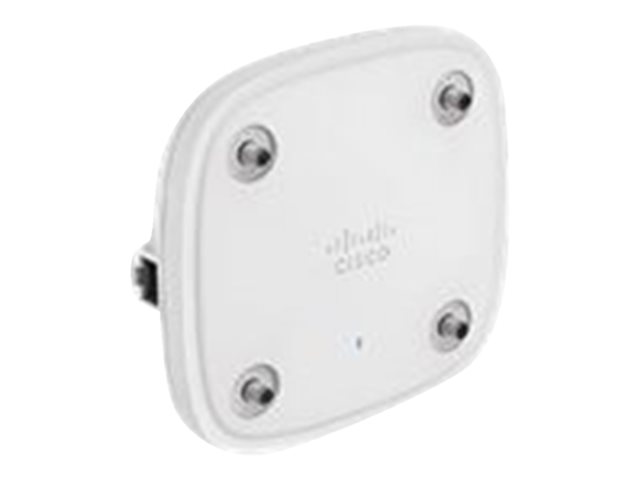

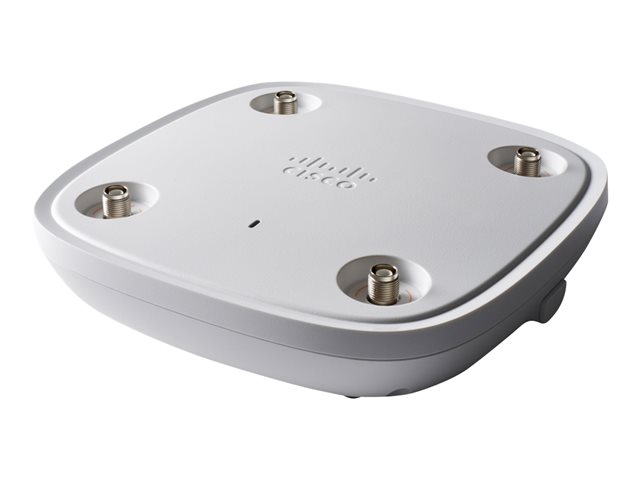

Cisco Catalyst 9120AXE

Name: Cisco Catalyst 9120AXE
Brand: CISCO
SKU: ECE5470437
Price: 1202.69 EUR
Availability: InStock

View all CISCO Access Points - Visit the CISCO Store (C9120AXE-E) - (ECE5470437)

Model: Cisco Catalyst

Catalyst 9120AXE - Radio access point - 802.15.4, Bluetooth, Wi-Fi 6 - 2.4 GHz, 5 GHz

POWERFUL Wi-Fi 6 PERFORMANCE
CISCO CLEANAIR
ECOSYSTEM
EMBEDDED WIRELESS CONTROLLER
PEACE OF MIND

FREE Delivery on orders over €250

68 Available to Ship
Order within 3Hrs 18Mins for: FREE Delivery (8 Jun or 9 Jun)

RRP ~~€1613.67~~

€1202.69 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

The Catalyst 9120 Access Points are designed for mission-critical deployments with dual 5-GHz and integrated IoT radio. With CleanAir technology powered by Cisco RF ASIC, the C9120 access point goes beyond the Wi-Fi 6 (802.11ax) standard, providing radio-frequency excellence for high-density environments. These access points are resilient and intelligent while providing integrated security for mobile and IoT devices. Pairing with Cisco DNA, it further offers real-time analytics, quickly detect and contain security threats, and a network-wide consistency through automation and virtualisation.

Features Summary

POWERFUL Wi-Fi 6 PERFORMANCE
4x4 Flexible Dual Radio with 5GHz and 2.4GHz or two 5GHz configuration, up to 5.38 Gbps data rate, uplink/downlink OFDMA, MU-MIMO, BBS colouring, TWT and Embedded IoT radios enabling BLE 5.0 and Zigbee
CISCO CLEANAIR
Powered by Cisco RF ASIC, offer superior analytics and security
ECOSYSTEM
End-point interoperability and optimised performance on Apple and Samsung devices
EMBEDDED WIRELESS CONTROLLER
Controller functions embedded in the Access Point for easy deployment, network monitoring and troubleshooting. Support with WebGUI and mobile app (C9120AXI(E)-EWC models only)
PEACE OF MIND
90-day software and limited lifetime hardware warranty

Specification Summary

Product Description

Cisco Catalyst 9120AXE - radio access point - 802.15.4, Bluetooth, Wi-Fi 6

Device Type

Radio access point

Form Factor

External - indoor

RAM

2 GB

Flash Memory

1 GB

Data Link Protocol

IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2, Bluetooth 5.0, IEEE 802.11ax (Wi-Fi 6)

Frequency Band

2.4 GHz, 5 GHz

Power Over Ethernet (PoE) Supported

UPOE

Dimensions (WxDxH)

21.6 cm x 21.6 cm x 5.1 cm

Weight

1.36 kg

Manufacturer Warranty

Limited lifetime warranty

Specifications

EAN / GTIN:

889728227223

General

Device Type

Radio access point

Ruggedized Design

Indoor

Width

21.6 cm

Depth

21.6 cm

Height

5.1 cm

Weight

1.36 kg

Processor / Memory / Storage

RAM

2 GB

Flash Memory

1 GB

Networking

Form Factor

External

Connectivity Technology

Wireless

Line Coding Format

OFDMA

Data Link Protocol

IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2, Bluetooth 5.0, IEEE 802.11ax (Wi-Fi 6)

Network / Transport Protocol

IPSec, IPv6

Remote Management Protocol

NETCONF, RESTCONF

Frequency Band

2.4 GHz, 5 GHz

Status Indicators

Status

Features

DFS support, Access Control List (ACL) support, Quality of Service (QoS), Maximum Ratio Combining (MRC), Wireless Intrusion Prevention System (WIPS), Cisco VideoStream technology, radio resource management (RRM), cyclic shift diversity (CSD), beamforming technology, packet aggregation A-MPDU, packet aggregation A-MSDU, Pre-Shared Key (PSK), Dynamic Frequency Selection (DFS), Dynamic QoS, guest access, secure boot, 4x4:4 MU-MIMO technology, Target Wait Time (TWT), image signing, Cisco Trust Anchor module

Encryption Algorithm

AES, TLS, PEAP, TTLS, WPA, WPA2, FIPS, EAP-SIM, EAP-FAST

Authentication Method

MS-CHAP v.2, Extensible Authentication Protocol (EAP), EAP-FAST, EAP-SIM

Compliant Standards

IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.11d, IEEE 802.1x, IEEE 802.11i, IEEE 802.11h, IEEE 802.11n, IEEE 802.3at, IEEE 802.11ac Wave 2, IEEE 802.3bz, IEEE 802.3bt, IEEE 802.11ax, Wi-Fi CERTIFIED 6

Aerial

Antenna

External detachable

Internet of Things (IoT)

Internet of Things (IoT) Compatible

Yes

Communications Technology

Bluetooth Low Energy (LE)

Expansion / Connectivity

Interfaces

1 x 1/2.5GBase-T - RJ-45 ¦ 1 x management - RJ-45 ¦ 1 x USB 2.0 ¦ 4 x aerial

Miscellaneous

Compliant Standards

CISPR 24, EN 61000-3-2, ICES-003, EN 61000-3-3, EN55024, AS/NZS 60950-1, RSS-102, UL 2043, UL 60950-1, IEC 60950-1, EN 60950-1, AS/NZS 4268, FCC CFR47 Part 15 C, FCC CFR47 Part 15 B, VCCI V-3, EN 62209-1, SRRC, EN 300 328, CNS 13438, EN 50385, EN 62209-2, EN 60601-1-1, EN 301 489-1, LP0002, RSS-247, KN32, AS/NZS CISPR 32 Class B, USGv6, TCVN 7189, EN 301 893, CISPR 32, EN 55032, CAN/CSA-C22.2 No. 60950-1, EN 55035, EMI Class B, EN 301 489-17, AS/NZS 2772, ARPANSA, KN 61000-3-2, KN 61000-3-3, KN 489-1, QCVN, KN 489-17, RSP-100, RSS-GEN

Power

Power Over Ethernet (PoE) Supported

UPOE

Software / System Requirements

Software Included

CAPWAP Software Image

Manufacturer Warranty

Service & Support

Limited warranty - lifetime

Environmental Parameters

Min Operating Temperature

-20 °C

Max Operating Temperature

50 °C

Humidity Range Operating

10 - 90% (non-condensing)
