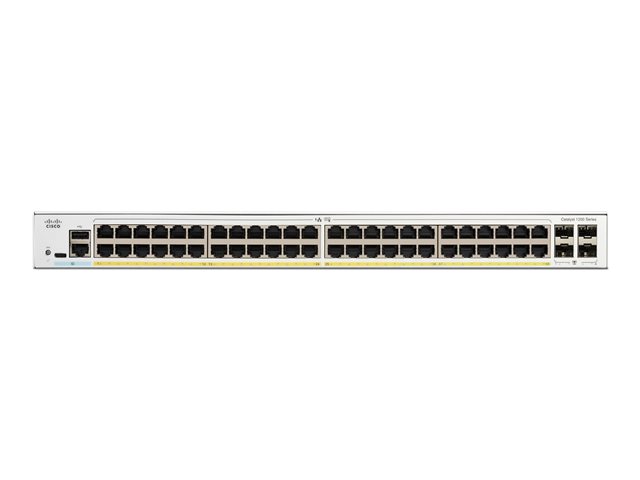

Device Type
Switch - 48 ports - L3 - smart
Enclosure Type
Rack-mountable
Ports
48 x 10/100/1000 (PoE+) + 4 x Gigabit SFP
Power Over Ethernet (PoE)
PoE+
Performance
Forwarding rate (64-byte packets): 77.38 Mpps ¦ Switching capacity: 104 Gbps
Capacity
MSTP instances: 8 ¦ PVST+ instances: 126 ¦ RPVST+ instances: 126 ¦ Link aggregation groups: 4 ¦ Link aggregation ports: 8 ¦ Active VLANs: 255 ¦ IGMP multicast groups: 255 ¦ IPv4 routes (static): 32 ¦ IPv4 interfaces: 16 ¦ ACL rules: 512 ¦ Priority queues: 8 ¦ Packet buffer size: 3 MB
MAC Address Table Size
8000 entries
Jumbo Frame Support
9000 bytes
Routing Protocol
STP, static IP routing, MSTP, RSTP, IGMP, IGMPv2, IGMPv3, CIDR, MLD, MLDv2, Bounjour
Remote Management Protocol
CLI, Telnet, SSH, SSH-2, DHCP, ICMP, SNMP, RADIUS, Syslog, HTTP, HTTPS, SNMP 2c, SNMP 3, RMON, TFTP, SCP
Authentication Method
RADIUS
Features
1 fan, QoS, ACL support, eco-friendly button, EEE, PVST+, Link Aggregation, port grouping, LACP, LAG, VLAN support, Auto Surveillance VLAN, Guest VLAN, port-based VLAN, tag-based VLANs, VLAN management, Voice VLAN, VSDP, Zero-Touch Deployment, GARP, GVRP, IGMP snooping, IGMP querier, loopback detection, UDP, BOOTP support, STP loop guard, SCT, SSD, trustworthy systems, Port Security, Broadcast Storm Control, Multicast Storm Control, Storm Control, Unknown Storm Control, DoS attack prevention, TCP/UDP proxy, DSCP based CoS, SP, WRR queuing, CoS, ToS, DiffServ support, EQS, ingress rate limiting, TCP congestion, SNTP support, TFTP support, DHCP client, DNS client, SNMP trap, remote firmware upgrade, Cable Diagnostics Function, DHCP server, port mirroring, SCP, VLAN mirroring, Telnet client, cable length detection, chip guard, boot integrity, LLDP, LLDP-MED, CDP, reset button, time-based port operation, IPv4 and IPv6 dual stack, Telnet server, DAD, path MTU discovery, WRR, Unicast Storm Control, DoS protection, HoL Blocking Prevention, DHCP relay, RPVST+, MSTP support, layer 3 routing
Compliant Standards
IEEE 802.1x, IEEE 802.3az, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.3ad (LACP), IEEE 802.1Q, IEEE 802.1p, IEEE 802.1ab (LLDP), IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.3at, IEEE 802.3af
Status Indicators
System, link/activity/speed, PoE
Interfaces
48 x 10/100/1000 Base-T (PoE+) RJ-45 ¦ 4 x 10GBase-X SFP ¦ 1 x console RJ-45 ¦ 1 x USB-C console
Power Device
Internal power supply
Voltage Required
AC 100-240 V (50 - 60 Hz)
Included Accessories
Pointer card, mounting kit
Compliant Standards
Plug and Play, RFC768, RFC783, RFC791, RFC792, RFC793, RFC813, RFC826, RFC879, RFC896, RFC854, RFC855, RFC856, RFC858, RFC894, RFC919, RFC920, RFC922, RFC950, RFC951, RFC1042, RFC1071, RFC1123, RFC1141, RFC1155, RFC1157, RFC1213, RFC1215, RFC1286, RFC1350, RFC1442, RFC1451, RFC1493, RFC1533, RFC1541, RFC1542, RFC1573, RFC1624, RFC1643, RFC1700, RFC1757, RFC1867, RFC1907, RFC2011, RFC2012, RFC2013, RFC2030, RFC2131, RFC2132, RFC2233, RFC2576, RFC2616, RFC2618, RFC2665, RFC2666, RFC2674, RFC2737, RFC2819, RFC2863, RFC3164, RFC3176, RFC3411, RFC3412, RFC3413, RFC3414, RFC3415, RFC3416, RFC4330, RFC4443, RFC4291, RFC2460, RFC4861, RFC4862, RFC1981, RFC4007, RFC3484, RFC5214, RFC4293, RFC3595, CSA 22.2, FCC CFR47 Part 15, UL 62368, WEEE
Service & Support
Limited warranty - lifetime - response time: next business day ¦ Technical support - consulting - 1 year
Min Operating Temperature
-5 °C
Max Operating Temperature
50 °C
Humidity Range Operating
10 - 90% RH (non-condensing)
Min Storage Temperature
-25 °C
Max Storage Temperature
70 °C
Humidity Range Storage
10 - 90% RH (non-condensing)
