Overview

Range/Series Overview


IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

500VA / 300W line-interactive UPS Controls LED brightness , Quick Mute and Generator Setting by pressing one single power button. Our New BX Series offers Dataline protection for data transmission through Network with 1 gigabit speed. Ideal for Home and Office Users USB communication cable ready to use.


Specification Summary

Product Description

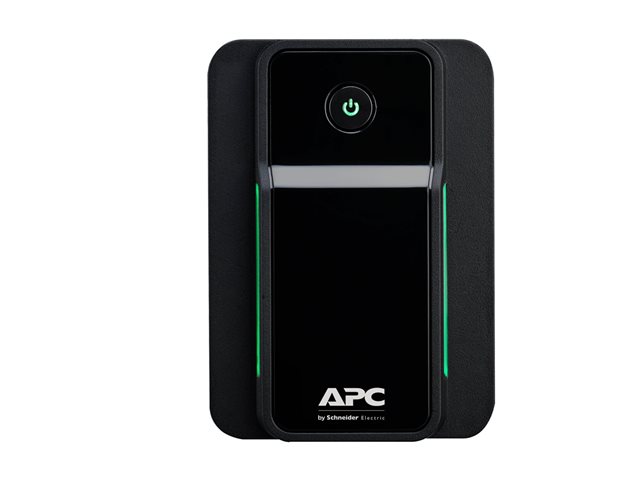

APC Back-UPS BX Series BX500MI - UPS - 300 Watt - 500 VA
Device Type
UPS - external
Weight
4.5 kg
Input Voltage
AC 230 V
Output Voltage
AC 230 V ± 10%
Power Capacity
300 Watt / 500 VA
Input Connectors
1 x power IEC 60320 C14
Output connectors
4 x power IEC 60320 C13
Battery
Lead Acid - 9 Ah
Batteries Qty
1
Run Time (Up To)
8.5 min at half load
Dimensions (WxDxH)
12 cm x 35.5 cm x 16 cm
Manufacturer Warranty
2-year warranty

Specifications

EAN / GTIN:
731304435648
General
Device Type
UPS - external
Power Device
UPS Technology
Line interactive
Input Voltage
AC 230 V
Input Voltage Range
AC 140 - 300 V
Frequency Provided
50/60 Hz
Frequency Required
50/60 Hz
Input Connectors
1 x power IEC 60320 C14
Power Output Connectors Details
4 x power IEC 60320 C13
Output Voltage
AC 230 V ± 10% - 50/60 Hz
Power Capacity
300 Watt / 500 VA
Dataline Surge Protection
Network - RJ-45 - 1 input line / 1 output line
Output Waveform
Stepped approximation to a sinewave
Surge Energy Rating
273 Joules
Circuit Protection
Fuse
Battery
Quantity
1
Technology
Lead Acid
Voltage Provided
12 V
Capacity
9 Ah
Run Time (Up To)
8.5 min at 50% load ¦ 1 min at full load
Recharge Time
6 hours
Transfer Time
6 ms
Features
Maintenance free, sealed
Expansion / Connectivity
Interfaces
1 x USB
Miscellaneous
Features
Automatic Voltage Regulation (AVR), audible alarm
Compliant Standards
EN 62040-1, CB, IEC 62040-1, IEC 62040-2, IP20
Software / System Requirements
Software Included
APC PowerChute Personal Edition
Manufacturer Warranty
Service & Support
Limited warranty - replace or repair - 2 years
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
0 - 95%
Dimensions & Weight
Width
12 cm
Depth
35.5 cm
Height
16 cm
Weight
4.5 kg
Dimensions & Weight (Shipping)
Shipping Width
19.7 cm
Shipping Depth
43 cm
Shipping Height
25 cm
