APC Back-UPS BX Series BX1600MI - UPS - 900 watt -

Images Manuals

Images for illustrative purposes

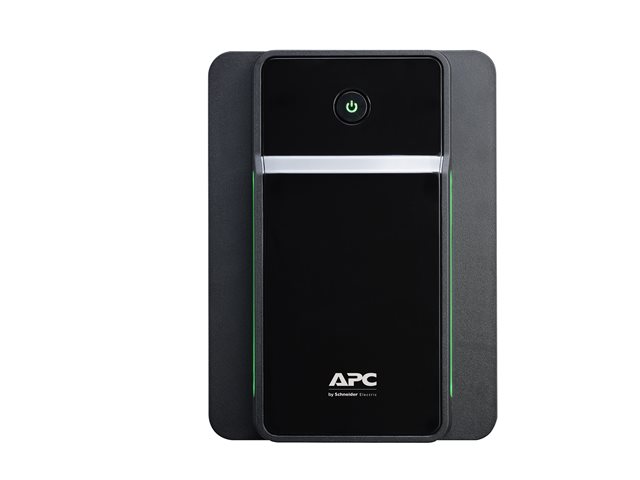

APC Back-UPS BX Series BX1600MI

Name: APC Back-UPS BX Series BX1600MI
Brand: APC
SKU: WCEBX1600MI
Price: 232.24 EUR
Availability: InStock

View all APC Uninteruptable Power Supply - Visit the APC Store (BX1600MI) - (WCEBX1600MI)

Model: APC Back-UPS

Back-UPS BX Series BX1600MI - UPS - 900 watt - 1600 VA

PowerChute Personal Edition OS Compatibility
USB connection
Automatic Voltage Regulation (AVR)
LED Indicators

FREE Delivery on orders over €250

**Note: There may be an extra delivery charge on some very large UPS, we will notify you if this is the case. Please ensure you are buying the correct UPS or Battery, once a UPS or Battery is opened it cannot be returned. Please contact sales through email, chat or phone if you need to confirm.

195 Available to Ship
Order within 8Hrs 42Mins for: Delivery (8 Jun or 9 Jun)

RRP ~~€295.19~~

€232.24 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

This APC Back-UPS offers power and surge protection for wireless networks, computers, gaming consoles and other electronics in your home or business. The 1600VA tower UPS has 6 total outlets, 4 of which are battery back up and surge protection, and 2 that are surge protection only. It has a surge energy rating of 273 Joules. It features Automatic Voltage Regulation to correct voltage dips and surges to proper levels. This UPS has a 2-year warranty and CE product certification.

Features Summary

PowerChute Personal Edition OS Compatibility
This software supports numerous operating systems and processors. lt/ /a gt/
USB connection
Use your PC to access additional power protection and management features for your UPS via a USB Port.
Automatic Voltage Regulation (AVR)
Automatically steps up low voltage and steps down high voltage to levels that are suitable for your equipment.
LED Indicators
Provide easy-to-read status of the unit and utility power conditions.

Specification Summary

Product Description

APC Back-UPS BX Series BX1600MI - UPS - 900 watt - 1600 VA

Device Type

UPS - external

Weight

10.3 kg

Input Voltage

AC 230 V

Output Voltage

AC 230 V ± 10%

Power Capacity

900 watt / 1600 VA

Input Connectors

1 x power IEC 60320 C14

Output connectors

6 x power IEC 60320 C13

Battery

Lead Acid - 7 Ah

Batteries Qty

Run Time (Up To)

6.5 min at half load

Dimensions (WxDxH)

14 cm x 39 cm x 19 cm

Manufacturer Warranty

2-year warranty

Specifications

EAN / GTIN:

731304410829

General

Device Type

UPS - external

Power Device

UPS Technology

Line interactive

Input Voltage

AC 230 V

Input Voltage Range

AC 140 - 300 V

Frequency Provided

50/60 Hz

Frequency Required

50/60 Hz

Input Connectors

1 x power IEC 60320 C14

Power Output Connectors Details

6 x power IEC 60320 C13

Output Voltage

AC 230 V ± 10% - 50/60 Hz

Power Capacity

900 watt / 1600 VA

Dataline Surge Protection

Network - RJ-45 - 1 input line / 1 output line

Output Waveform

Stepped approximation to a sinewave

Surge Energy Rating

273 joules

Circuit Protection

Fuse

Battery

Quantity

Technology

Lead Acid

Voltage Provided

12 V

Capacity

7 Ah

Run Time (Up To)

6.5 min at 50% load ¦ 1 min at full load

Recharge Time

8 hours

Transfer Time

6 ms

Features

Maintenance free, sealed

Expansion / Connectivity

Interfaces

1 x USB

Miscellaneous

Cables Included

Power cable - external - 1.2 m

Features

Automatic Voltage Regulation (AVR), audible alarm

Compliant Standards

EN 62040-1, CB, IEC 62040-1, IEC 62040-2, IP20

Software / System Requirements

Software Included

APC PowerChute Personal Edition

Manufacturer Warranty

Service & Support

Limited warranty - replace or repair - 2 years

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

40 °C

Humidity Range Operating

0 - 95%

Dimensions & Weight

Width

14 cm

Depth

39 cm

Height

19 cm

Weight

10.3 kg

Dimensions & Weight (Shipping)

Shipping Width

23.5 cm

Shipping Depth

49.5 cm

Shipping Height

29.7 cm

Shipping Weight

11.3 kg
