Device Type
Conference camera
Audio Support
Yes: two-way audio capability
Camera Mount Type
Ceiling mount
Connectivity Technology
Wired
Type
Colour - Day&Night - pan / tilt / zoom
Digital Video Format
H.264, H.265
Horizontal Resolution (TV Lines)
1700
Max Digital Video Resolution
3840 x 2160
Video Modes
2160/29.97p, 2160/25p, 2160/23.98p, 1080/59.94p, 1080/50p, 1080/30p, 1080/25p, 1080/23.98p, 1080/59.94i, 1080/50i, 720/59.94p, 720/50p
Exposure Range
1/1 sec - 1/10000 sec
Minimum Illumination
1.6 lux F2.0 - 50 IRE - shutter 1/30 sec
Digital Video Capture Resolution
3840 x 2160, 1920 x 1080, 1280 x 720, 720 x 576, 720 x 480, 640 x 360
Frame Rate (max)
60 frames per second
Features
Exposure control, auto white balance, Clear Image Zoom, 256 preset positions, Picture Freeze Preset, PTZ Motion Sync, PTZ Trace Memory, Constant Bitrate (CBR), Variable Bitrate (VBR), ICR filter, Visibility Enhancer, Image Stabilisation, image flip, Picture Setting File, Picture Profile Preset, Color Gain (15 step), Color Hue (15 step), Gamma Level (15 step), Black Level (97 step), Black Gamma (15 step), Knee Point (13 step), Knee Slope (15 step), Flicker Cancel, Color Bar Overlay Name, standby mode, Auto Level Control (ALC)
Type
8.5 MP Exmor R CMOS 1/2.5"
Focal Length
4.4 mm - 88 mm
Focus Adjustment
Automatic, manual
Horizontal Field of View (degree)
70
Range (degree)
-170 to +170
Speed (degree/sec)
Up to 300
Range (degree)
-20 to +90
Speed (degree/sec)
Up to 126
Network Protocols
IPv4, IPv6, TCP/IP, UDP/IP, ARP, ICMP, IGMP, HTTP, HTTPS, DHCP, DNS, RTP, RTCP, RTSP, UPnP, NDI HX

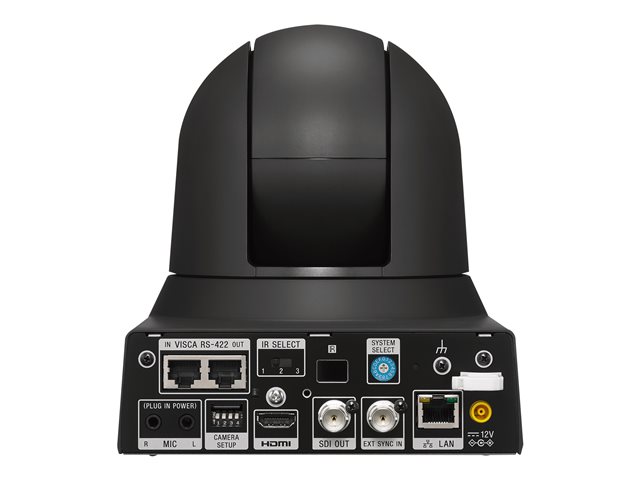

Ports
Serial RS-422 - RJ-45 ¦ VISCA input - RJ-45 ¦ Microphone ¦ HDMI output ¦ 3G-SDI ¦ Sync signal input ¦ LAN/power - RJ-45
Included Accessories
IR remote commander unit, 2 ceiling mount brackets, wire rope, 9 screws M3x8, screw M2.6x6, HDMI cable fixing plate
Compliant Standards
IEEE 802.3at
Power Requirements
DC 12 V / PoE Plus
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
