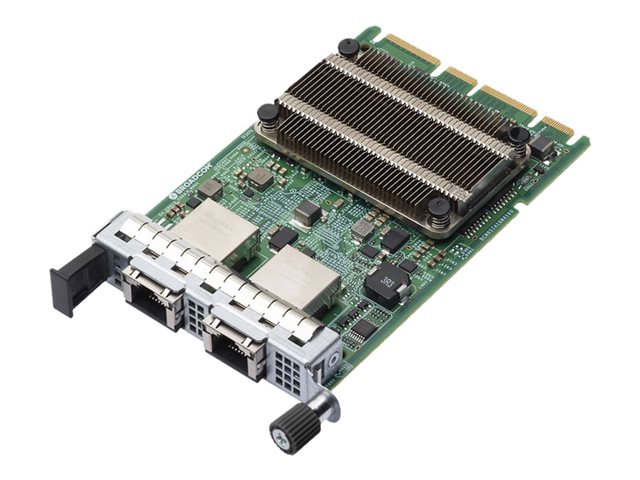

Broadcom NetXtreme E-Series N210TP

View all BROADCOM PCI / M.2 Cards and Adapters - Visit the BROADCOM Store (BCM957416N4160C) - (ECE5756375)

NetXtreme N210TP - 2x 10GBASE-T OCP 3.0

Enhanced connectivity
Advanced networking features
Comprehensive standards compliance
Efficient power and data management
Virtualization and offload support

FREE Delivery on orders over €250

154 Available to Ship
Order within 3Hrs 45Mins for: FREE Delivery (8 Jun or 9 Jun)

RRP ~~€743.17~~

€479.75 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

Based on Broadcom's scalable 10/25/50/100/200G Ethernet controller architecture, the NetXtreme -E Series N210TP 2x10GBASE-T OCP 3.0 adapter is designed to build highly-scalable, feature-rich networking solutions in servers for enterprise and cloud-scale networking and storage applications, including high-performance computing, Telco, machine learning, storage disaggregation, and data analytics.

The N210TP 2x10GBASE-T OCP 3.0 adapter builds upon the success of the widely-deployed NetXtreme E-Series architecture by combining a high-bandwidth Ethernet controller with a unique set of highly-optimized hardware acceleration engines to enhance network performance and improve server efficiency.

The NetXtreme-E Series N210TP 2x10GBASE-T OCP 3.0 adapter addresses these performance and service demands of mega-scale data center networks with high throughput and advanced flow processing. Features such as TruFlow increase VM density up to 50 percent, freeing more CPU cycles for additional virtual machines. On-chip tunneling protocol processing for Geneve, VXLAN, and NVGRE provides up to a 5X throughput increase while lowering CPU utilization up to 90 percent compared to software-only solutions. NetXtreme-E Series solutions also support advanced networking technologies such as RoCE, SDN and NFV, to facilitate the management of data networks and to enable service provider solutions.

Features Summary

Enhanced connectivity
The Broadcom NetXtreme E-Series N210TP network adapter offers robust connectivity options with its dual RJ-45 connectors, supporting both 1/10GBase-T for versatile and high-speed network connections.
Advanced networking features
This adapter is equipped with a suite of advanced features such as Data Center Bridging (DCB), Jumbo Frames support up to 9000 bytes, and Receive Side Scaling (RSS), enhancing the efficiency and performance of your data center's network infrastructure.
Comprehensive standards compliance
Compliant with key industry standards including IEEE 802.3ab, IEEE 802.3an, and OCP 3.0, the N210TP ensures interoperability and reliable performance in diverse networking environments.
Efficient power and data management
Features like Wake On LAN (WOL) and a power consumption of only 14.6 watts during operation make the N210TP an energy-efficient choice that can help reduce operational costs while maintaining high data transfer rates of up to 10 Gbps.
Virtualization and offload support
With support for technologies like Single Root I/O Virtualization (SR-IOV), TCP/IP checksum offload, and Virtual Extensible LAN (VXLAN), the N210TP is designed to optimize virtualized environments and streamline data processing tasks.

Specification Summary

Product Description

Broadcom NetXtreme E-Series N210TP - network adapter - PCIe 3.0 x8 - Gigabit Ethernet / 10Gb Ethernet x 2

Device Type

Network adapter

Interface (Bus) Type

PCI Express 3.0 x8

PCI Specification Revision

PCI 3.0

Ports

Gigabit Ethernet / 10Gb Ethernet x 2

Cabling Type

Ethernet 1000Base-T, Ethernet 10GBase-T

Data Link Protocol

1GbE, 10 Gigabit Myrinet

Data Transfer Rate

10 Gbps

Processor

Broadcom BCM57416

Compliant Standards

IEEE 802.3ab, IEEE 802.3an, OCP 3.0

Specifications

EAN / GTIN:

8592978267001

General

Device Type

Network adapter

Interface (Bus) Type

PCI Express 3.0 x8

PCI Specification Revision

PCI 3.0

Networking

Ports

Gigabit Ethernet / 10Gb Ethernet x 2

Connectivity Technology

Wired

Cabling Type

Ethernet 1000Base-T, Ethernet 10GBase-T

Data Link Protocol

Gigabit Ethernet, 10 Gigabit Myrinet

Data Transfer Rate

10 Gbps

Status Indicators

Link/activity

Features

WOL, auto-uplink (auto MDI/MDI-X), DCBX support, PXE support, LSO, LRO, RSS, UEFI support, SR-IOV, DCB, TSO, MSI-X, GRE, TSS, iSCSI boot, TCP/IP checksum offload, UDP/IP checksum offload, RoCE, PFC, NC-SI, VXLAN, NVGRE, FLR, MSI, Jumbo Frames support (up to 9000 bytes), Mware NetQueue and Microsoft VMQ, MCTP over SMBus, TruFlow, Interrupt coalescing, ETS, QCN, OCP 3.0 support, vSwitch Acceleration, tunnel-aware stateless offloads, SMBus 2.0, NetQueue

Compliant Standards

IEEE 802.3ab, IEEE 802.3an, OCP 3.0

Processor / Memory

Processor

Broadcom BCM57416

Expansion / Connectivity

Interfaces

2 x 1/10GBase-T - RJ-45

Miscellaneous

Compliant Standards

EMC

Power
