Broadcom BCM957414M4143C

View all BROADCOM PCI / M.2 Cards and Adapters - Visit the BROADCOM Store (BCM957414M4143C) - (ECE7328330)

BCM957414M4143C - Network adapter - PCIe 3.0 x8 Mezzanine - 50 Gigabit QSFP28 x 1

Enhanced connectivity
Advanced networking features
Comprehensive virtualization support
Efficient network management
Environmental resilience

FREE Delivery on orders over €250

0 Available to Ship
Restock 12-Jul-2027 Estimated, Out of Stock Prices are Estimated.

RRP ~~€538.53~~

€359.75 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

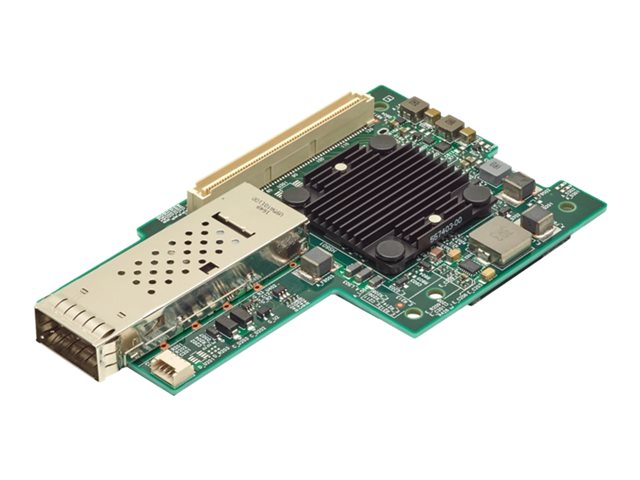

The Broadcom BCM957414M4143C is a single-port 50 Gb/s, PCI Express 3.0 x8 Mezzanine Card, designed to the Open Compute Project (OCP) Mezzanine Card 2.0 Design Specification with a QSFP28 network connector as a Type 1 adapter with the board outline adhering to the original v0.5 dimensions. The adapter supports both QSFP28 optical modules and copper direct-attach cables. The card uses the Broadcom BCM57414 50GbE MAC controller with an integrated single-channel 50GbE SFI transceiver.

Specification Summary

Product Description

Broadcom BCM957414M4143C - network adapter - PCIe 3.0 x8 Mezzanine - 50 Gigabit QSFP28 x 1

Device Type

Network adapter

Form Factor

Plug-in module

Interface (Bus) Type

PCI Express 3.0 x8 Mezzanine

PCI Specification Revision

PCIe 3.0

Ports

50 Gigabit QSFP28 x 1

Weight

75 g

Data Link Protocol

50GbE

Specifications

EAN / GTIN:

650861000161

General

Device Type

Network adapter

Form Factor

Plug-in module

Interface (Bus) Type

PCI Express 3.0 x8 Mezzanine

PCI Specification Revision

PCIe 3.0

Networking

Ports

50 Gigabit QSFP28 x 1

Connectivity Technology

Wired

Data Link Protocol

50 Gigabit Ethernet

Status Indicators

Link/activity

Features

OCP 2.0 support, SR-IOV, FLR, TruFlow, VXLAN, NVGRE, GENEVE support, GRE, vSwitch Acceleration, tunnel-aware stateless offloads, DCBX support, ETS, PFC, QCN, MSI-X, Interrupt coalescing, iSCSI boot, 9 KB Jumbo Frame, LRO, LSO, MCTP over SMBus, MSI, NC-SI, PXE support, RoCE, RSS, SMBus 2.0, TSO, TCP/IP checksum offload, TSS, UDP/IP checksum offload, UEFI support, VMware NetQueue and Microsoft VMQ, WOL

Expansion / Connectivity

Interfaces

1 x 50Gb Ethernet - QSFP28

Miscellaneous

Compliant Standards

RoHS, MSA SFF-8665

Dimensions & Weight

Weight

75 g

Environmental Parameters

Min Operating Temperature

-40 °C
