EAN / GTIN:
0037332258656
Device Type
Video/audio extender
Form Factor
Wall mountable
Connectivity Technology
Wired
Data Link Protocol
HDMI, DisplayPort
Max Resolution
3840 x 2160 @ 60 Hz
Max Transfer Distance
70 m
Status Indicators
Power, active, connection status
Features
3D support, 4K resolution support, 7.1 channel audio support, power over cable (PoC), Dolby TrueHD support, DTS-HD support, HDR support, zero transition delay, 4:4:4 chroma subsampling support, 36-bit True Colour support
Compliant Standards
HDCP 2.2
Interfaces

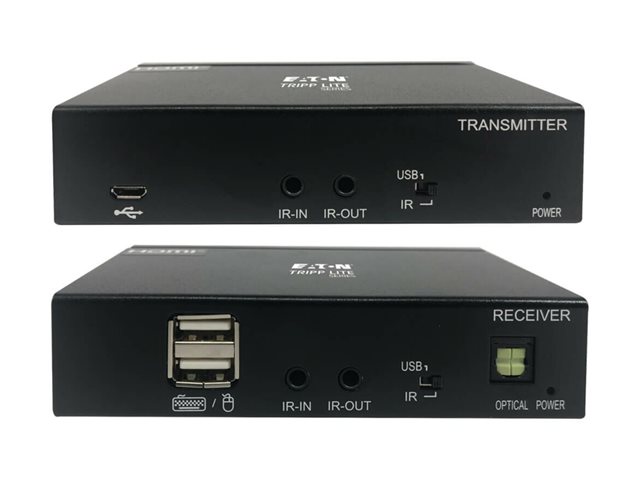

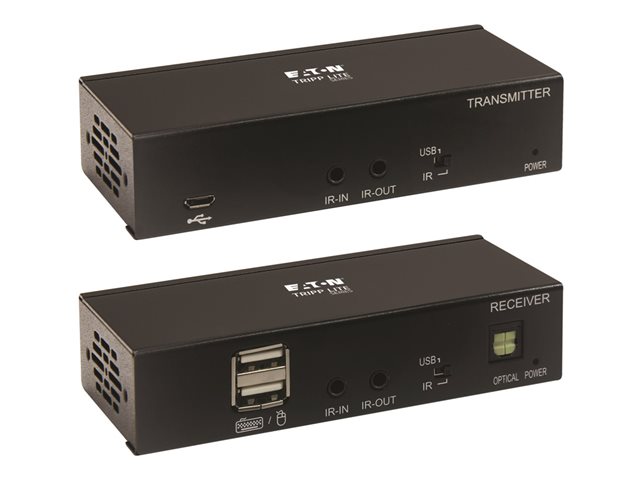

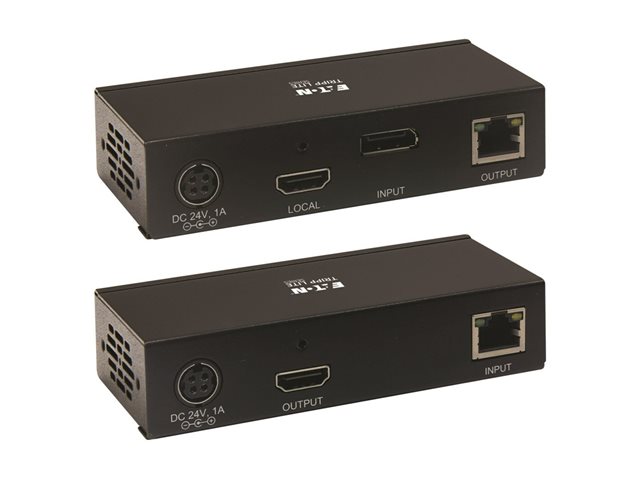

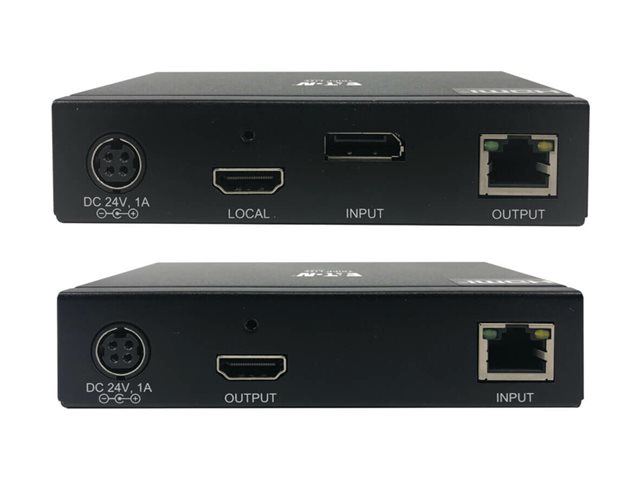

1 x audio / video (transmitter) - 19 pin HDMI Type A female ¦ 1 x network (transmitter) - RJ-45 female ¦ 1 x DisplayPort (transmitter) female ¦ 1 x micro-USB (transmitter) female ¦ 2 x line input/output (transmitter) - phone 3.5 mm female ¦ 2 x network (receiver) - RJ-45 female ¦ 2 x line input/output (receiver) - phone 3.5 mm female ¦ 1 x audio (receiver) - TOSLINK female ¦ 1 x audio / video (receiver) - 19 pin HDMI Type A female ¦ 2 x USB - Type A female
Compliant Standards
UL, TUV, cUL, GS, CCC, FCC, RoHS, REACH, CEC, EDID compatible
Power Over Ethernet (PoE)
PoC
Power Device
External power adapter
Voltage Required
AC 120/230 V (50/60 Hz)
Dimensions (WxDxH) / Weight Details
Transmitter: 11.5 cm x 6.24 cm x 2.7 cm / 454 g ¦ Receiver: 11.5 cm x 6.24 cm x 2.7 cm / 454 g
Service & Support
Limited warranty - 1 year
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
0 - 85% (non-condensing)
Compatibility Information
Designed For
P/N: B127A-010-H, P568FA-100M-WR, P568FA-10M, P568FA-20M, P568FA-30M-W, P568FA-50M-W, P568FA-70M-WR, P580-015-8K6, P580-020-8K6, P580-025-8K6, P580-030-8K6, P580-035-4K6, P580-050-4K6, P580-070-4K6
