Eaton Tripp Lite Series DisplayPort over Cat6 KVM Extender Kit, Transmitter and Receiver, USB, 4K 30Hz, DP1.2a, PoC, HDCP 2.2, 230 ft., TAA

Images for illustrative purposes

Eaton Tripp Lite Series DisplayPort over Cat6 KVM Extender Kit, Transmitter and Receiver, USB, 4K 30Hz, DP1.2a, PoC, HDCP 2.2, 230 ft., TAA

View all EATON Repeaters | Tranceivers - Visit the EATON Store (B127A-1A1-BDBD) - (ECE7413693)

Tripp Lite Series DisplayPort over Cat6 KVM Extender Kit, Transmitter and Receiver, USB, 4K 30Hz, DP1.2a, PoC, HDCP 2.2, 230 ft., TAA - Video/audio extender - 10Mb LAN, HDMI, DisplayPort - over CAT 6 - up to 70 m - TAA Compliant

DisplayPort Extender Kit Ideal for Digital Signage in Schools, Restaurants and Lecture Halls
Transmits Crystal-Clear 4K Video with Multi-Channel Audio and 4:4:4 Color
Local HDMI Port on Transmitter Supports 4K @ 30 Hz Resolution
Built-In PoC Technology Provides Receiver Power to Avoid Bulky External Power Bricks
Plug-and-Play Operation for Quick Setup and Immediate Use
View More
TAA-Compliant for GSA Schedule Purchases

FREE Delivery on orders over €250

0 Available to Ship
Restock 03-Jul-2026 Estimated, Out of Stock Prices are Estimated.

€319.75 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

DisplayPort over Cat6 Extender Kit, KVM Support, USB, 4K, DP1.2a, PoC, HDCP 2.2, 230 ft. (70 m), TAA.

Specification Summary

Product Description

Eaton Tripp Lite Series DisplayPort over Cat6 KVM Extender Kit, Transmitter and Receiver, USB, 4K 30Hz, DP1.2a, PoC, HDCP 2.2, 230 ft., TAA - video/audio extender - 10Mb LAN, HDMI, DisplayPort - TAA Compliant

Device Type

Video/audio extender

Form Factor

Wall mountable

Localisation

Australia, North America, United Kingdom, Europe

Data Link Protocol

10Mb LAN, HDMI, DisplayPort

Transmission Medium

CAT 6

Max Transfer Distance

70 m

Power Over Ethernet (PoE)

PoC

Power

AC 120/230 V

TAA Compliant

Yes

Manufacturer Warranty

1-year warranty

Specifications

EAN / GTIN:

037332261311

General

Device Type

Video/audio extender

Form Factor

Wall mountable

Colour

Black

Localisation

Australia, North America, United Kingdom, Europe

Networking

Connectivity Technology

Wired

Data Link Protocol

10Mb LAN, HDMI, DisplayPort

Max Resolution

3840 x 2160 @ 30 Hz

Max Transfer Distance

70 m

Status Indicators

Power, active, connection status

Features

3D support, 4K resolution support, 7.1 channel audio support, power over cable (PoC), Dolby TrueHD support, DTS-HD support, HDR support, zero transition delay, 4:4:4 chroma subsampling support, 36-bit True Colour support

Compliant Standards

HDCP 2.2

Expansion / Connectivity

Interfaces

1 x audio / video (transmitter) - 19 pin HDMI Type A female ¦ 1 x network (transmitter) - RJ-45 female ¦ 1 x DisplayPort (transmitter) female ¦ 1 x micro-USB (transmitter) female ¦ 2 x line input/output (transmitter) - phone 3.5 mm female ¦ 1 x DisplayPort (receiver) female ¦ 1 x network (receiver) - RJ-45 female ¦ 2 x line input/output (receiver) - phone 3.5 mm female ¦ 2 x audio (receiver) - TOSLINK female ¦ 2 x USB (receiver) - Type A female

Miscellaneous

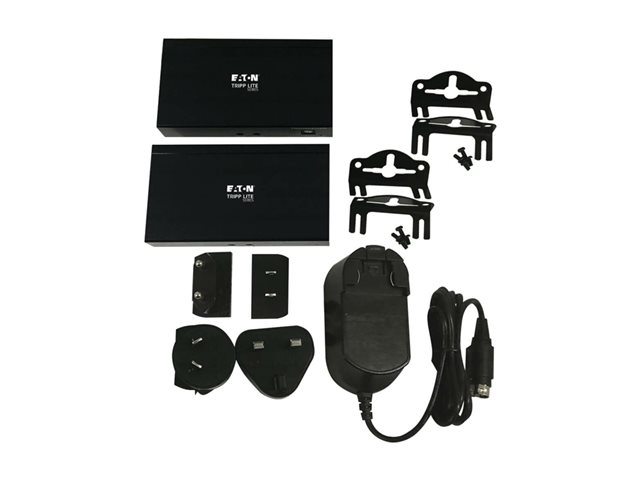

Included Accessories

4 power plug adapters

Mounting Kit

Included

Compliant Standards

UL, TUV, cUL, GS, CCC, FCC, RoHS, REACH, CEC, GSA, EDID compatible

TAA Compliant

Yes

Power

Power Over Ethernet (PoE)

PoC

Power Device

External power adapter

Installed Qty

Voltage Required

AC 120/230 V (50/60 Hz)

Dimensions & Weight

Dimensions (WxDxH) / Weight Details

Transmitter: 11.5 cm x 6.24 cm x 2.7 cm / 453.6 g ¦ Receiver: 11.5 cm x 6.24 cm x 2.7 cm / 453.6 g

Manufacturer Warranty

Service & Support

Limited warranty - 1 year

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

40 °C

Humidity Range Operating

0 - 85% (non-condensing)
