Device Type
Console server
Processor / Memory / Storage
Connectivity Technology
Wired
Data Link Protocol
Gigabit Ethernet, RS-232
Remote Management Protocol
SSH
Status Indicators
Port status, power, serial
Encryption Algorithm
SSL, FIPS 140-2
Authentication Method
RADIUS, TACACS+, LDAP
Compliant Standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP)
Interfaces

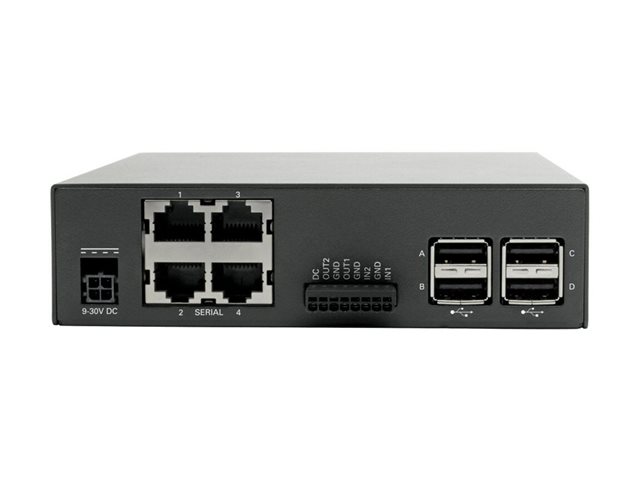

2 x 1000Base-T - RJ-45 ¦ 4 x serial - RJ-45 ¦ 4 x USB 2.0 - Type A ¦ 1 x - terminal block

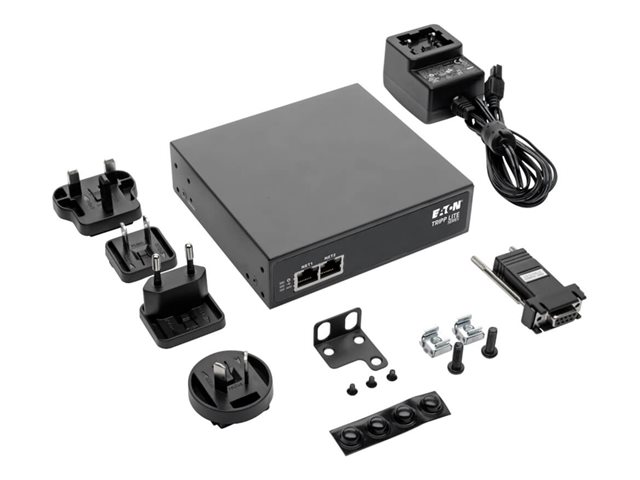

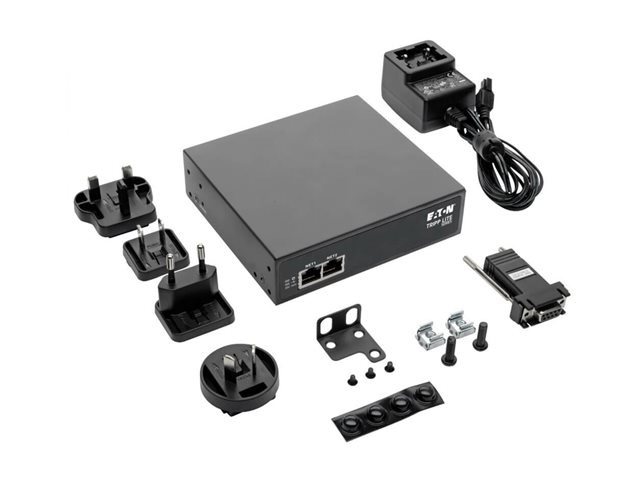

Included Accessories
4 rubber feet, rack mount kit, power terminal block
Cables Included
1 x serial adapter
Compliant Standards
UL, TUV, C-Tick, cUL, GS, CB, FCC, RoHS, FIPS 140-2, PSE Mark, PCI DSS
Power Device
External power adapter
Voltage Required
AC 120/230 V (50/60 Hz)
Power Consumption Operational
11.5 Watt
Software / System Requirements
Software Included
GUI software
Dimensions & Weight (Shipping)
Service & Support
Limited warranty - 4 Years
Min Operating Temperature
-25 °C
Max Operating Temperature
60 °C
Humidity Range Operating
5 - 90% (non-condensing)
