EAN / GTIN:
0037332269249
Device Type
KVM / audio / USB switch - 16 ports - cascadable
Enclosure Type
Rack-mountable 1U
KVM Local Users Qty
1 local user
Keyboard / Mouse Interface
USB
Max Resolution
4096 x 2160 @ 60 Hz
Features
2.1 channel audio support, Pushbutton/Hotkey switching, On-Screen Display
Status Indicators
Power, port status, USB
Interfaces
16 x HDMI input ¦ 16 x keyboard (USB) / mouse (USB) Type B ¦ 16 x audio input mini-jack ¦ 1 x HDMI output ¦ 2 x keyboard (USB) / mouse (USB) Type A ¦ 1 x audio output mini-jack
Power Device
External power adapter
Power Provided
12 V - 5 A
Voltage Required
AC 100-240 V
Power Consumption Operational
9.77 Watt

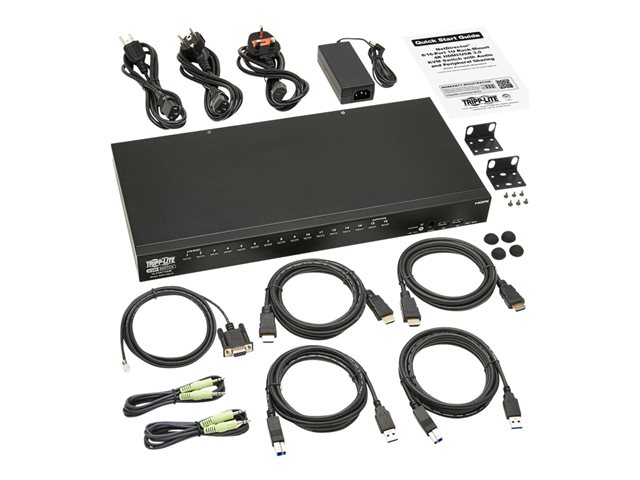

Included Accessories
4 rubber feet, 19" rack mounting kit, 3 power plug adapters
Cables Included
2 x keyboard / mouse / video / audio cable - 1.83 m ¦ 1 x serial cable - 1.83 m
Rack Mounting Kit
Included
Compliant Standards
C-Tick, CCC, China RoHS, DOE, GS, LPS, RoHS, TUV, UL, WEEE, cUL, NOM, REACH, FCC, HDCP 2.2
Dimensions & Weight (Shipping)
Service & Support
Limited warranty - 3 years
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
0 - 80% RH (non-condensing)
Min Storage Temperature
-20 °C
Max Storage Temperature
60 °C
