Eaton Tripp Lite series 4-Port DisplayPort KVM with Dual Console Ports (DP and HDMI), 4K 60Hz 4:4:4, DP1.4 with IR Remote

Images for illustrative purposes

Eaton Tripp Lite series 4-Port DisplayPort KVM with Dual Console Ports (DP and HDMI), 4K 60Hz 4:4:4, DP1.4 with IR Remote

Name: Eaton Tripp Lite series 4-Port DisplayPort KVM with Dual Console Ports (DP and HDMI), 4K 60Hz 4:4:4, DP1.4 with IR Remote
Brand: Tripp Lite
SKU: ECE7350537
Price: 263.93 EUR
Availability: OutOfStock

View all Tripp Lite KVM Switches - Visit the Tripp Lite Store (B005-DPUA4) - (ECE7350537)

Model: Eaton Tripp

Eaton Tripp Lite series 4-Port DisplayPort KVM with Dual Console Ports (DP and HDMI), 4K 60Hz 4:4:4, DP1.4 with IR Remote - KVM / audio / USB switch - 4 x KVM / audio / USB - 1 local user - desktop

Connects 4 DisplayPort-Enabled Devices to a Single Monitor, Keyboard and Mouse
Supports DisplayPort++ for Connecting an HDMI or DisplayPort Monitor
Switching Between Computers Is Fast and Easy
USB Hub Lets You Share Peripherals between Computers
Transmits Crystal-Clear True 4K Video with HDR and 4:4:4 Color
Designed for Convenient Mounting with Included Brackets

FREE Delivery on orders over €250

0 Available to Ship
Restock 07-Jul-2026 Estimated, Out of Stock Prices are Estimated.

€263.93 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

4-Port DisplayPort/USB KVM Switch - 4K 60 Hz, HDR, HDCP 2.2, IR, DP 1.4, USB Sharing.

Features Summary

Connects 4 DisplayPort-Enabled Devices to a Single Monitor, Keyboard and Mouse
This KVM switch lets you access, control, boot and reboot four computers with DisplayPort connectors and switch between them. In addition to desktop and notebook computers, the switch also connects up to four media centers, video game systems, Blu-ray and DVD players, cable and satellite boxes, DVRs and other DisplayPort-enabled devices. All computers share one monitor, USB keyboard and USB mouse, which saves space on your desk or workspace.
Supports DisplayPort++ for Connecting an HDMI or DisplayPort Monitor
The B005-DPUA4 supports DP++, allowing incoming DisplayPort signals to be converted to HDMI. It features one DisplayPort output and one HDMI output, though only one monitor may be used at a time.
Switching Between Computers Is Fast and Easy

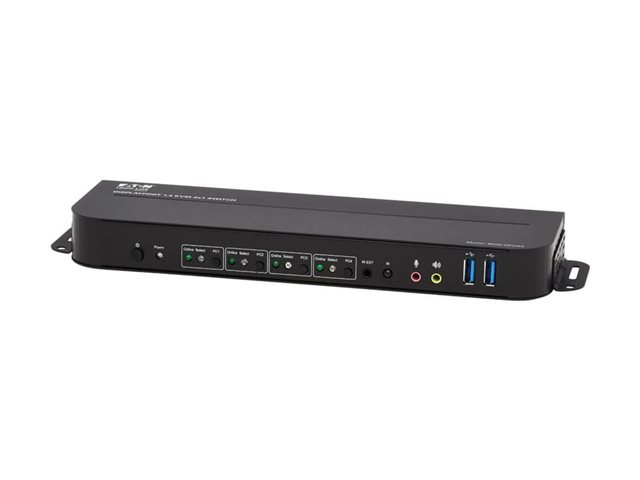

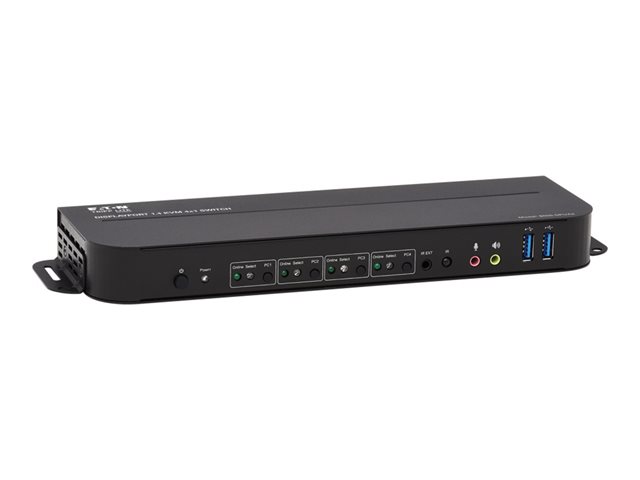

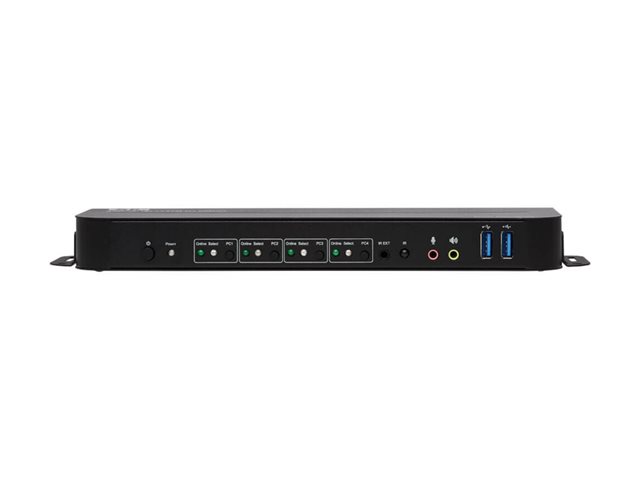

Use the front-panel push buttons, hotkey commands, mouse movement or the included IR remote control for quick and easy toggling between computers. You can also use the Auto Scan feature to scan all connected computers in five-second intervals automatically. LEDs indicate which computer is currently selected. Please note: The included IR remote requires a battery in order to work. Please note: Mouse Traversal is a permanent feature and cannot be disabled
USB Hub Lets You Share Peripherals between Computers
Two USB 3.0 hub ports allow you to share USB peripherals, such as printers, hard drives, scanners, webcams and flash drives, between both connected computers. The ports support USB 3.0 data transfer speeds up to 5 Gbps and are backward compatible with earlier USB generations.
Transmits Crystal-Clear True 4K Video with HDR and 4:4:4 Color
The B005-DPUA4 supports Ultra HD resolutions up to 4096 x 2160 (4K x 2K) at 60 Hz, as well as HDR video, providing a wide range of vibrant colors with richer contrast, brighter whites and deeper blacks that pop on your 4K display. HDCP 2.2 compliance allows you to stream 4K Amazon and Netflix content with no complications. This KVM switch also supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor.

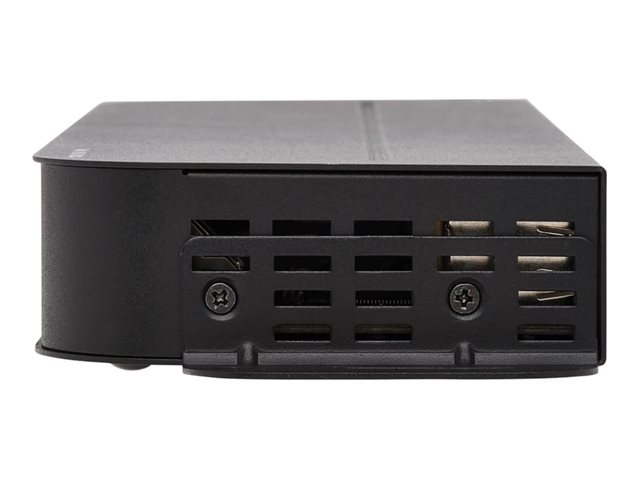

Designed for Convenient Mounting with Included Brackets

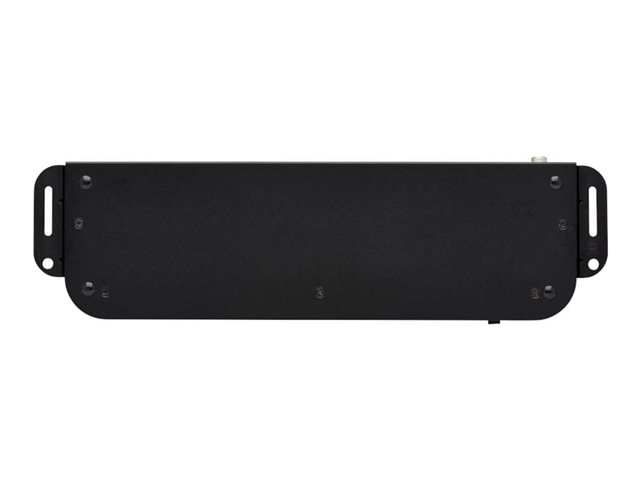

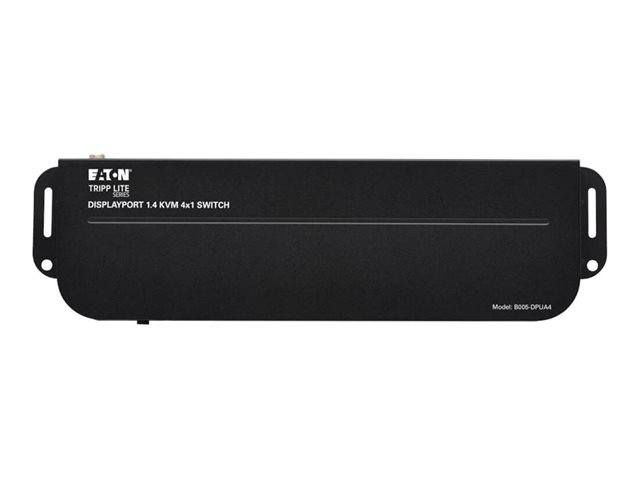

The heavy-duty metal housing comes with mounting brackets for permanent installation on a wall or beneath a desk with user-supplied hardware. The included DC power supply connects to any standard AC power source.

Specification Summary

Product Description

Eaton Tripp Lite series 4-Port DisplayPort KVM with Dual Console Ports (DP and HDMI), 4K 60Hz 4:4:4, DP1.4 with IR Remote - KVM / audio / USB switch - 4 ports

Device Type

KVM / audio / USB switch - 4 ports

Subtype

KVM

Ports

4 x KVM / audio / USB

KVM Users Qty

1 local user

Features

HDR support, DP++ technology, Pushbutton/Hotkey switching, 36-bit Deep Color support, 3D support, 7.1 channel audio support

Power

AC 120/230 V (50/60 Hz)

Dimensions (WxDxH)

24.3 cm x 7.5 cm x 2.6 cm

Weight

503 g

Colour

Black

Localisation

Australia, Europe, United Kingdom, United States

Manufacturer Warranty

3-year warranty

Specifications

EAN / GTIN:

037332255020

General

Device Type

KVM / audio / USB switch - 4 ports

Enclosure Type

Desktop

Subtype

KVM

Ports

4 x KVM / audio / USB

KVM Local Users Qty

1 local user

Keyboard / Mouse Interface

USB

Max Resolution

4096 x 2160 @ 60 Hz

Features

HDR support, DP++ technology, Pushbutton/Hotkey switching, 36-bit Deep Color support, 3D support, 7.1 channel audio support

Status Indicators

Status

Expansion / Connectivity

Interfaces

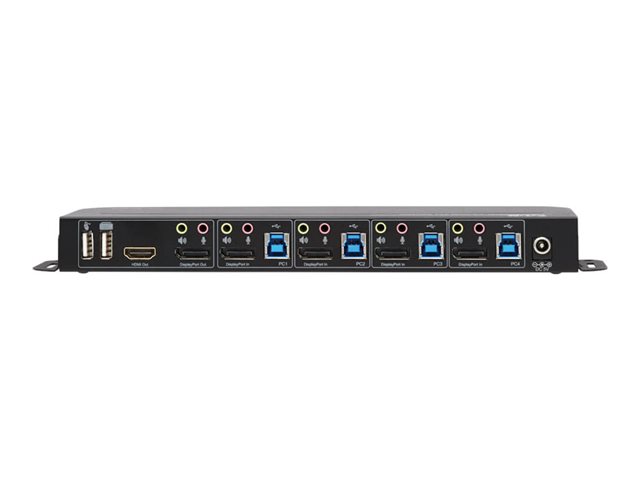

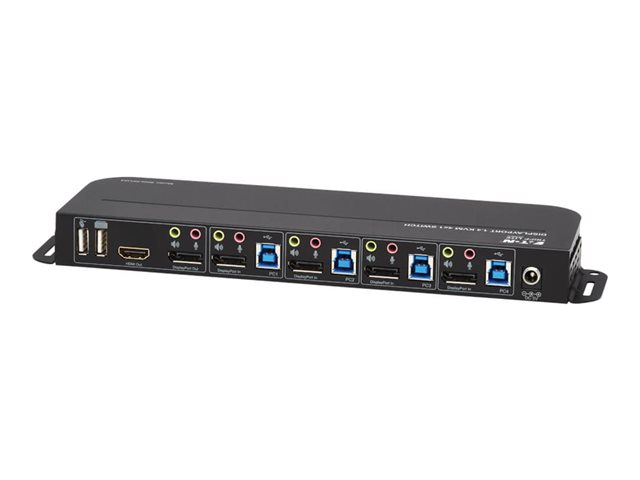

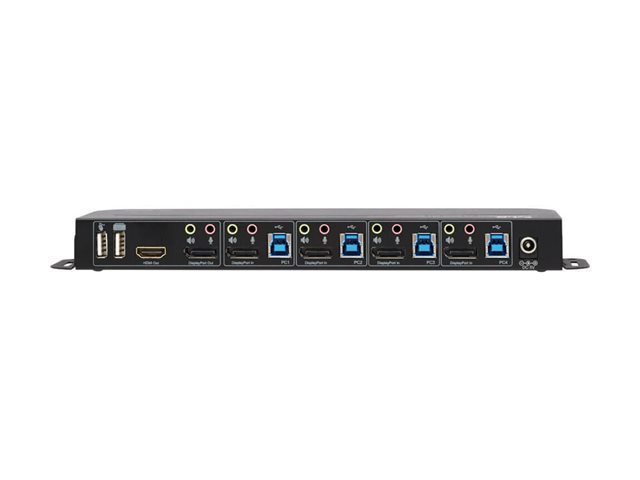

4 x DisplayPort input ¦ 4 x keyboard (USB) / mouse (USB) Type B ¦ 4 x audio input mini-jack ¦ 4 x microphone output mini-jack ¦ 1 x DisplayPort output ¦ 1 x HDMI output ¦ 1 x mouse (USB) Type A ¦ 1 x keyboard (USB) Type A ¦ 1 x microphone input mini-jack ¦ 1 x audio output mini-jack ¦ 1 x IrDA mini-jack ¦ 2 x USB 3.0 Type A ¦ 1 x microphone mini-jack ¦ 1 x audio mini-jack

Power

Power Device

External power adapter

Power Provided

5 V - 3 A

Voltage Required

AC 120/230 V (50/60 Hz)

Power Consumption Operational

11.75 watt

Miscellaneous

Colour

Black

Included Accessories

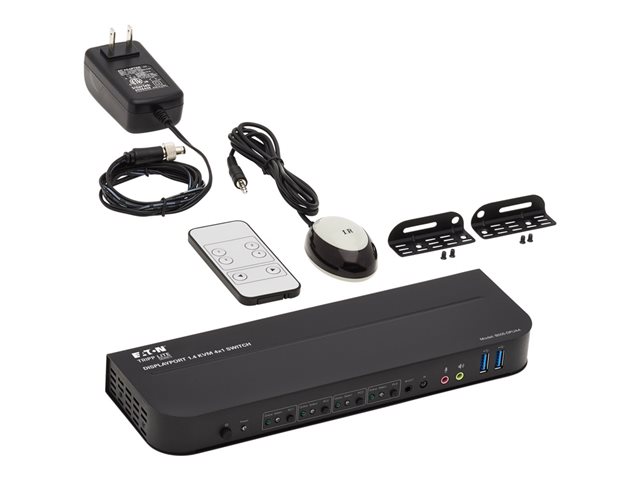

Remote control, IR extender, mounting brackets

Compliant Standards

HDCP 2.2, RoHS, AS/NZS 3112, BS 1363, UL, cUL, DisplayPort 1.4, HDCP 1.4, REACH, FCC

Localisation

Australia, Europe, United Kingdom, United States

Dimensions & Weight

Width

24.3 cm

Depth

7.5 cm

Height

2.6 cm

Weight

503 g

Manufacturer Warranty

Service & Support

Limited warranty - 3 years

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

45 °C

Humidity Range Operating

10 - 85% (non-condensing)

Min Storage Temperature

-10 °C

Max Storage Temperature

80 °C

Humidity Range Storage

5 - 90% (non-condensing)
