NETGEAR ProSafe AXM764 - SFP+ transceiver module -

Images Manuals

Images for illustrative purposes

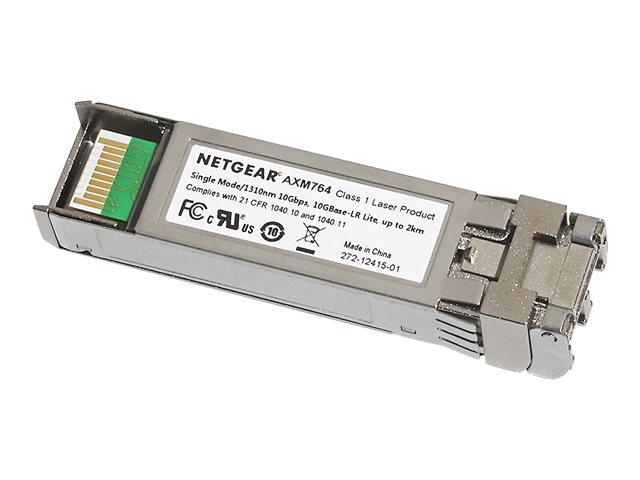

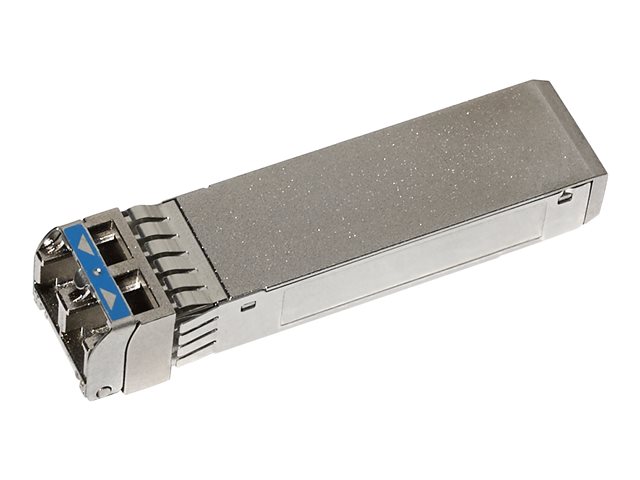

NETGEAR ProSafe AXM764

View all NETGEAR Repeaters | Tranceivers - Visit the NETGEAR Store (AXM764-10000S) - (ECE3425044)

SFP+ Transceiver 10GBASE-LR Lite (Long range lite, single mode)

High compatibility
Robust performance
Durable design
Energy efficient
Secure and compliant

FREE Delivery on orders over €250

0 Available to Ship
Restock 08-Jul-2026 Estimated, Out of Stock Prices are Estimated.

€395.99 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

10GBASE-SR is a port type for MMF (multimode fiber) and uses 850 nm lasers. For longer reach, another standard defined in IEEE 802.3ae is 10GBASE-LR. 10GBASE-LR is a port type for SMF (single mode fiber) and uses 1310 nm lasers. Traditionally SMF 10GBASE-LR SFP+ modules are way more expensive than MMF 10GBASE-LR SFP+ modules. MMF and SMF historical short range / long range paradigm may change in short term: since 2014, for new installations, especially indoor, SMF wiring is about half of MMF wiring. As a consequence, lots of new buildings and datacenters now standardize on SMF. But 10GBASE-LR SFP+ transceivers are too expensive for short-range connections. A new market for short distances over SMF has been created: the industry is standardizing on a new class of SMF 10G transmitters with typical 10GBASE-LR LITE SFP+ transceivers. While not a standard yet, 10GBASE-LR LITE has a specified reach of 2 km over standard 9µm single mode fiber. 10GBASE-LR LITE isn’t a replacement for 10GBASE-LR optics: it is just relevant alternative for “shorter” reach SMF applications.

Features Summary

High compatibility
Designed for seamless integration, the NETGEAR ProSafe AXM764 SFP+ transceiver module is fully compatible with PC systems, ensuring a smooth and reliable connection for high-speed networking.
Robust performance
With a data transfer rate of 10 Gbps and a maximum transfer distance of 2 km, this plug-in module is engineered to support Ethernet 10GBase-LRL networking, making it ideal for extending your network over longer distances.
Durable design
The NETGEAR ProSafe AXM764 is built to last, featuring a mean time between failures (MTBF) of 2,310,000 hours. Its compliance with multiple safety and environmental standards, including RoHS and Laser Class 1, ensures a safe and reliable operation.
Energy efficient
Optimized for low power consumption, the module operates on just 1.1 watts, making it an energy-efficient choice for expanding your network infrastructure.
Secure and compliant
Meeting stringent standards such as IEEE 802.3ae for 10 Gigabit Ethernet and various compliance standards including FDA and IEC 60825, this module offers a secure and compliant solution for your networking needs.

Specification Summary

Product Description

NETGEAR ProSafe AXM764 - SFP+ transceiver module - 10GbE

Device Type

SFP+ transceiver module - LC single-mode

Form Factor

Plug-in module

Cabling Type

10GBase-LRL

Data Transfer Rate

10 Gbps

Optical Wave Length

1310 nm

Data Link Protocol

10GbE

Max Transfer Distance

2 km

Dimensions (WxDxH)

1.455 cm x 5.65 cm x 1.185 cm

Weight

20 g

Manufacturer Warranty

5-year warranty

Designed For

NETGEAR M4300-28G-PoE+

Specifications

EAN / GTIN:

606449108767

General

Device Type

SFP+ transceiver module

Form Factor

Plug-in module

Networking

Connectivity Technology

Wired

Cabling Type

10GBase-LRL

Data Link Protocol

10GbE

Data Transfer Rate

10 Gbps

Optical Wave Length

1310 nm

Max Transfer Distance

2 km

Compliant Standards

IEEE 802.3ae

Expansion / Connectivity

Interfaces

1 x Ethernet 10GBase-LRL - LC single-mode x 2

Miscellaneous

MTBF

2,310,000 hours

Compliant Standards

RoHS, Laser Class 1, FDA, CDRH, IEC 60825, 21 CFR 1040.10, 21 CFR 1040.11

Power

Power Consumption Operational

1.1 Watt

Dimensions & Weight

Width

1.455 cm

Depth

5.65 cm

Height

1.185 cm

Weight

20 g

Manufacturer Warranty

Service & Support

Limited warranty - 5 years

Environmental Parameters

Min Operating Temperature

-5 °C

Max Operating Temperature

85 °C

Compatibility Information

Designed For

NETGEAR M4300-28G-PoE+
