Range/Series Overview
IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

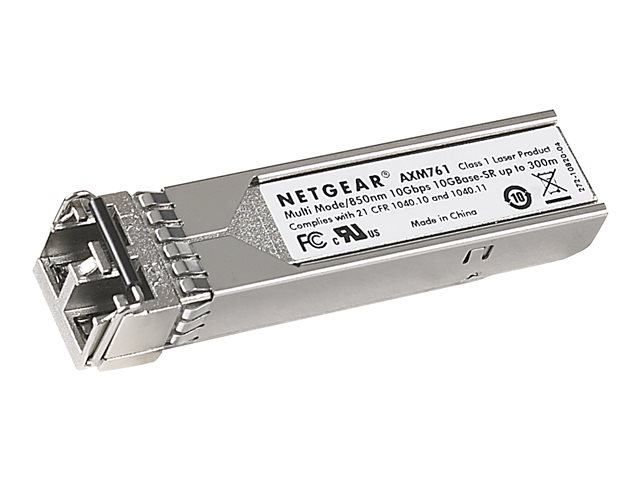

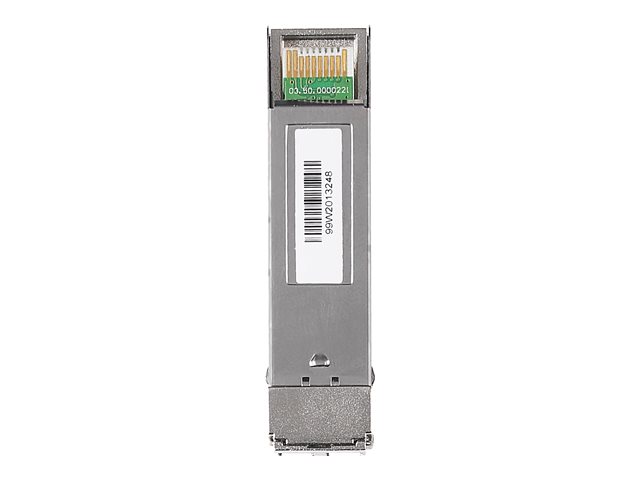

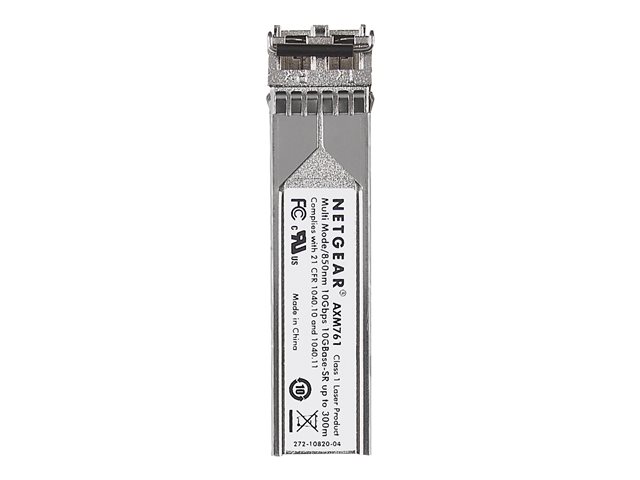

This GBIC is built to insert into any one of the two built-in 10 GE SFP+ interfaces of GSM7328Sv2 and GSM7352Sv2, and into the 10 GE SFP+ interface of AX743 adapter module for GSM73xxS/GSM73xxSv2. Once inserted (hot-swappable), the AXM761 10GBASE-SR SFP+ (LC connector) drives 10 Gigabit Ethernet up to 300m distances with 50/125µm OM3 multimode fiber cables, or up to 33 m distances with 62.5/125µm OM1 multimode fiber cables.
This is a pack of 10 AXM761 SFP+ modules.
Specification Summary
Product Description
NETGEAR ProSafe AXM761 - SFP+ transceiver module - 10GbE
Device Type
SFP+ transceiver module - LC multi-mode
Packaged Quantity
10 (specifications are for single item)
Form Factor
Plug-in module
Data Transfer Rate
10 Gbps
Optical Wave Length
850 nm
Max Transfer Distance
300 m
Dimensions (WxDxH)
1.37 cm x 5.57 cm x 1.19 cm
Manufacturer Warranty
5-year warranty
