Avocor AVE-5550 E-Series

View all AVOCOR Digital Signage | Large Displays - Visit the AVOCOR Store (AVE-5550) - (ECE10605486)

AVE-5550 - 55" Diagonal Class E-Series LED-backlit LCD display - interactive - with touchscreen (multi touch) - Android - 4K UHD (2160p) 3840 x 2160 - direct-lit LED

High-resolution display
Advanced touch technology
Extensive connectivity options
Integrated audio system
Robust commercial design

FREE Delivery on orders over €250

0 Available to Ship
Restock 22-Jun-2026 Estimated, Out of Stock Prices are Estimated.

RRP ~~€2704.77~~

€1359.75 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

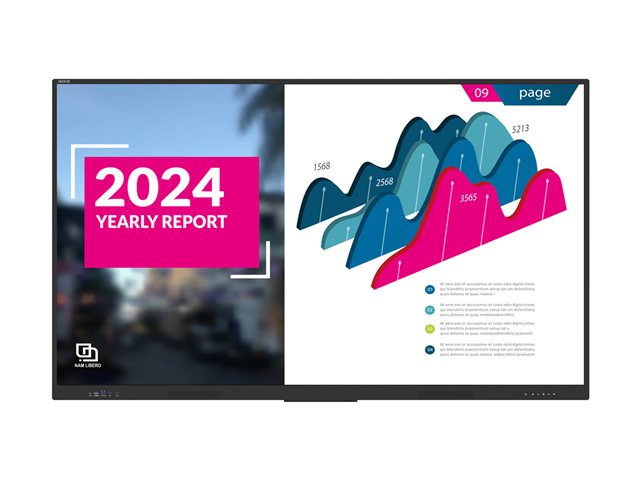

The Avocor AVE-5550 is designed for interactive communication, featuring a 55-inch LED-backlit LCD flat panel display with a 4K UHD resolution of 3840 x 2160. The display offers a vibrant image contrast ratio of 1200:1 and supports 10-bit color depth, ensuring rich visuals for presentations and collaborations. With Avocor Intelligent Touch technology, this display supports multiple simultaneous touchpoints, allowing for a more engaging and dynamic user experience. Designed with commercial use in mind, it includes features like auto-source-detection and source preview for seamless transitions during presentations. Connectivity options are abundant with four HDMI ports, USB-C ports providing power delivery, and a variety of multimedia outputs, including audio line-out and DisplayPort. The OPS slot enhances its functionality, letting users expand with additional media players. The built-in speaker system, with an output power of 30 W, ensures clear audio to accompany presentations. With an operational temperature range of 0 °C to 40 °C and environmental durability, this display is built to perform in various settings while maintaining performance.

Specification Summary

Product Description

Avocor AVE-5550 E-Series - 55" LED-backlit LCD display - 4K - for interactive communication

Product Type

LED-backlit LCD flat panel display with touchscreen (multi touch)

Diagonal Class

55"

Commercial Use

Yes - interactive

Platform

Android

Resolution

3840 x 2160

Display Format

4K UHD (2160p)

Frame Rate & Enhancement Technology

60 Hz Frequency

Video Interface

HDMI

HDMI Ports Qty

3 ports

Connectivity

LAN

PC Interface

DisplayPort

LCD Backlight Technology

Direct-lit LED

Image Aspect Ratio

16:9

Commercial Features

OPS Slot

Speaker System

2 speakers

Storage Capacity

32 GB

USB

4 ports

Included Accessories

Remote control, 2 fine-tip passive touch styluses, power cord

Voltage

AC 100-240 V (50/60 Hz)

Power Consumption Stand by

0.5 Watt

Dimensions (WxDxH)

128.95 cm x 9.26 cm x 79.16 cm

Weight

29 kg

Manufacturer Warranty

3-year warranty

Specifications

EAN / GTIN:

858323007066

General

Product Type

LED-backlit LCD flat panel display

Power Consumption (Max)

210 Wh

Diagonal Class

55"

Commercial Use

Yes - interactive

Combined With

Touchscreen (multi touch)

Series

E-Series

Platform

Android

Operating System

Android OS 13

TV Tuner Presence

Video Interface

HDMI

HDMI Ports Qty

3 ports

PC Interface

DisplayPort

Modes

Landscape mode

Protection

Bonded glass

Width

128.95 cm

Depth

9.26 cm

Height

79.16 cm

Weight

29 kg

Display

Colour Support

1070000000 colours

Resolution

3840 x 2160

Display Format

4K UHD (2160p)

Image Aspect Ratio

16:9

Frame Rate & Enhancement Technology

60 Hz Frequency

LCD Backlight Technology

Direct-lit LED

Coating

Zero parallax, anti-glare, anti-fingerprint

Image Contrast Ratio

1200:1

Brightness

400 cd/m²

Viewing Angle

178 degrees

Viewing Angle (Vertical)

178 degrees

Touchpoints Qty

Response Time

8 ms

Commercial Features

OPS Slot

Features

Avocor UiQ, 10-bit support, Avocor Intelligent Touch, fine tip stylus support, OPS Slot, Auto-source-detection, Source preview, carrying handles

Stands & Mounts

Flat Panel Mount Interface

400 x 400 mm

VESA Compatibility

Yes

Media Player

USB Port

Yes

USB Ports Qty

Configuration

Amlogic A311D2 - 4 GB - 32 GB - Mali G52 MP8

Remote Control

Type

Remote control

Battery Included

Yes

Audio System

Speaker System

2 speakers

Output Power / Total

30 Watt

Speakers

2 x main channel speaker - 15 Watt

Network & Internet Multimedia

Connectivity

LAN

Connections

Connector Type

Touch - front ¦ 3 x touch - side ¦ USB-C with 65W Power Delivery - side ¦ USB-C with 15W Power Delivery - side ¦ HDMI input - front ¦ 2 x HDMI input - side ¦ HDMI output - side ¦ DisplayPort - side ¦ 2 x USB 3.0 - side ¦ 2 x USB 3.0 - front ¦ USB (service only) - side ¦ RS-232 - side ¦ Audio line-out - side ¦ SPDIF output - side ¦ LAN input ¦ LAN output

Miscellaneous

Included Accessories

2 fine-tip passive touch styluses, power cord

Cables Included

SuperSpeed USB cable - 3 m ¦ USB-C cable - 1.8 m ¦ HDMI cable - 3 m

Power

Power Device

Power supply

Input Voltage

AC 100-240 V (50/60 Hz)

Power Consumption Stand by

0.5 Watt
