Range/Series Overview

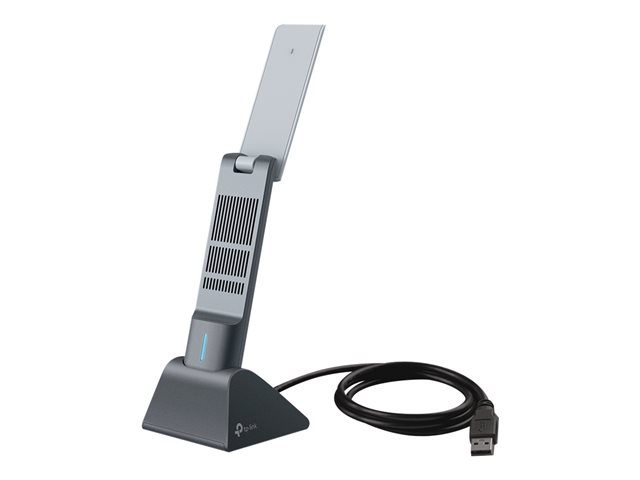

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.The TP-Link TX20UH V1 delivers wireless connectivity for your devices with speeds up to 1800 Mbps. This external network adapter supports multiple data link protocols including IEEE 802.11b, 802.11a, 802.11g, 802.11n, 802.11ac, and 802.11ax, ensuring compatibility with a range of devices. Experience reliable performance across both 2.4 GHz and 5 GHz Wi-Fi bands, enhancing your browsing and streaming experience.
Equipped with MU-MIMO technology and OFDMA, the TX20UH V1 allows multiple devices to connect with efficiency, minimizing latency and maximizing throughput. The adapter’s SuperSpeed USB 3.0 interface simplifies connections while maintaining high data transfer rates. Additionally, compliant with various standards such as FCC and RoHS, this network adapter offers a secure connection with multiple encryption protocols including WPA3, WPA2, and WEP, making it suitable for modern networking needs.
Features Summary
- Upgrades your PC with Wi-Fi 6
Forget about buying a PC. TX20UH delivers powerful dual band Wi-Fi 6 straight to your device for exceptional connectivity and speed up to 1800 Mbps. - Greater coverage and stability
The multi-angle adjustable high-gain antennas combine with Beamforming to concentrate Wi-Fi signals towards your router for better reception and reliable connections from far away. - USB 3.0 for superior transfer speeds
Experience blazing-fast data transfers of up to 4.8 Gbps with USB 3.0 - the USB connectivity standard. USB 3.0 transfers data up to 10x faster than USB 2.0 and is also backwards compatible with USB 2.0. Combined with 802.11ac Wi-Fi, USB 3.0 makes Archer TX20UH ideal for HD streaming, online gaming and large file downloads. - Easy use with a flexible design
A1.2-meter USB 3.0 cable makes it easy to find a spot for the Archer TX20UH in your workspace, and the adapter can be effortlessly attached removed from your computer as needed.
Specification Summary
Product Description
TP-Link TX20UH V1 - network adapter - USB 3.0
Device Type
Network adapter
Interface (Bus) Type
SuperSpeed USB 3.0
Dimensions (WxDxH)
3.5 cm x 11.17 cm x 1.48 cm
Data Link Protocol
Wi-Fi 5, 802.11ax
Data Transfer Rate
1800 Mbps
Performance
Maximum throughput (2.4 GHz): 574 Mbps ¦ Maximum throughput (5 GHz): 1201 Mbps
Frequency Band
2.4 GHz, 5 GHz
Compliant Standards
IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, Wi-Fi CERTIFIED 6
System Requirements
Microsoft Windows 10 / 11
