APC Cable Management

Range/Series Overview

Features Summary

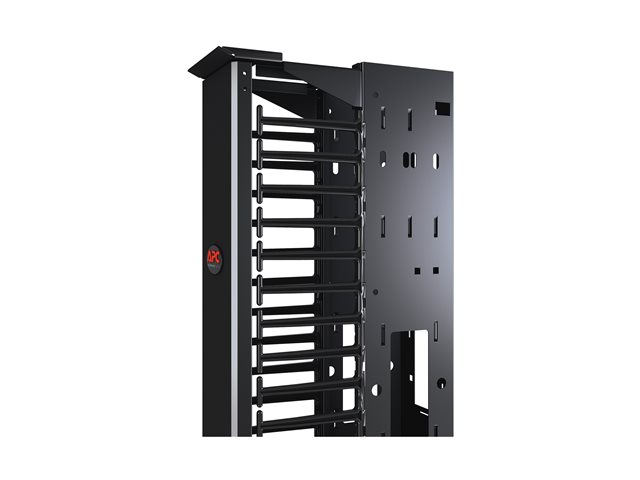

• Smooth plastic fingers provide proper bend radius.
  Deployment flexibility allows sensor pods to be up to 1000 meters from a compatible NetBotz appliance.
• Cable managers feature high capacity slim cable fingers to provide maximum capacity at every rack space unit and a rigid design to decrease deflection when cables are routed in/out of the cable manager channel.
  Pass-through holes and mounting slots support horizontal cable troughs for front-to-back cable pass-through using cable management accessory AR8016ABLK.
• Toollessly mount vertical Rack PDUs
  Backplates feature several mounting location positions allowing Rack PDUs to be toollessly installed with the vertical cable manager channel or on the backside.
• Slam-to-latch full length door
  Door installs quickly without tools and is provided with two easy to use latches that allow the door to open to the left or right.
• Mid-span bracket for 19" rackmount accessories and cable management
  Double-sided vertical cable managers include three midspan brackets pre-installed that provide structural rigidity, 19" rackmount accessory mounting locations, and cable management tie-off using hook-and-loop cable managers (AR8621) or fiber spools (AR8444). Remove and re-arrange midspan brackets to divide the interior space of the cable manager and provide a deeper/shallower channel in 40-60, 50-50, or 60-40 splits.
• Vertical cable managers ship fully assembled
  Vertical cable managers ship fully assembled reducing the amount of time required to install equipment.
• Grounding connection
  Grounding connection point (hardware not provided) on left and right side of cable channel provides location for grounding the vertical cable manager.
• Similar look-and-feel to NetShelterT enclosures
  Contoured and powdercoat design of the vertical cable manager door and matching enclosure placard provide a clean and consistent look with NetShelter enclosures.
• Horizontal cable routing front-to-back
  Pass-through holes and mounting slots support horizontal cable troughs for front-to-back cable pass-through using cable management accessory AR8016ABLK.

Specification Summary
