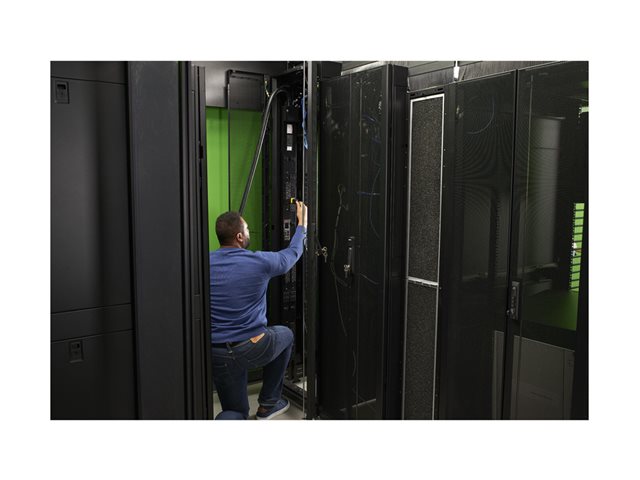

Images for illustrative purposes

APC Rack PDU 9000 Switched APDU9981EU3

View all APC Power Strips | Adapters - Visit the APC Store (APDU9981EU3) - (MMECA81521)

Rack PDU 9000 Switched APDU9981EU3 - power distribution unit - 11 kW - 11000 VA

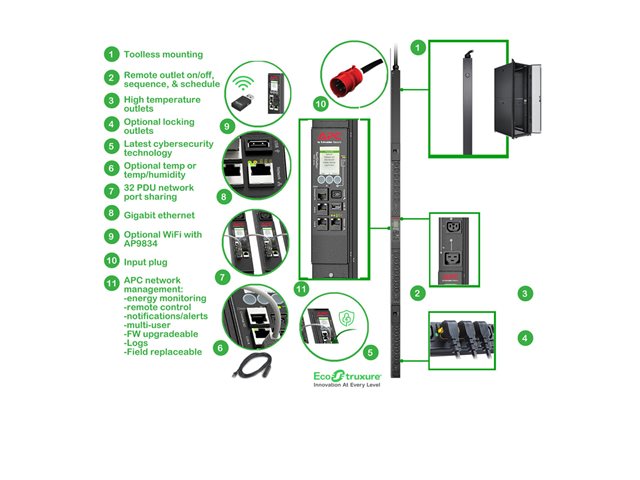

Efficient power distribution
Advanced environmental adaptability

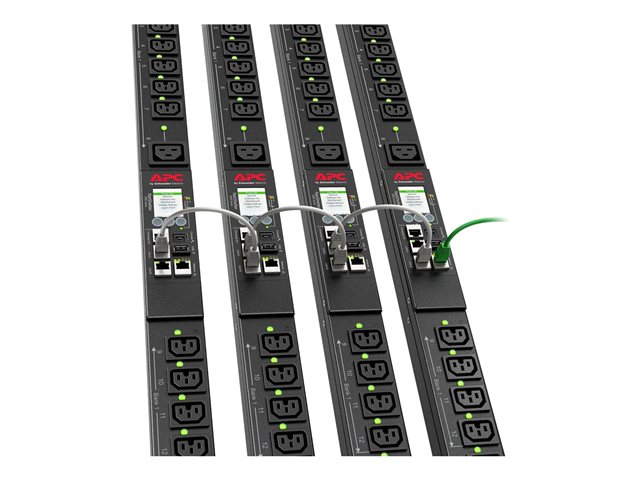

Comprehensive network management

FREE Delivery on orders over €250

2 Available to Ship
Order within 15Hrs 40Mins for: FREE Delivery (8 Jun or 9 Jun)

€1836.99 Incl Vat

Price at 30 Day Low

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

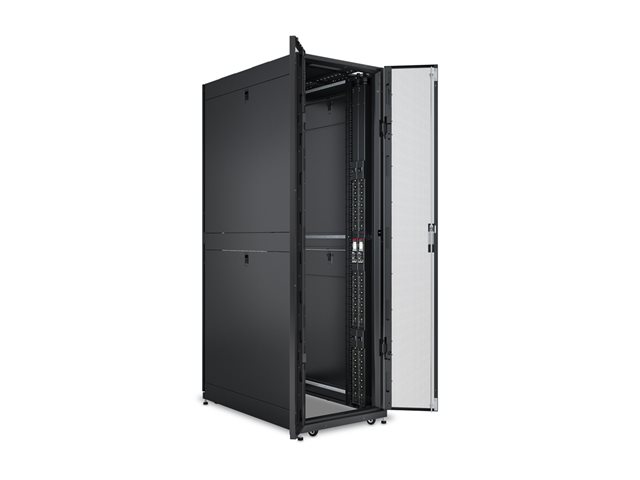

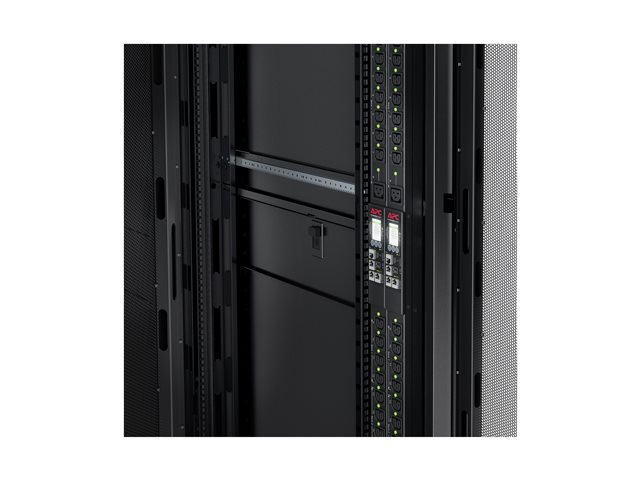

It is a switched rack PDU with a maximum current capacity of 16A and an input voltage of 400V. It includes 21 IEC 60320 C13 outlets and 3 IEC 60320 C19 outlets, connected via an IEC 60309 16A 3P+N+PE plug. The PDU is designed for ZeroU mounting.

Specification Summary

Product Description

APC Rack PDU 9000 Switched APDU9981EU3 - power distribution unit - 11 kW - 11000 VA

Device Type

Power distribution unit - rack-mountable

Cord Length

1.82 m

Rack Size

Weight

7 kg

Input Wiring

3-phase

Input Voltage

AC 230 V

Output Voltage

AC 230 V

Power Capacity

11 kW / 11000 VA

Input Connectors

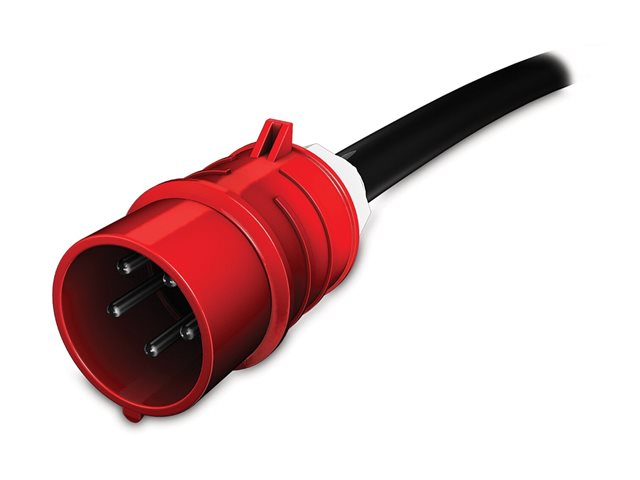

1 x power IEC 60309 16A

Output connectors

21 x power IEC 60320 C13 ¦ 3 x power IEC 60320 C19

Networking

Ethernet 10/100/1000

Colour

Black

Dimensions (WxDxH)

5.5 cm x 4.6 cm x 179.2 cm

Manufacturer Warranty

3-year warranty

Designed For

P/N: SMT2200RM2UC, SMT3000RM2UC, SMX1000C, SMX1500RM2UC, SMX1500RM2UCNC, SMX2000LVNCUS, SMX2000LVUS, SMX2200RMLVUS, SMX2KR2UX145, SMX3000HVTUS, SMX3000LVNCUS, SMX3000LVUS, SMX3000RMLVUS, SMX3KR2UNCX145, SMX3KRMLVNCUS, SMX750C, SMX750CNC, SMX750CUS, SRT1500RMXLA-NC, SRT5KRMXLTUS, SYAF8KRMTX424

Specifications

EAN / GTIN:

0731304404262

General

Device Type

Power distribution unit - rack-mountable

Height (Rack Units)

Cord Length

1.82 m

Colour

Black

Power Device

Input Voltage

AC 230 V

Frequency Provided

50/60 Hz

Input Wiring

3-phase

Frequency Required

50/60 Hz

Input Connectors

1 x power IEC 60309 16A

Power Output Connectors Details

21 x power IEC 60320 C13 ¦ 3 x power IEC 60320 C19

Output Voltage

AC 230 V 50/60 Hz

Max Electric Current

16 A

Power Capacity

11 kW / 11000 VA

Networking

Remote Management Interface

Ethernet 10/100/1000

Expansion / Connectivity

Interfaces

1 x management (Gigabit Ethernet) - RJ-45

Miscellaneous

Cables Included

Power cable 1.83 m

Features

Switched

Compliant Standards

cUL, FCC Part 15 A, UL, VDE, EN 55022 Class A, EN 61000-3-2, EN 61000-3-3, EN55024, ICES-003

Manufacturer Warranty

Service & Support

Limited warranty - replace or repair - 3 years

Environmental Parameters

Min Operating Temperature

-5 °C

Max Operating Temperature

45 °C

Humidity Range Operating

5 - 95%

Dimensions & Weight

Width

5.5 cm

Depth

4.6 cm

Height

179.2 cm

Weight

7 kg

Dimensions & Weight (Shipping)

Shipping Width

16.5 cm

Shipping Depth

11.4 cm

Shipping Height

200.2 cm

Shipping Weight

8.95 kg

Compatibility Information

Designed For

P/N: SMC1000, SMC1500, SMT1500RM2U, SMT2200R2X658, SMT2200RM2UC, SMT3000RM2UC, SMT3000RMT2U, SMX1000C, SMX1500RM2UC, SMX1500RM2UCNC, SMX2000LV, SMX2000LVNC, SMX2000LVNCUS, SMX2000LVUS, SMX2000RMLV2U, SMX2200HV, SMX2200HVNC, SMX2200R2HVNC, SMX2200RMHV2U, SMX2200RMLV2U, SMX2200RMLVUS, SMX2KR2UX145, SMX3000HV, SMX3000HVNC, SMX3000HVT, SMX3000HVTUS, SMX3000LV, SMX3000LVNC, SMX3000LVNCUS, SMX3000LVUS, SMX3000RMHV2U, SMX3000RMHV2UNC, SMX3000RMLV2U, SMX3000RMLV2UNC, SMX3000RMLVUS, SMX3KR2UNCX145, SMX3KRMLVNCUS, SMX750C, SMX750CNC, SMX750CUS, SRT1000RMXLA, SRT1000RMXLA-NC, SRT1500RMXLA, SRT1500RMXLA-NC, SRT5KRMXLT, SRT5KRMXLT-IEC, SRT5KRMXLTUS, SRT5KRMXLW-HW, SRT6KRMXLT, SRT6KRMXLT-IEC, SRT8KRMXLT, SRT8KRMXLT-IEC, SUA5000R5TXFMR, SUA5000RMT5U, SURT15KRMXLT, SURT15KRMXLT-TF5, SURT20KRMXLT, SURT20KRMXLT-TF5, SURT5000XLIX438, SURTD5000RMXLP3U, SURTD6000RMXLP3U, SYA12K16RMP, SYA16K16RMP, SYA4K8RMP, SYA8K16RMP, SYA8K8RMI, SYA8K8RMP, SYAF16KBXRMT, SYAF16KRMT, SYAF8KRMT, SYAF8KRMTX424, SYH2K6RMT, SYH2K6RMT-P1, SYH2K6RMT-TF3, SYH4K6RMT, SYH4K6RMT-P1, SYH4K6RMT-TF3, SYH6K6RMT, SYH6K6RMT-P1, SYH6K6RMT-TF3
