APC NetShelter Rack PDU Advanced

View all APC Power Strips | Adapters - Visit the APC Store (APDU11350ME) - (WCEAPDU11350ME)

NetShelter Rack PDU Advanced - Gen 2 - power distribution unit - metered, 22.1kW, 400V, 32A, or, 415V, 30A, 530P6 - 17.3 kW - 17300 VA - TAA Compliant

Efficient power distribution
Space-saving design
Remote management capabilities
Real-time monitoring
Flexible connectivity options

FREE Delivery on orders over €250

18 Available to Ship
Order within 16Hrs 1Mins for: FREE Delivery (8 Jun or 9 Jun)

RRP ~~€2706.00~~

€2149.74 Incl Vat

Price at 30 Day Low

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

APC NetShelter Rack PDU Advanced (11K Series) provides reliable power distribution to IT equipment within server and/or networking racks. PDU level power metering provides power visibility and notification of potential overload. 4-in-1 combination outlets which can be used as either C13, C19, C15, or C21 outlets provide unparalleled deployment flexibility. Maximum outlet density with 48 outlets in a 2.2 in. (5.6 cm) wide form factor allows for more equipment in the rack. Outlets on the PDUs are color coded and labeled by breaker. Live Swap the NMC3 to minimize downtime in the unlikely event of an NMC power event. The rack PDU integrates with EcoStruxure IT through an NMC3 and can be accessed and configured via web, SNMP, and command line interface (CLI). A 10-foot (3-meter) input cord makes it easier for the PDU to reach the power supply. Rated to operate up to 60 C (140 F) at full load ensures reliability and availability even in today's high-density deployments. One gigabit Ethernet/network port (10/100/1000) enhances and standardizes network connectivity. Two link ports are available to cascade to up to 32 PDUs, with a network port sharing (NPS) feature to enable power sharing between Rack PDUs in the cascading group. Track or bill power usage confidently with 1% metering accuracy. Two environmental sensor ports allow for optional sensors (sold separately) to be connected. For data center deployments across multiple regions, these PDUs have the following certifications: UL, CE, CSA, UKCA, Nemiko, PSE, KC, China RoHS, RCM, and CMIM. This model’s input power cord is IEC-309 32 A 3P+N+PE and features 24 count C13/C15/C19/C21 combo outlets and 24 count C13/C15 outlets.

Features Summary

Efficient power distribution
Supports both AC 400 V and 415 V input voltage with a maximum output of 17.3 kW, providing reliable power across various setups.
Space-saving design
The vertical orientation allows for effective use of space in server racks, making it ideal for dense IT environments.
Remote management capabilities
Equipped with USB and Gigabit Ethernet interfaces, enabling efficient remote monitoring and management for users.
Real-time monitoring

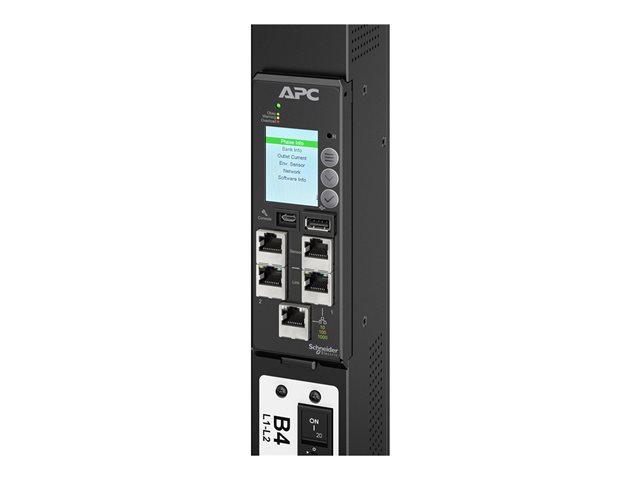

Features an LCD display that provides critical power metrics, allowing for immediate assessment of the power distribution status.
Flexible connectivity options
Offers a variety of power output connectors including 24 x power IEC 60320 C13/C15, allowing compatibility with a range of devices.

Specification Summary

Product Description

APC NetShelter Rack PDU Advanced - Gen 2 - power distribution unit - metered, 22.1kW, 400V, 32A, or, 415V, 30A, 530P6 - 17.3 kW - 17300 VA - TAA Compliant

Device Type

Power distribution unit - rack-mountable

Cord Length

3 m

Rack Size

Weight

8.4 kg

Input Wiring

3-phase

Input Voltage

AC 400/415 V

Output Voltage

AC 240 V

Power Capacity

17.3 kW / 17300 VA

Input Connectors

1 x power IEC 60309 3P+N+PE

Output connectors

24 x power IEC 60320 C13/C15/C19/C21 - 240 V ¦ 24 x power IEC 60320 C13/C15 - 240 V

Networking

Ethernet 10/100/1000, USB

Colour

Black

TAA Compliant

Yes

Dimensions (WxDxH)

5.6 cm x 7.5 cm x 178 cm

Manufacturer Warranty

3-year warranty

Specifications

EAN / GTIN:

0731304752714

General

Device Type

Power distribution unit - rack-mountable

Height (Rack Units)

Cord Length

3 m

Colour

Black

Power Device

Input Voltage

AC 400/415 V

Frequency Provided

50/60 Hz

Input Wiring

3-phase

Frequency Required

50/60 Hz

Input Connectors

1 x power IEC 60309 3P+N+PE

Power Output Connectors Details

24 x power IEC 60320 C13/C15/C19/C21 - 240 V ¦ 24 x power IEC 60320 C13/C15 - 240 V

Output Voltage

AC 240 V 50/60 Hz

Max Electric Current

24 A

Power Capacity

17.3 kW / 17300 VA

Networking

Remote Management Interface

Ethernet 10/100/1000, USB

Expansion / Connectivity

Interfaces

1 x management (Gigabit Ethernet) - RJ-45 ¦ 2 x PDU link - RJ-45 ¦ 2 x sensor ¦ 1 x USB - 4 pin USB Type A ¦ 1 x console

Miscellaneous

Cables Included

AC input cable 3 m

Features

Vertical orientation, reset button, switched, LCD display, remote ON/OFF function, cascadable

Compliant Standards

UL, CSA, UKCA, PSE Mark, KC, China RoHS, RCM, CMIM, EU RoHS, IP44, UL 62368-1, CSA C22.2 62368-1, EN 62368-1, FCC Part 15 Subpart B

TAA Compliant

Yes

Manufacturer Warranty

Service & Support

Limited warranty - replace or repair - 3 years

Environmental Parameters

Min Operating Temperature

-5 °C

Max Operating Temperature

60 °C

Humidity Range Operating

5 - 95%

Dimensions & Weight

Width

5.6 cm

Depth

7.5 cm

Height

178 cm

Weight

8.4 kg

Dimensions & Weight (Shipping)

Shipping Width

13.2 cm

Shipping Depth

26.2 cm

Shipping Height

198 cm

Shipping Weight

26.2 kg
