APC NetShelter Rack PDU Advanced - Gen 2 - power d

Images Manuals

Images for illustrative purposes

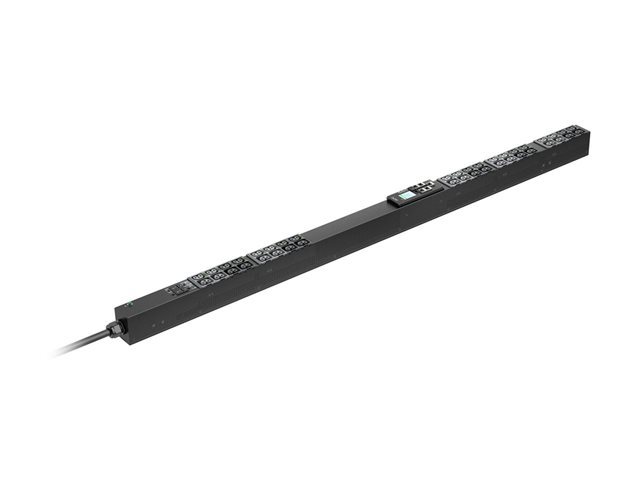

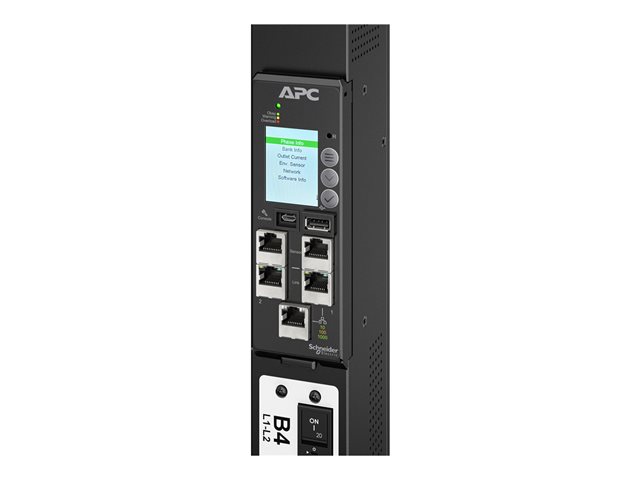

APC NetShelter Rack PDU Advanced

View all APC Power Strips | Adapters - Visit the APC Store (APDU11150SM) - (ECE11812498)

NetShelter Rack PDU Advanced - Gen 2 - power distribution unit (rack-mountable) - switched, metered, 230V, 32A, 332P6 - AC 230 V - 7.4 kW - 7400 VA - 1-phase - Ethernet 10/100/1000, USB - input: IEC 60309 2P+PE - output connectors: 40 (20 x IEC 60320

Reliable power distribution
Advanced management options
User-friendly interface
Versatile connector options
Environmentally compliant

FREE Delivery on orders over €250

0 Available to Ship
Restock 25-Jun-2026 Estimated, Out of Stock Prices are Estimated.

RRP ~~€3444.00~~

€2749.75 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

APC NetShelter Rack PDU Advanced (11K Series) provides reliable power distribution to IT equipment within server and/or networking racks. Switched outlets allow for turning outlets on or off remotely. Outlet and PDU level power metering provide power visibility and notification of potential overload. 4-in-1 combination outlets which can be used as either C13, C19, C15, or C21 outlets provide unparalleled deployment flexibility. Maximum outlet density with 40 outlets in a 2.2 in. (5.6 cm) wide form factor allows for more equipment in the rack. Outlets on the PDUs are color coded and labeled by breaker. Live Swap the NMC3 to minimize downtime in the unlikely event of an NMC power event. The rack PDU integrates with EcoStruxure IT through an NMC3 and can be accessed and configured via web, SNMP, and command line interface (CLI). A 10-foot (3-meter) input cord makes it easier for the PDU to reach the power supply. Rated to operate up to 60 C (140 F) at full load ensures reliability and availability even in today's high-density deployments. One gigabit Ethernet/network port (10/100/1000) enhances and standardizes network connectivity. Two link ports are available to cascade to up to 32 PDUs, with a network port sharing (NPS) feature to enable power sharing between Rack PDUs in the cascading group. Track or bill power usage confidently with 1% metering accuracy. Two environmental sensor ports allow for optional sensors (sold separately) to be connected. For data center deployments across multiple regions, these PDUs have the following certifications: UL, CE, CSA, UKCA, Nemiko, PSE, KC, China RoHS, RCM, and CMIM. This model’s input power cord is IEC-309 32 A and features 20 count C13/C15/C19/C21 combo outlets and 20 count C13/C15 outlets.

Specification Summary

Product Description

APC NetShelter Rack PDU Advanced - Gen 2 - power distribution unit - switched, metered, 230V, 32A, 332P6 - 7.4 kW - 7400 VA - TAA Compliant

Device Type

Power distribution unit - rack-mountable

Cord Length

3 m

Rack Size

Weight

7.5 kg

Input Wiring

1-phase

Input Voltage

AC 230 V

Output Voltage

AC 230 V

Power Capacity

7.4 kW / 7400 VA

Input Connectors

1 x power IEC 60309 2P+PE

Output connectors

20 x power IEC 60320 C13/C15 - 230 V ¦ 20 x power IEC 60320 C13/C15/C19/C21 - 230 V

Networking

Ethernet 10/100/1000, USB

Colour

Black

TAA Compliant

Yes

Dimensions (WxDxH)

5.6 cm x 7.5 cm x 149 cm

Manufacturer Warranty

3-year warranty

Specifications

EAN / GTIN:

731304752639

General

Device Type

Power distribution unit - rack-mountable

Height (Rack Units)

Cord Length

3 m

Colour

Black

Power Device

Input Voltage

AC 230 V

Frequency Provided

50/60 Hz

Input Wiring

1-phase

Frequency Required

50/60 Hz

Input Connectors

1 x power IEC 60309 2P+PE

Power Output Connectors Details

20 x power IEC 60320 C13/C15 - 230 V ¦ 20 x power IEC 60320 C13/C15/C19/C21 - 230 V

Output Voltage

AC 230 V 50/60 Hz

Max Electric Current

32 A

Power Capacity

7.4 kW / 7400 VA

Networking

Remote Management Interface

Ethernet 10/100/1000, USB

Expansion / Connectivity

Interfaces

1 x management (Gigabit Ethernet) - RJ-45 ¦ 2 x PDU link - RJ-45 ¦ 2 x sensor ¦ 1 x USB - 4 pin USB Type A ¦ 1 x console

Miscellaneous

Cables Included

AC input cable 3 m

Features

Vertical orientation, reset button, switched, LCD display, remote ON/OFF function, cascadable

Compliant Standards

UL, CSA, UKCA, PSE Mark, KC, China RoHS, RCM, CMIM, EU RoHS, IP44

TAA Compliant

Yes

Manufacturer Warranty

Service & Support

Limited warranty - replace or repair - 3 years

Environmental Parameters

Min Operating Temperature

-5 °C

Max Operating Temperature

60 °C

Humidity Range Operating

5 - 95%

Dimensions & Weight

Width

5.6 cm

Depth

7.5 cm

Height

149 cm

Weight

7.5 kg

Dimensions & Weight (Shipping)

Shipping Width

11.6 cm

Shipping Depth

20.8 cm

Shipping Height

172 cm

Shipping Weight

9.5 kg
