APC NetShelter Rack PDU Advanced

View all APC Power Strips | Adapters - Visit the APC Store (APDU10350SM) - (ECE8145437)

NetShelter Rack PDU Advanced - Power distribution unit (rack-mountable) - switched metered outlet - AC 400/415 V - 17.3 kW - 17300 VA - 3-phase - Ethernet 10/100/1000 - input: IEC 60309 530P6 - output connectors: 48 (24 x IEC 60320 C13/C15, 24 x IEC 6

Efficient power distribution
Advanced environmental adaptability
Comprehensive network management
Robust safety and compliance

FREE Delivery on orders over €250

0 Available to Ship
Restock 17-Jun-2026 Estimated, Out of Stock Prices are Estimated.

RRP ~~€4766.25~~

€3815.80 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

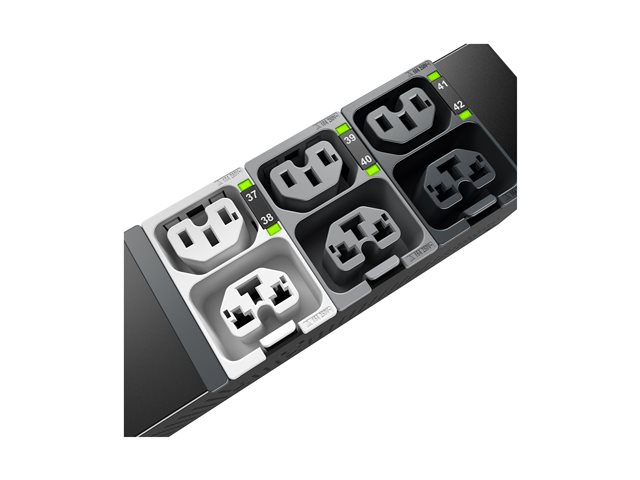

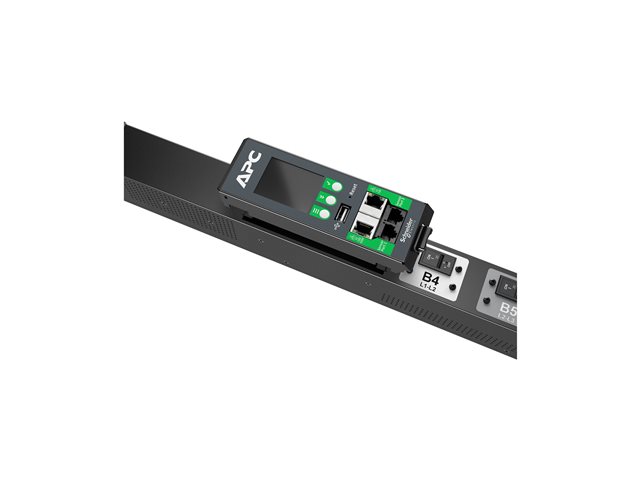

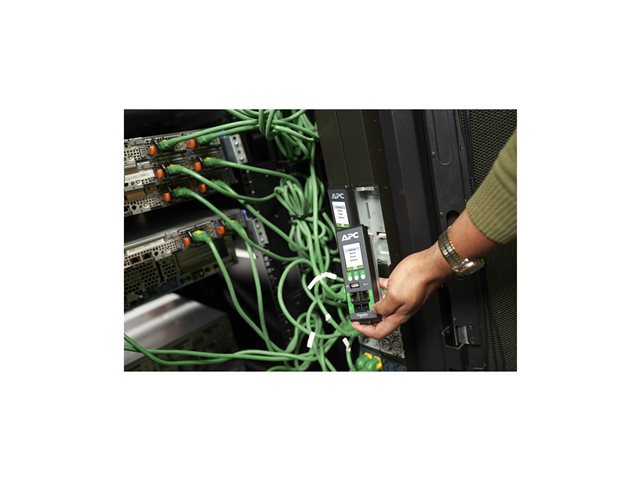

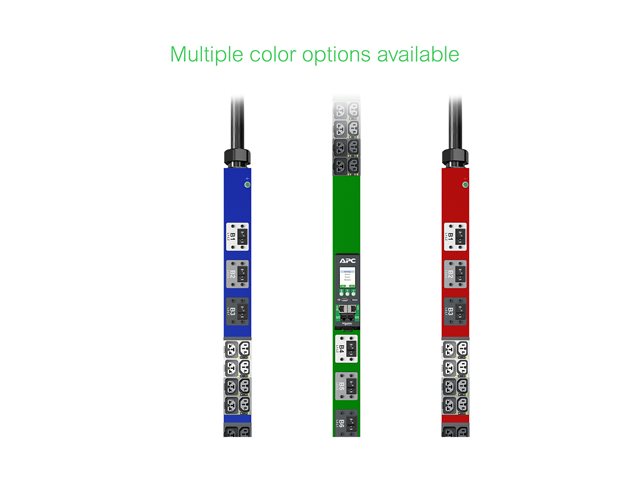

APC NetShelter Rack PDU Advanced provide reliable power distribution to IT Equipment within server and/or networking racks. Switched outlets to turn outlets on or off remotely. Outlet and PDU level power metering for power visibility and notification of potential overload. 4-in-1 combination outlets which can be used as either C13, C19, C15, or C21 outlets provide unparalleled deployment flexibility. Maximum outlet density with 48 outlets in a 2.2" wide form factor. Outlets on the PDUs are color coded and/or labeled by breaker and input phase on 3 phase models to simplify deployment. Provides an alternating phase design whereby each of the 3 phases are organized into small outlet groups which alternate from top to bottom of the PDU to facilitate better power cord management and promote better load balancing. Power Sharing allows PDUs cascaded together via 2 ethernet ports enable an Network Management Card to continue functioning in the event of an AC power loss. No interruption in Network communication, sensors operation, and alarm traps. Live Swap Network Management Card (NMC) which can be replaced without powering down the PDU or connected devices to minimize downtime in the unlikely event of an NMC power event. Rated and approved to operate up to 60C (140F) at full load ensures reliability and availability even in today's high density deployments. Gigabit ethernet to enhance and standardize network connectivity across all assets in the data center. A second ethernet port (10/100) is available to allow cascading to other PDUs, connect to a 2nd private network, or provide network redundancy. 1% metering accuracy for the peace of mind to use NetShelter Rack PDU Advanced to bill based on power usage. In addition, the higher level of accuracy ensures the most precise measures for capacity planning and threshold alarm monitoring. Two environmental sensor ports allow for optional sensors (sold separately) to be connected. For data center deployments across multiple regions, these PDUs are both UL and CE rated providing one PDU that can be used globally to simplify and standardize deployment.

Features Summary

Efficient power distribution
The APC NetShelter Rack PDU Advanced ensures efficient power distribution with a capacity of 17.3 kW, accommodating a wide range of power needs for your equipment. Its 48 output connectors, including types C13, C15, C19, and C21, provide versatile connectivity options.
Advanced environmental adaptability
Designed to operate in a broad range of environmental conditions, this power distribution unit can function optimally in temperatures from -5°C to 60°C and humidity ranges from 5 to 95%, ensuring reliability in various operating environments.
Comprehensive network management
Featuring a Gigabit Ethernet interface for management and SNMP support, this unit allows for efficient remote monitoring and management, ensuring your power distribution is always under control and operating smoothly.
Robust safety and compliance
Adhering to stringent standards including CSA C22.2 No. 62368-1, EN 62368-1, FCC Part 15 Subpart B, UKCA, and UL 62368-1, the APC NetShelter Rack PDU Advanced ensures safety and reliability for your critical infrastructure.

Specification Summary

Product Description

APC NetShelter Rack PDU Advanced - power distribution unit - switched metered outlet - 17.3 kW - 17300 VA

Device Type

Power distribution unit - rack-mountable

Cord Length

1.8 m

Rack Size

Weight

9.6 kg

Input Wiring

3-phase

Input Voltage

AC 400/415 V

Output Voltage

AC 240 V

Power Capacity

17.3 kW / 17300 VA

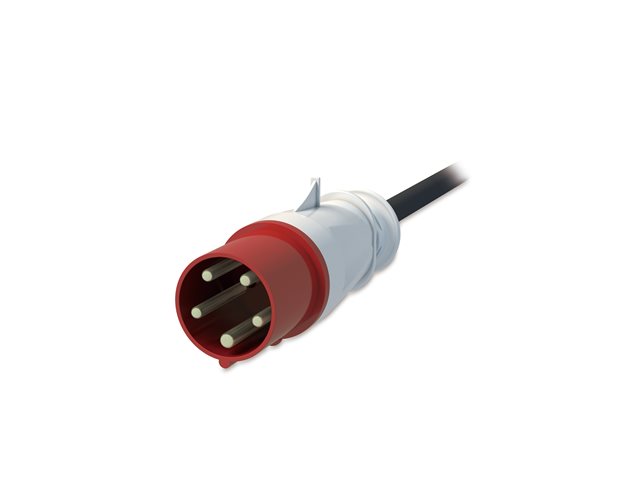

Input Connectors

1 x power IEC 60309 530P6

Output connectors

24 x power IEC 60320 C13/C15/C19/C21 ¦ 24 x power IEC 60320 C13/C15

Networking

Ethernet 10/100/1000

Remote Management Protocol

SNMP

Colour

Black

Dimensions (WxDxH)

5.6 cm x 7.5 cm x 178 cm

Manufacturer Warranty

3-year warranty

Specifications

EAN / GTIN:

731304439745

General

Device Type

Power distribution unit - rack-mountable

Height (Rack Units)

Cord Length

1.8 m

Colour

Black

Power Device

Input Voltage

AC 400/415 V

Input Wiring

3-phase

Frequency Required

50/60 Hz

Input Connectors

1 x power IEC 60309 530P6

Power Output Connectors Details

24 x power IEC 60320 C13/C15/C19/C21 ¦ 24 x power IEC 60320 C13/C15

Output Voltage

AC 240 V

Max Electric Current

30 A

Power Capacity

17.3 kW / 17300 VA

Networking

Remote Management Interface

Ethernet 10/100/1000

Remote Management Protocol

SNMP

Expansion / Connectivity

Interfaces

Management (Gigabit Ethernet) - RJ-45 ¦ Cascading - RJ-45

Miscellaneous

Cables Included

Power cable 1.8 m

Features

Vertical orientation, overload protection, LCD display

Compliant Standards

FCC Part 15 Subpart B, UL 62368-1, EN 62368-1, UKCA, CSA C22.2 No. 62368-1

Manufacturer Warranty

Service & Support

Limited warranty - replace or repair - 3 years

Environmental Parameters

Min Operating Temperature

-5 °C

Max Operating Temperature

60 °C

Humidity Range Operating

5 - 95%

Dimensions & Weight

Width

5.6 cm

Depth

7.5 cm

Height

178 cm

Weight

9.6 kg

Dimensions & Weight (Shipping)

Shipping Width

26.2 cm

Shipping Depth

13.2 cm

Shipping Height

198 cm

Shipping Weight

12.6 kg
